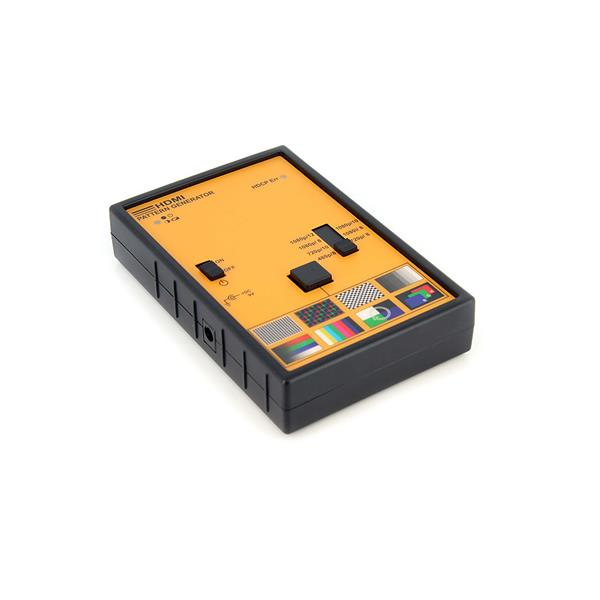

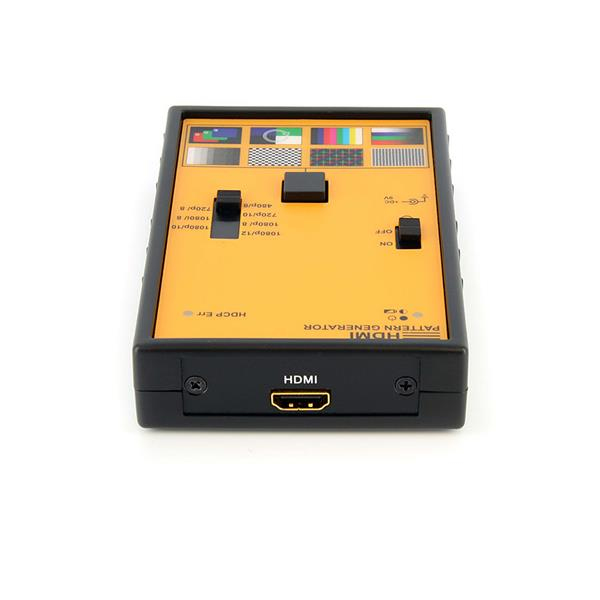

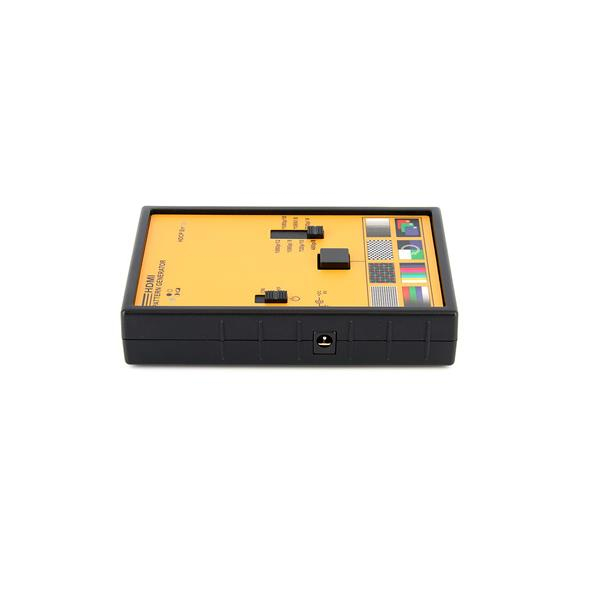

HDMI / DVI Video Test Pattern Signal Generator
Model HDMIPATTERN2EAN 065030841894
22 specifications
- ConnectivityHDMI
- Weight150 g
- ColourBlack, Yellow
- External power adapterYes
- Operating relative humidity (H-H)0 - 95%
- Depth132 mm
Overview
- Connectivity
- HDMI
- Weight
- 150 g
- Colour
- Black, Yellow
- External power adapter
- Yes
- Operating relative humidity (H-H)
- 0 - 95%
- Depth
- 132 mm
- Brand
- StarTech.com
- Category
- Video Test Pattern Generator
- Model
- HDMIPATTERN2
- Part number
- HDMIPATTERN2
- EAN / UPC
- 065030841894
- Also known as
- StarTech.com HDMI / DVI Video Test Pattern Signal Generator
Specifications
22 specifications in 5 groups
Technical details
| Specification | Value |
|---|---|
| Interface | HDMI |
| HDCP | Yes |
| HDCP version | 1.2 |
| High frequency rate | 60 Hz |
| Supported video modes | 1080i, 1080p, 480p, 720p |
| Test modes | 8 |
| Product colour | Black, Yellow |
| Housing material | Plastic |
| LED indicators | Yes |
| On/off switch | Yes |
Power
| Specification | Value |
|---|---|
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 132 mm |
| Height | 28 mm |
| Weight | 150 g |
| Width | 87 mm |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 220 mm |
| Package height | 215 mm |
| Package weight | 820 g |
| Package width | 90 mm |
