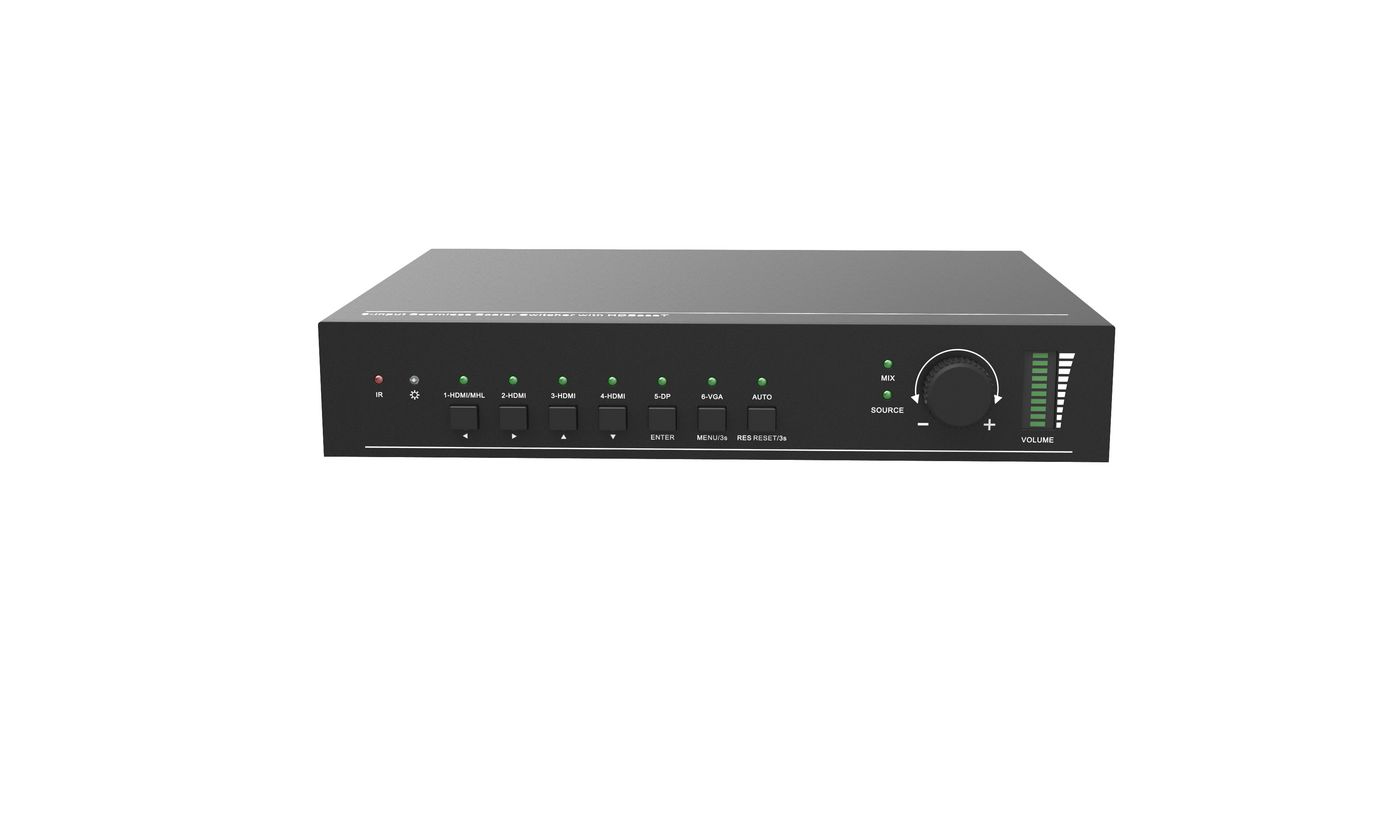

VL120026 video scaler
Model VL120026EAN 5706998944481
23 specifications
- Weight1 kg
- ColourBlack
- HDCP version1.4/2.2
- HDMI in4
- AC adapter input voltage110 - 230 V
- Width302 mm
Overview
- Weight
- 1 kg
- Colour
- Black
- HDCP version
- 1.4/2.2
- HDMI in
- 4
- AC adapter input voltage
- 110 - 230 V
- Width
- 302 mm
- Brand
- Vivolink
- Category
- Video Scaler
- Model
- VL120026
- Part number
- VL120026
- EAN / UPC
- 5706998944481, 5711783380832
- Also known as
- Vivolink VL120026 video scaler

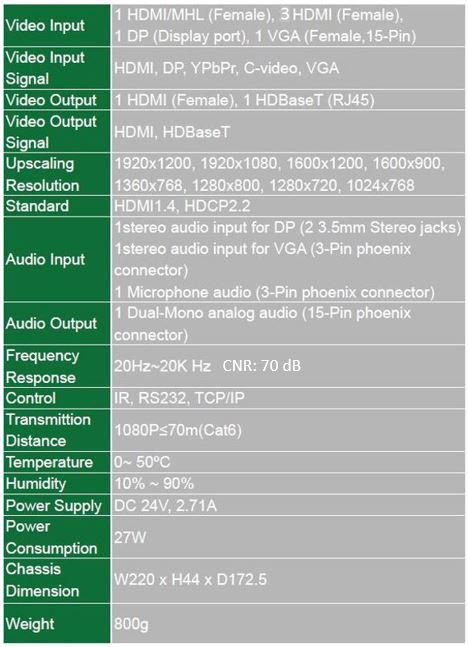

Specifications
23 specifications in 7 groups
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Power |
| Control type | Buttons |
Video
| Specification | Value |
|---|---|
| HDCP version | 1.4/2.2 |

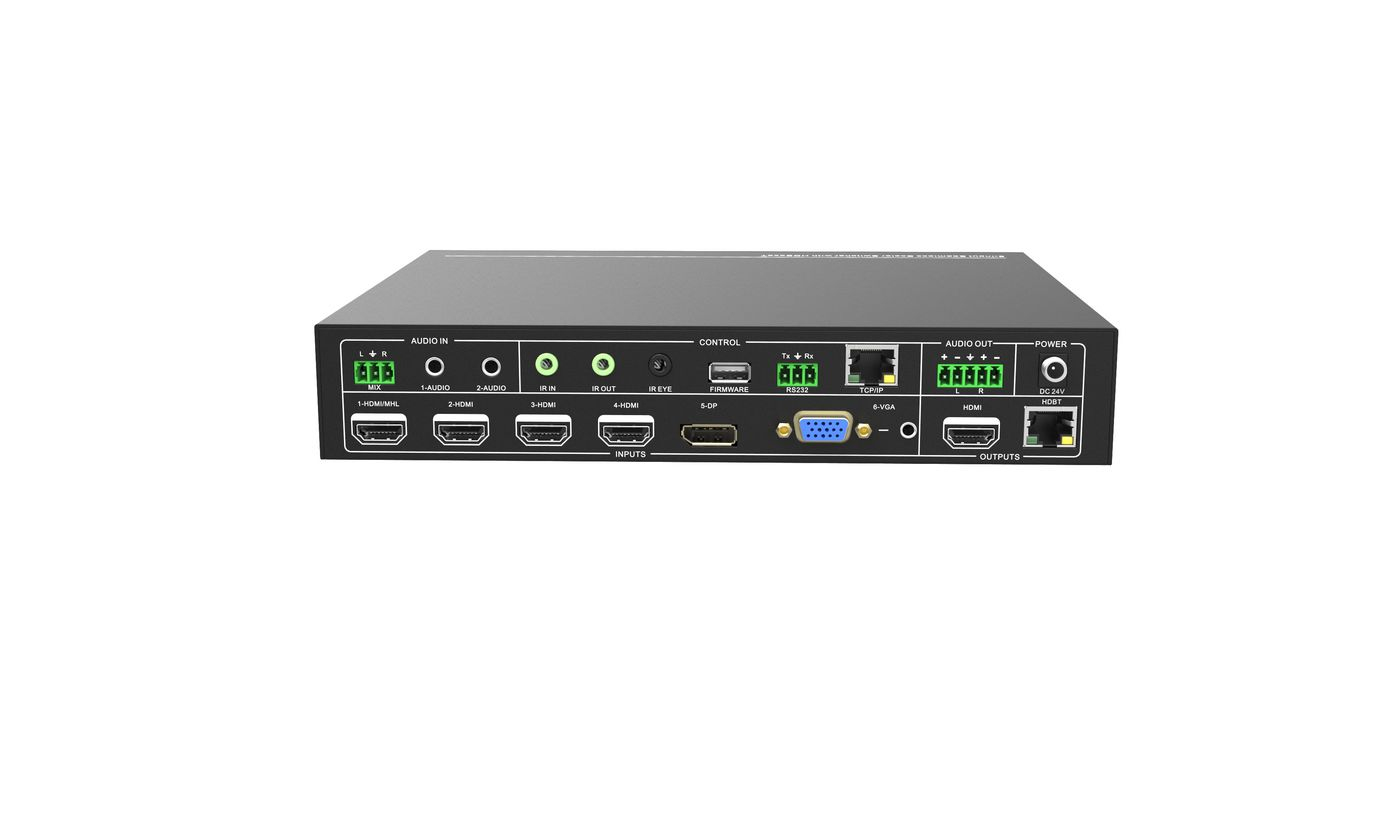

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI in | 4 |
| Number of HDMI outputs | 1 |
| VGA (D-Sub) input ports | 1 |
| Audio input | Yes |
| Audio output | Yes |
| Remote control interface | Yes |
| RS-232 input ports | 1 |
| RJ-45 ports quantity | 2 |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 110 - 230 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 302 mm |
| Depth | 267 mm |
| Height | 144 mm |
| Weight | 1 kg |
Certificates
| Specification | Value |
|---|---|
| Certification | HDBaseT |
Packaging data
| Specification | Value |
|---|---|
| Package width | 302 mm |
| Package depth | 267 mm |
| Package height | 144 mm |
| Package weight | 2.26 kg |
