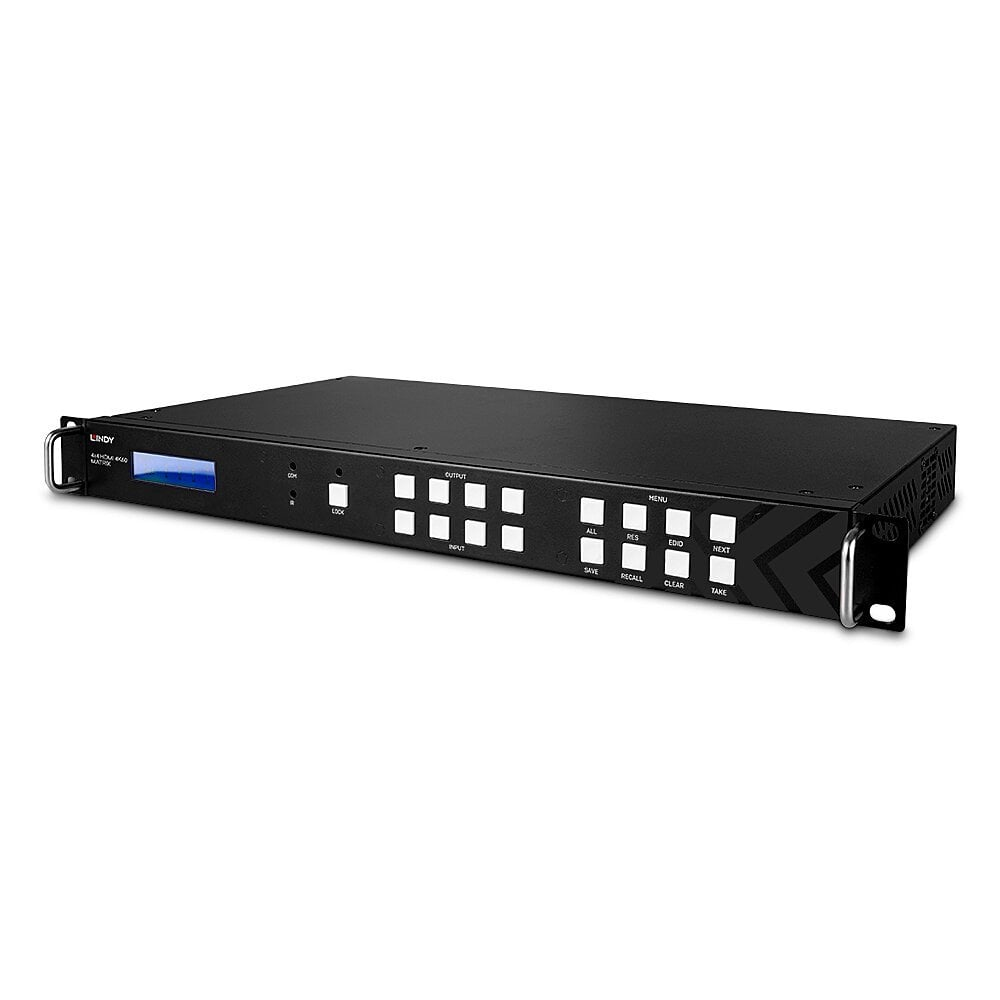

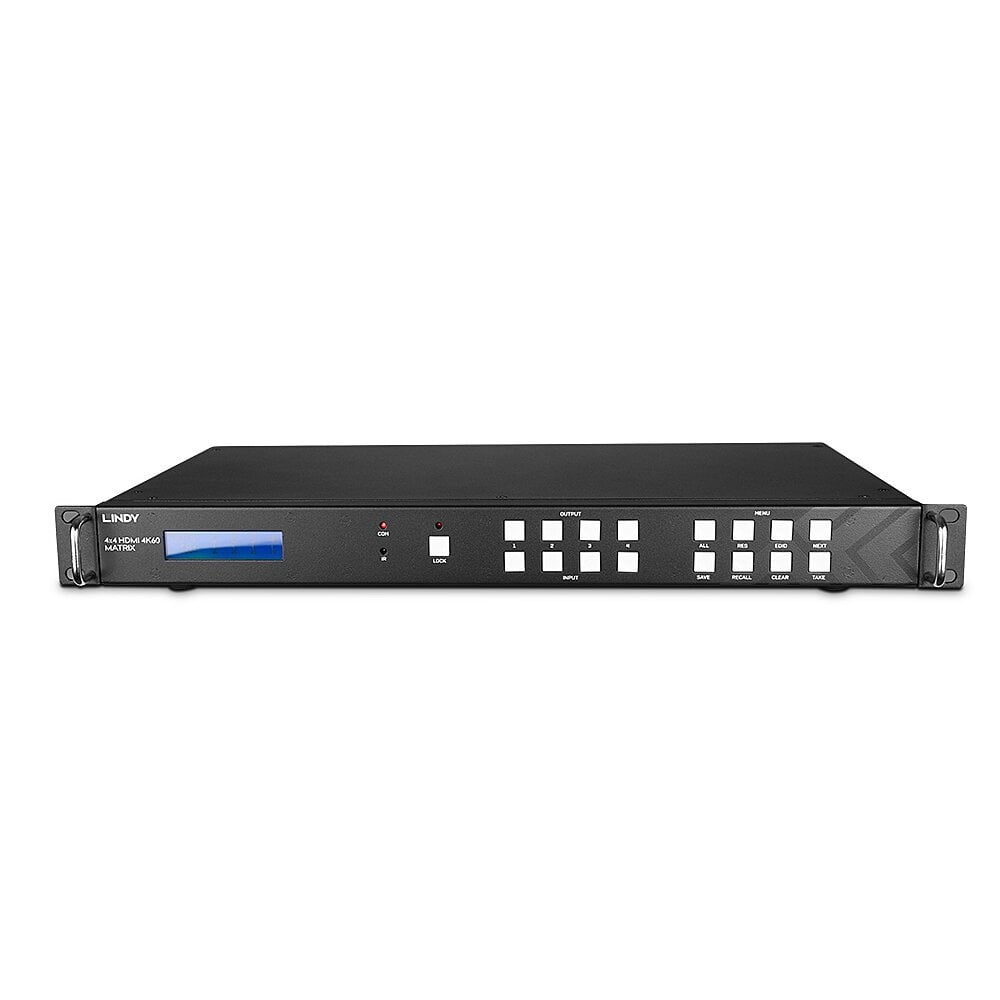

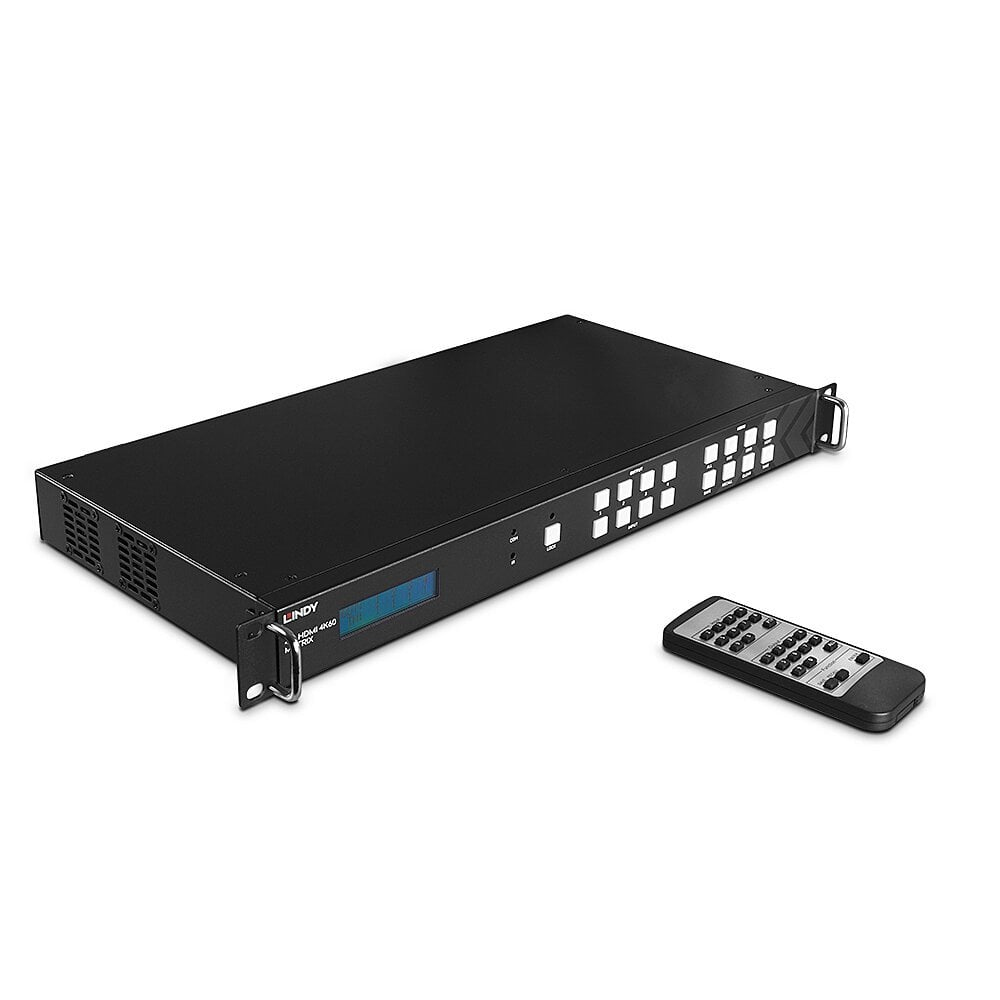

4x4 HDMI 4K60 Matrix with Video Wall Scaling
Model 38238EAN 4002888382380
33 specifications
- Weight3.18 kg
- ColourBlack
- Scaled resolutions3840 x 2160
- HDCPYes
- HDMI in4
- AC adapter input voltage100 - 240 V
Overview
- Weight
- 3.18 kg
- Colour
- Black
- Scaled resolutions
- 3840 x 2160
- HDCP
- Yes
- HDMI in
- 4
- AC adapter input voltage
- 100 - 240 V
- Brand
- Lindy
- Category
- Video Scaler
- Model
- 38238
- Part number
- 38238
- EAN / UPC
- 4002888382380
- Also known as
- Lindy 4x4 HDMI 4K60 Matrix with Video Wall Scaling
Specifications
33 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Scaled resolutions | 3840 x 2160 |
| Product colour | Black |
| Housing material | Metal |
| Built-in display | Yes |
| Display type | LED |
| EDID management | Yes |
| LED indicators | Yes |
| Control type | Buttons |
Video
| Specification | Value |
|---|---|
| HDCP | Yes |
| HDCP version | 1.4 |

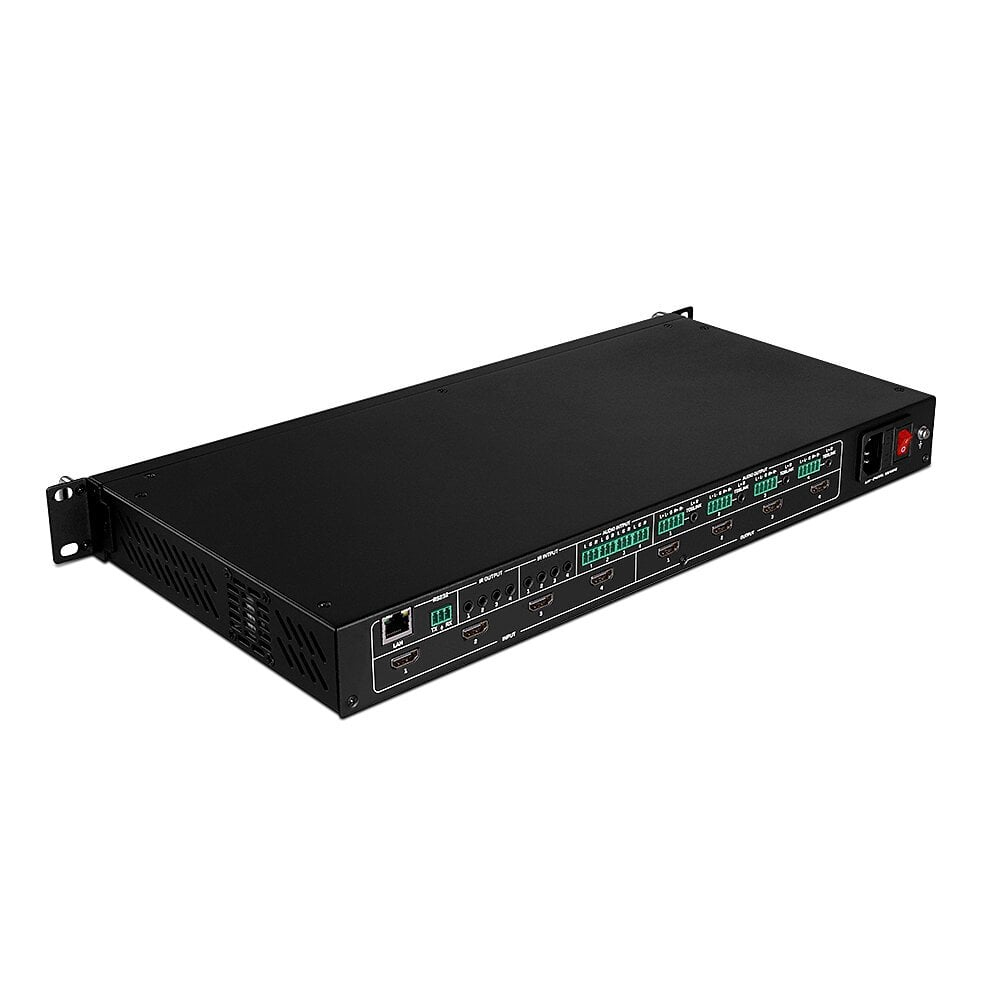

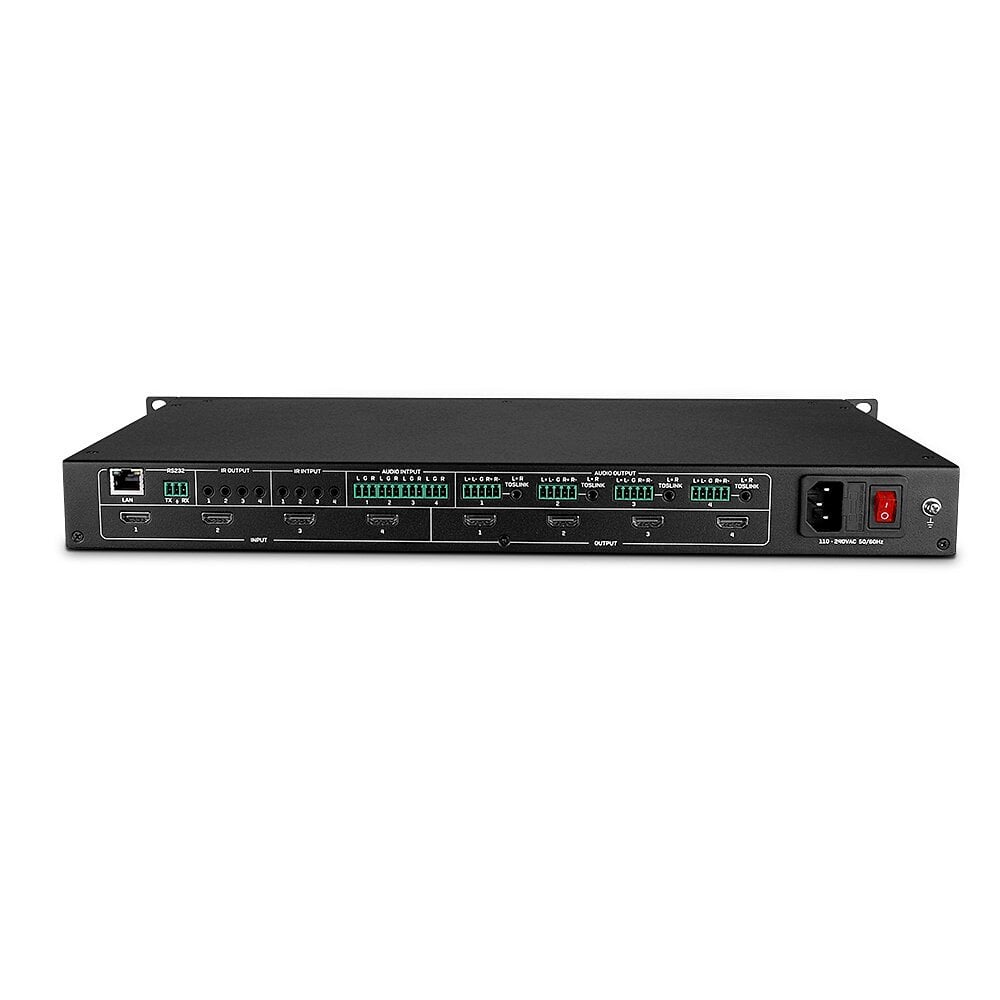

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI in | 4 |
| Number of HDMI outputs | 4 |
| HDMI version | 2.0 |
| Audio output | 4 |
| RS-232 input ports | 1 |
| RJ-45 ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| Power consumption (max) | 60 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 430 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 3.18 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS, UKCA |
| Sustainability compliance | Yes |
| Warranty period | 2 year(s) |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 50% |
Packaging data
| Specification | Value |
|---|---|
| Package width | 565 mm |
| Package depth | 83 mm |
| Package height | 413 mm |
| Package weight | 5 kg |
| Package type | Box |
