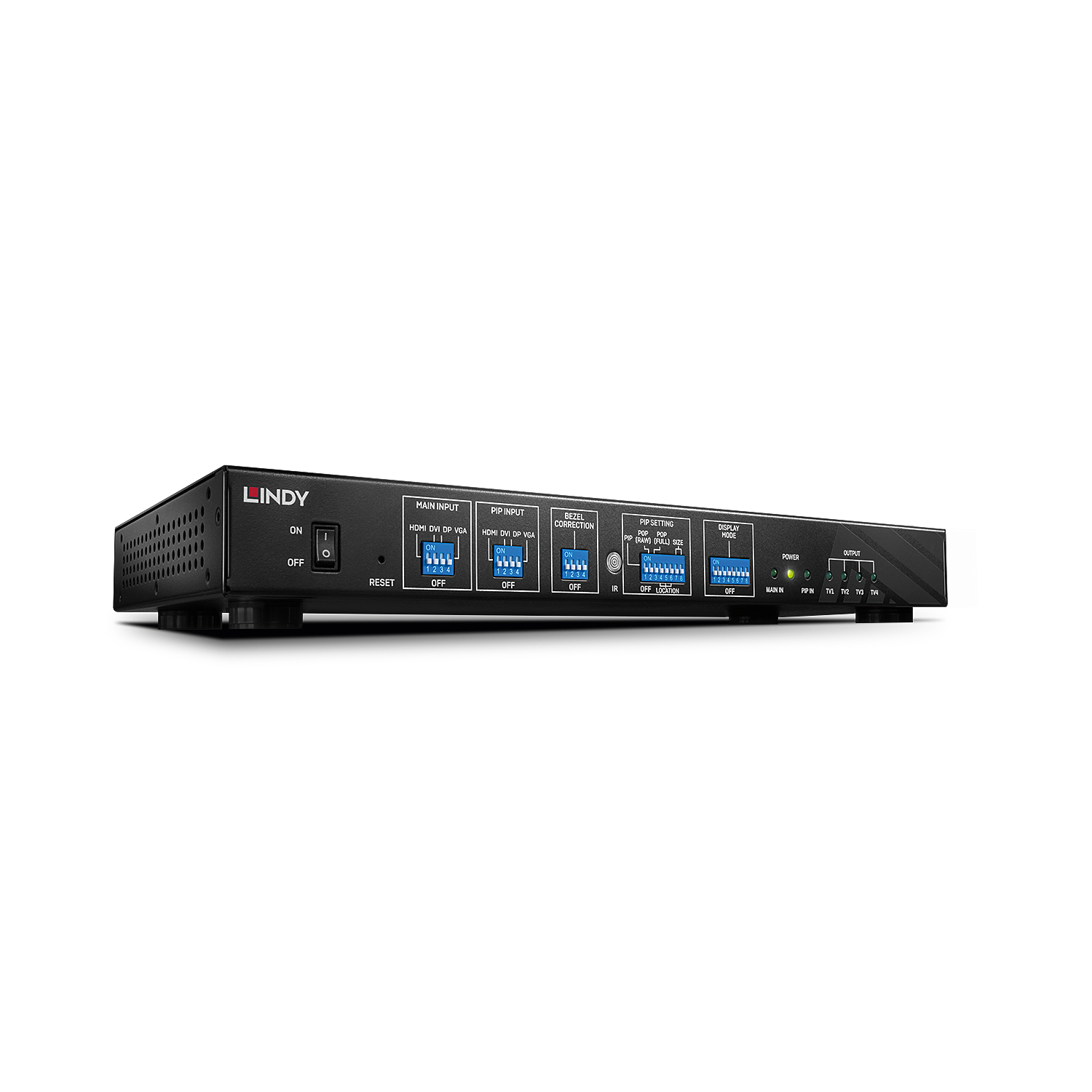

38161 video scaler
Model 38161EAN 4002888381611
27 specifications
- Weight1.87 kg
- ColourBlack
- Scaled resolutions1920 x 1080, 3840 x 2160
- HDCPYes
- HDMI in1
- Width346 mm
Overview
- Weight
- 1.87 kg
- Colour
- Black
- Scaled resolutions
- 1920 x 1080, 3840 x 2160
- HDCP
- Yes
- HDMI in
- 1
- Width
- 346 mm
- Brand
- Lindy
- Category
- Video Scaler
- Model
- 38161
- Part number
- 38161
- EAN / UPC
- 4002888381611
- Also known as
- Lindy 38161 video scaler
Specifications
27 specifications in 8 groups
Features
| Specification | Value |
|---|---|
| Scaled resolutions | 1920 x 1080, 3840 x 2160 |
| Product colour | Black |
| Housing material | Metal |
| On/off switch | Yes |
| LED indicators | Yes |
Video
| Specification | Value |
|---|---|
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |
| HDCP | Yes |
| HDCP version | 1.4 |

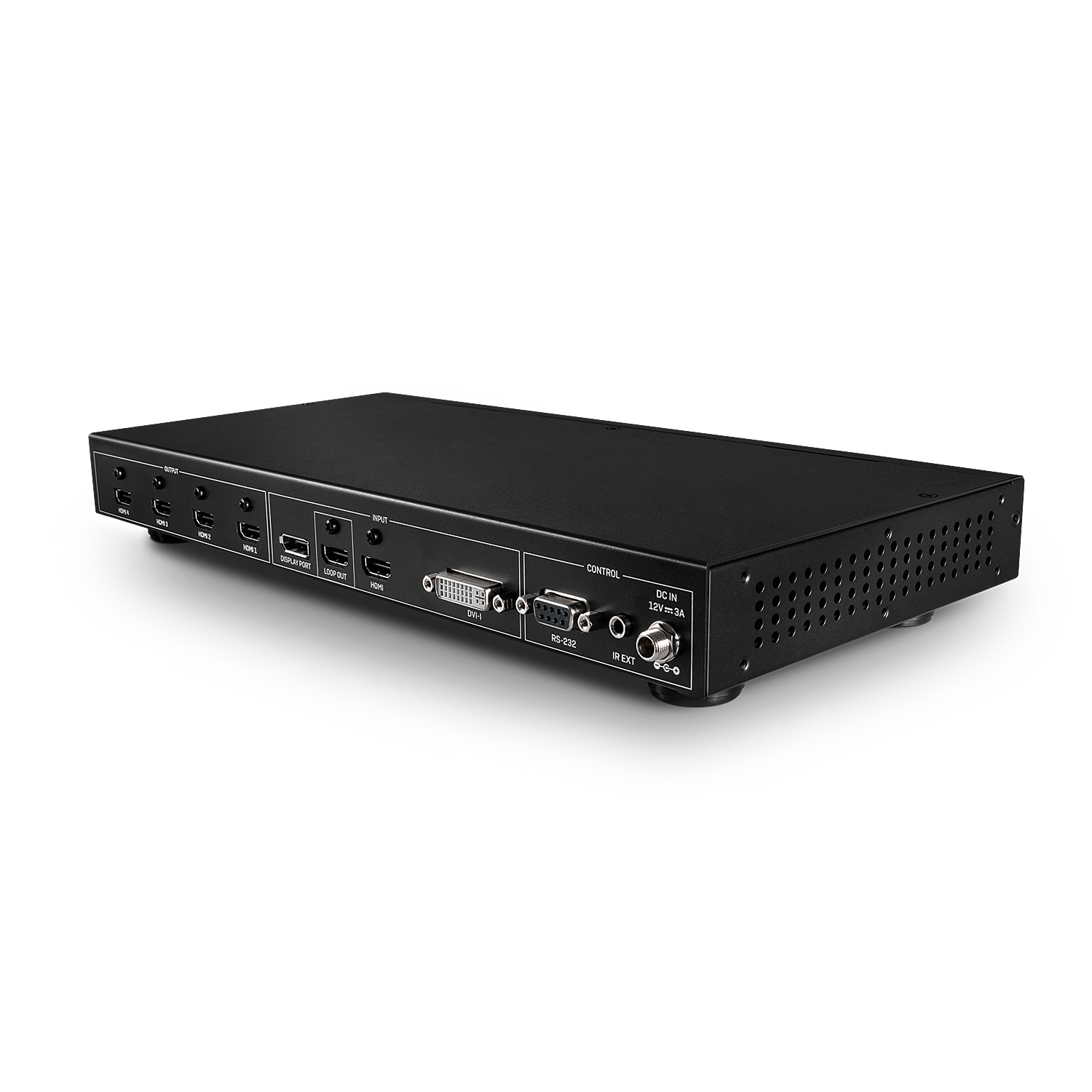

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI in | 1 |
| Number of HDMI outputs | 5 |
| HDMI version | 1.4 |
| DVI-I ports quantity | 1 |
| RS-232 input ports | 1 |
| DisplayPorts quantity | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 346 mm |
| Depth | 171 mm |
| Height | 45 mm |
| Weight | 1.87 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 20 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, FCC, REACH |
Packaging data
| Specification | Value |
|---|---|
| Package width | 436 mm |
| Package depth | 275 mm |
| Package height | 90 mm |
| Package weight | 2.44 kg |
