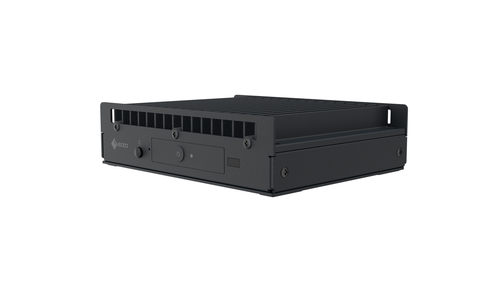

DuraVision DX0212-IP
Model DuraVision DX0212-IPPart no. DX0212-IPEAN 690592057720
25 specifications
- Weight770 g
- ColourBlack
- Channels quantity48 channels
- Ethernet LAN data rates100,1000 Mbit/s
- Number of HDMI outputs2
- Power over Ethernet (PoE)Yes
Overview
- Weight
- 770 g
- Colour
- Black
- Channels quantity
- 48 channels
- Ethernet LAN data rates
- 100,1000 Mbit/s
- Number of HDMI outputs
- 2
- Power over Ethernet (PoE)
- Yes
- Brand
- EIZO
- Category
- Video Decoder
- Model
- DuraVision DX0212-IP
- Part number
- DX0212-IP
- EAN / UPC
- 690592057720, 4995047064695
- Also known as
- EIZO DuraVision DX0212-IP 48 channels 3840 x 2160 pixels
Specifications
25 specifications in 8 groups
Performance
| Specification | Value |
|---|---|
| Channels quantity | 48 channels |
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 60 fps |
| PTZ control | Yes |
| Video formats supported | H.264, H.265, MPEG, MPEG2 |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Certification | CB, CE, UKCA, cTUVus, FCC-A, CAN ICES-3 (A), VCCI-A, RCM, RoHS, WEEE, BIS, India RoHS |
Network
| Specification | Value |
|---|---|
| Ethernet LAN data rates | 100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseE-T(X) |
| Networking standards | IEEE 802.3at |
| Supported network protocols | DHCP, DNS, HTTP, HTTPS, LDAP, LDAPS, NTP, RTP, RTSP, SNMP, SRT, SRTP, IEEE802.1X |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of HDMI outputs | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 1 |
Power
| Specification | Value |
|---|---|
| Power over Ethernet (PoE) | Yes |
| AC adapter power | 21.5 W |
| Power consumption (max) | 25.5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 165 mm |
| Depth | 130 mm |
| Height | 44.2 mm |
| Weight | 770 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | HDMI |
| Manual | Yes |
