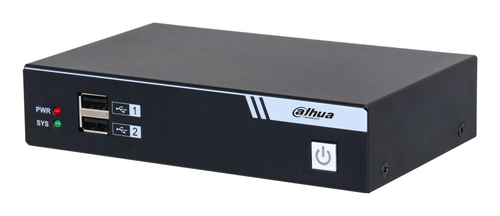

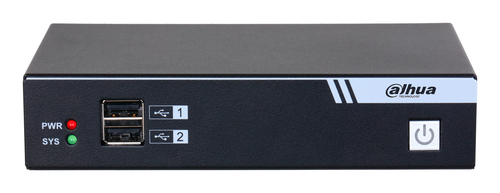

NVD0200FX-A01 video decoder 2 channels
1920 x 1080 pixels
Model NVD0200FX-A01EAN 6923172572332
34 specifications
- OSEmbedded LINUX
- Weight300 g
- ColourBlack
- Channels quantity2 channels
- Ethernet interface typeGigabit Ethernet
- Number of HDMI outputs2
Overview
- OS
- Embedded LINUX
- Weight
- 300 g
- Colour
- Black
- Channels quantity
- 2 channels
- Ethernet interface type
- Gigabit Ethernet
- Number of HDMI outputs
- 2
- Brand
- Dahua Technology
- Category
- Video Decoder
- Model
- NVD0200FX-A01
- Part number
- NVD0200FX-A01
- EAN / UPC
- 6923172572332
- Also known as
- Dahua Technology NVD0200FX-A01 video decoder 2 channels 1920 x 1080 pixels
Specifications
34 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Channels quantity | 2 channels |
| Maximum video resolution | 1920 x 1080 pixels |
| Maximum frame rate | 60 fps |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 1024 (SXGA), 1920 x 1080 (HD 1080) |
| Operating system installed | Embedded LINUX |
| Built-in processor | Yes |
| Video formats supported | H.265, H.264 |
| Audio formats supported | PCM |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| On/off switch | Yes |
| LED indicators | System, Power |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Ports & interfaces
| Specification | Value |
|---|---|
| Number of HDMI outputs | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| Audio connector type | HDMI + 3.5mm |
| RS-232 ports | 1 |
| DC-in jack | Yes |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100–240 |
| AC adapter frequency | 50/60 Hz |
| AC adapter output voltage | 12 V |
| Power consumption (max) | 24 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 92 mm |
| Depth | 150 mm |
| Height | 32.8 mm |
| Weight | 300 g |
| Package width | 163 mm |
| Package depth | 297 mm |
| Package height | 71 mm |
| Package weight | 500 g |
