NVD0605DH-4I-4K video decoder
3840 x 2160 pixels
Model NVD0605DH-4I-4K
31 specifications
- OSEmbedded LINUX
- Weight4.8 kg
- ColourBlack
- Alarm input channels4
- Ethernet interface typeGigabit Ethernet
- Number of HDMI outputs6
Overview
- OS
- Embedded LINUX
- Weight
- 4.8 kg
- Colour
- Black
- Alarm input channels
- 4
- Ethernet interface type
- Gigabit Ethernet
- Number of HDMI outputs
- 6
- Brand
- Dahua Technology
- Category
- Video Decoder
- Model
- NVD0605DH-4I-4K
- Part number
- NVD0605DH-4I-4K
- Also known as
- Dahua Technology NVD0605DH-4I-4K video decoder 3840 x 2160 pixels
Specifications
31 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Alarm input channels | 4 |
| Alarm output channels | 4 |
| Maximum video resolution | 3840 x 2160 pixels |
| Maximum frame rate | 25 fps |
| Resolution at capture speed | 3840x2160@200fps |
| Supported graphics resolutions | 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported video modes | 720p, 768p, 1024p, 1080p, 1600p, 2160p |
| Operating system installed | Embedded LINUX |
| Built-in processor | Yes |
| Video formats supported | H.264, H.265, MPEG2, MPEG4 |
| Audio formats supported | AAC, G.711, PCM |
Features
| Specification | Value |
|---|---|
| Product colour | Black |
| Rack mounting | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseE-T(X) |
| Network bandwidth | 1000 Mbit/s |

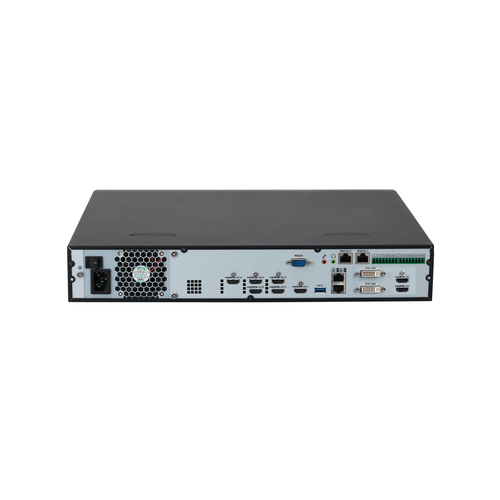

Ports & interfaces
| Specification | Value |
|---|---|
| Number of HDMI outputs | 6 |
| Ethernet LAN (RJ-45) ports | 2 |
| Audio connector type | 3.5 mm (1/8") |
| RS-232 ports | 3 |
| RS-485 ports | 1 |
Power
| Specification | Value |
|---|---|
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| Power consumption (max) | 70 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 440 mm |
| Depth | 70 mm |
| Height | 408 mm |
| Weight | 4.8 kg |
