Viewsonic SC-T45 Thin Client
1.87 GHz Windows Embedded Standard 7 500 g Black N2800
Model SC-T45
59 specifications
- ProcessorIntel Atom®
- Memory2 GB
- Storage4 GB
- OSWindows Embedded Standard 7
- Weight500 g
- ColourBlack
Overview
- Processor
- Intel Atom®
- Memory
- 2 GB
- Storage
- 4 GB
- OS
- Windows Embedded Standard 7
- Weight
- 500 g
- Colour
- Black
- Brand
- Viewsonic
- Category
- Thin Client
- Model
- SC-T45
- Part number
- SC-T45
- Also known as
- Viewsonic SC-T45 Thin Client 1.87 GHz Windows Embedded Standard 7 500 g Black N2800
Specifications
59 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 1.87 GHz |
| Processor family | Intel Atom® |
| Processor model | N2800 |
| Processor cores | 2 |
| L2 cache | 1 MB |
| Motherboard chipset | Intel® NM10 Express |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR3-SDRAM |
| Memory clock speed | 1066 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 4 GB |
| Storage media | Flash |
| Card reader integrated | No |
| Compatible memory cards | Not supported |
Graphics
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Bluetooth | No |
| Wake-on-LAN ready | Yes |
| Supported protocols | Citrix ICA/HDX 13.1 , VMware View 5.01, Microsoft RDP 8.0 with RemoteFX, PCoIP |

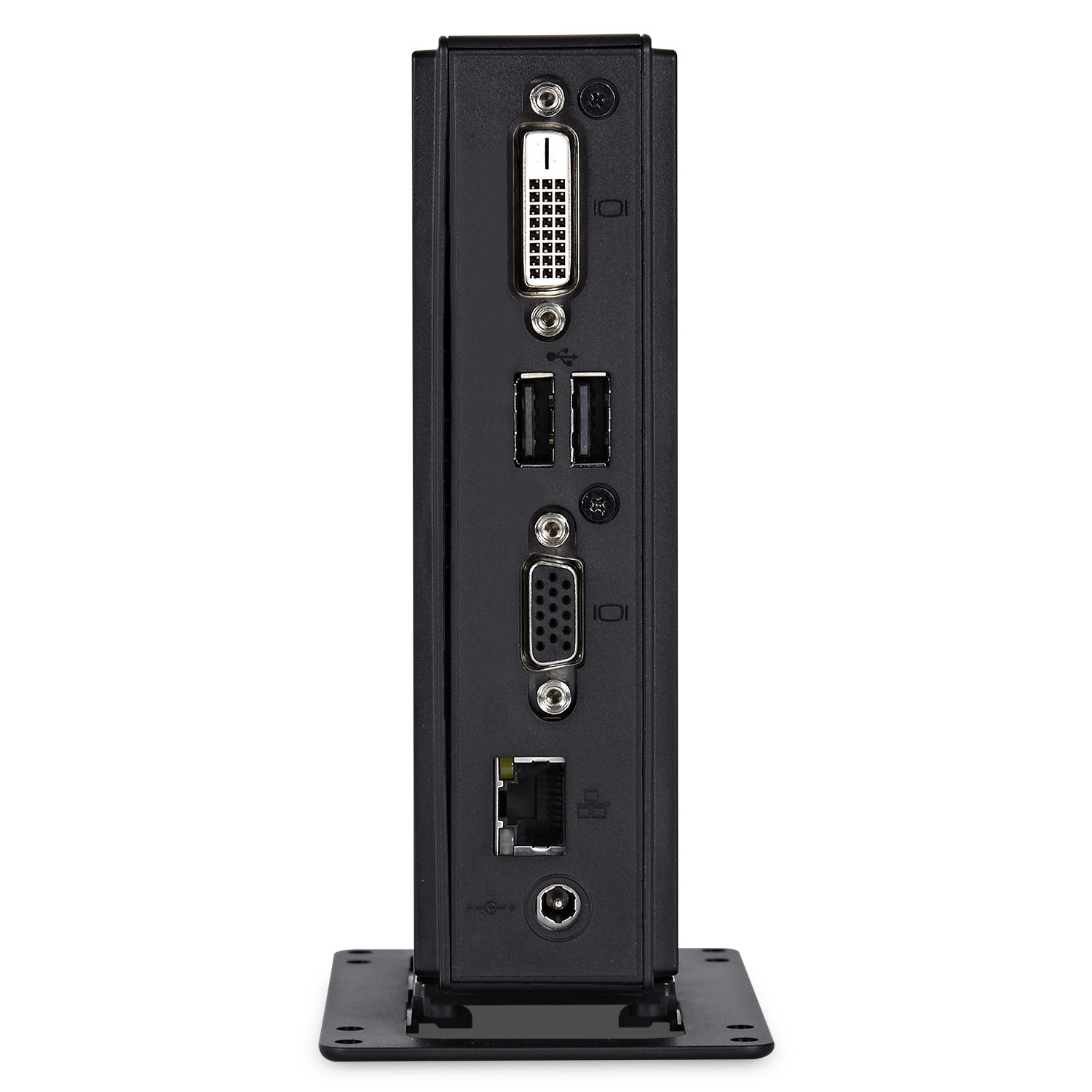

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| S/PDIF out port | No |
| DC-in jack | Yes |
| DisplayPorts quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-I ports quantity | 0 |
| DVI-D ports quantity | 1 |
| Parallel ports quantity | 0 |
| Serial ports quantity | 0 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Panel mounting interface | 100 x 100 mm |
Display
| Specification | Value |
|---|---|
| Display included | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Embedded Standard 7 |
| Bundled software | ViewSonic Device Manager ViewSonic Client Setup |
Power
| Specification | Value |
|---|---|
| Power supply | 36 W |
| AC input voltage | 12 V |
| Power consumption (typical) | 14 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Certificates
| Specification | Value |
|---|---|
| Certification | FCC/NRTL, WEEE, REACH |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | EPEAT Silver, ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 39.5 mm |
| Depth | 103 mm |
| Height | 143 mm |
| Weight | 500 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 200 mm |
| Package depth | 157 mm |
| Package height | 128 mm |
| Package weight | 1.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| External power adapter | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
