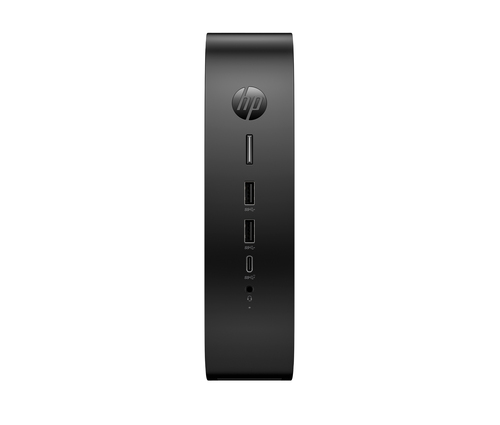

Elite t755 RE-V2546 16GB/256GB W10
Model Elite t755 RE-V2546 16GB/256GB W10Part no. 9J5D2AA#UUGEAN 197961672725
63 specifications
- ProcessorAMD Ryzen Embedded
- Memory16 GB
- Storage256 GB
- SpeedWi-Fi 6 (802.11ax)
- OSWindows 10 IoT Enterprise
- Weight1.4 kg
Overview
- Processor
- AMD Ryzen Embedded
- Memory
- 16 GB
- Storage
- 256 GB
- Speed
- Wi-Fi 6 (802.11ax)
- OS
- Windows 10 IoT Enterprise
- Weight
- 1.4 kg
- Brand
- HP
- Category
- Thin Client
- Model
- Elite t755 RE-V2546 16GB/256GB W10
- Part number
- 9J5D2AA#UUG
- EAN / UPC
- 197961672725
- Also known as
- HP Elite t755 RE-V2546 16GB/256GB W10 3 GHz Windows 10 IoT Enterprise 1.4 kg Black
Specifications
63 specifications in 17 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 3 GHz |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen Embedded |
| Processor generation | AMD Ryzen Embedded V2000 Series |
| Processor model | V2546 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor boost frequency | 3.9 GHz |
| Processor cache | 8 MB |
| L2 cache | 3 MB |
| L3 cache | 8 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Number of storage drives installed | 1 |
| Storage drive interface | PCI Express |
| Storage drive size | M.2 |
| NVMe | Yes |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| On-board GPU manufacturer | AMD |
| On-board graphics card model | AMD Radeon Graphics |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Realtek |
| WLAN controller model | Realtek RTL8852BE |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Type-C ports quantity | 1 |
| Combo headphone/mic port | Yes |
| DisplayPorts quantity | 4 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Display included | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 IoT Enterprise |
Power
| Specification | Value |
|---|---|
| Power supply | 90 W |
Certificates
| Specification | Value |
|---|---|
| Country of origin | China, Mexico |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, EPEAT, TCO10 |
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50 mm |
| Depth | 210 mm |
| Height | 210 mm |
| Weight | 1.4 kg |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| Keyboard connectivity | Wired |
| Mouse connectivity | Wired |
Other features
| Specification | Value |
|---|---|
| Support service included | HP 3 Year Offsite Hardware Support. |
| UNSPSC-code | 43211506 |
