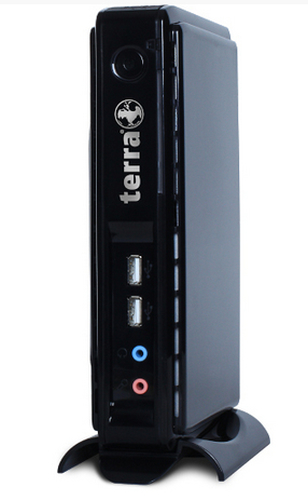

TERRA 3100 1.8 GHz Windows 7 Embedded Black D525
Model 3100Part no. 1201160
32 specifications
- ProcessorIntel Atom®
- Memory2 GB
- OSWindows 7 Embedded
- ColourBlack
- Processor frequency1.8 GHz
- Card reader integratedYes
Overview
- Processor
- Intel Atom®
- Memory
- 2 GB
- OS
- Windows 7 Embedded
- Colour
- Black
- Processor frequency
- 1.8 GHz
- Card reader integrated
- Yes
- Brand
- TERRA
- Category
- Thin Client
- Model
- 3100
- Part number
- 1201160
- Also known as
- TERRA 3100 1.8 GHz Windows 7 Embedded Black D525
Specifications
32 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 1.8 GHz |
| Processor family | Intel Atom® |
| Processor model | D525 |
| L2 cache | 1 MB |
| Motherboard chipset | Intel® NM10 Express |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 4 GB |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | Memory Stick (MS), MS PRO, SD, SDHC |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 512 MB |
Audio
| Specification | Value |
|---|---|
| Number of built-in speakers | 1 |
Network
| Specification | Value |
|---|---|
| Wake-on-LAN ready | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 5 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Display included | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Embedded |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 40 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 35 °C |
Certificates
| Specification | Value |
|---|---|
| Certification | RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7, Windows XP, Linux |
| Dimensions (W x D x H) with stand | 100.4 x 252 x 185 mm |
| Dimensions (WxDxH) | 38.5 x 252 x 162 mm |
| Graphics card family | NVIDIA |
| Networking features | Gigabit Ethernet |
| Operating system version | SP1 |
| Power requirements | 100-240V AC, 50-60Hz |
