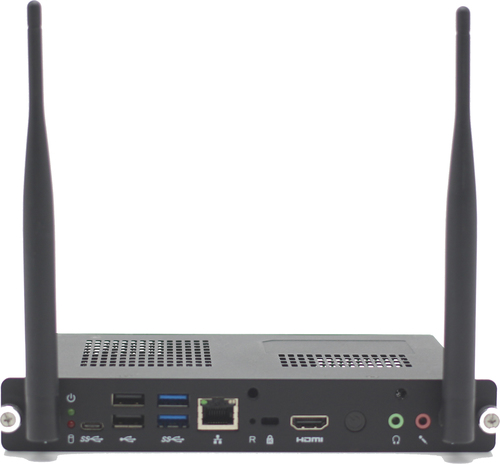

PCM8-i7 vPro
Model PCM8-i7 vProPart no. UGK-PCM8-I7VEAN 628012400733
35 specifications
- ProcessorIntel® Core™ i7
- Memory8 GB
- Storage128 GB
- OSWindows 10 Pro
- Weight910 g
- ColourBlack
Overview
- Processor
- Intel® Core™ i7
- Memory
- 8 GB
- Storage
- 128 GB
- OS
- Windows 10 Pro
- Weight
- 910 g
- Colour
- Black
- Brand
- SMART Technologies
- Category
- Thin Client
- Model
- PCM8-i7 vPro
- Part number
- UGK-PCM8-I7V
- EAN / UPC
- 628012400733, 5415247234043
- Also known as
- SMART Technologies PCM8-i7 vPro Windows 10 Pro 910 g Black i7-8650U
Specifications
35 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i7 |
| Processor model | i7-8650U |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 128 GB |
| Storage media | SSD |
| Storage drive interface | M.2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Intel® HD Graphics 620 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Dual Band Wireless-AC 8265 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB Type-C ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cable lock slot type | Kensington |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 Pro |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 35 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 130 mm |
| Height | 30 mm |
| Weight | 910 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
