t740 Bundle
Model t740 BundlePart no. 5H0Y1EAEAN 197961744026
48 specifications
- ProcessorAMD Ryzen Embedded
- Memory16 GB
- Storage256 GB
- OSThinPro
- Weight1.33 kg
- ColourBlack
Overview
- Processor
- AMD Ryzen Embedded
- Memory
- 16 GB
- Storage
- 256 GB
- OS
- ThinPro
- Weight
- 1.33 kg
- Colour
- Black
- Brand
- HP
- Category
- Thin Client
- Model
- t740 Bundle
- Part number
- 5H0Y1EA
- EAN / UPC
- 197961744026
- Also known as
- HP t740 Bundle 3.25 GHz ThinPro 1.33 kg Black V1756B
Specifications
48 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 3.25 GHz |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen Embedded |
| Processor generation | AMD Ryzen Embedded V1000 Series |
| Processor model | V1756B |
| Processor cores | 4 |
| Processor threads | 4 |
| Processor boost frequency | 3.6 GHz |
| Processor cache | 4 MB |
| L2 cache | 2 MB |
| L3 cache | 4 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 16 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 3200 MHz |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 2 x 8 GB |
| Maximum internal memory | 32 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 256 GB |
| Storage media | SSD |
| Storage drive interface | PCI Express |
| Storage drive size | M.2 |
| NVMe | Yes |
| SSD form factor | M.2 |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | AMD Radeon Vega 8 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |

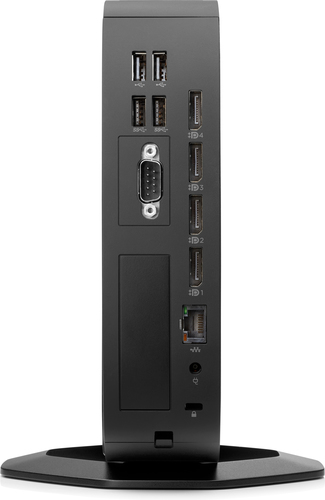

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB Type-C ports quantity | 2 |
| Combo headphone/mic port | Yes |
| DisplayPorts quantity | 4 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Display included | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | ThinPro |
Power
| Specification | Value |
|---|---|
| Power supply | 90 W |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 50 mm |
| Depth | 210 mm |
| Height | 210 mm |
| Weight | 1.33 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
| Keyboard connectivity | Wired |
| Mouse connectivity | Wired |
Other features
| Specification | Value |
|---|---|
| Keyboard type | USB |
