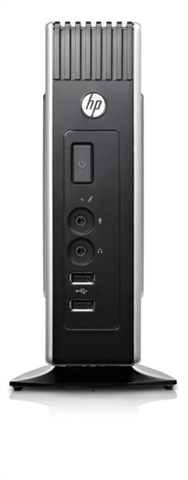

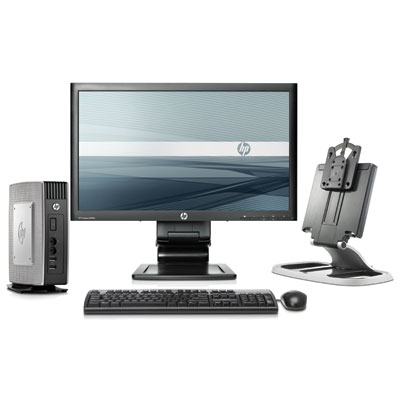

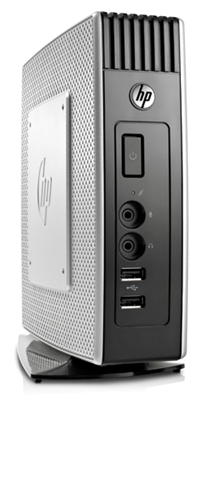

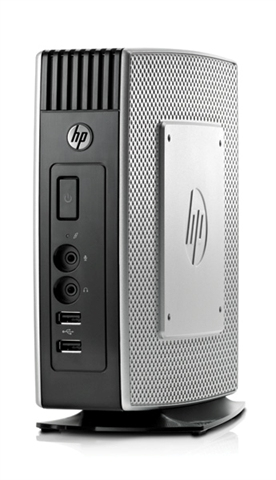

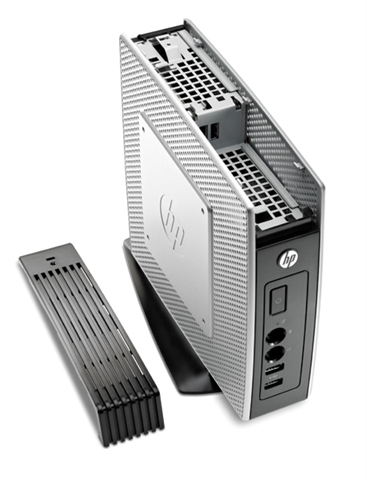

t5565 + IWC + LA2306x
Model t5565 + IWC + LA2306xPart no. BXR248AT1
44 specifications
- Display58.4 cm (23")
- Resolution1920 x 1080 pixels
- ProcessorVIA Nano
- Memory1 GB
- Storage1 GB
- OSThinPro
Overview
- Display
- 58.4 cm (23")
- Resolution
- 1920 x 1080 pixels
- Processor
- VIA Nano
- Memory
- 1 GB
- Storage
- 1 GB
- OS
- ThinPro
- Brand
- HP
- Category
- Thin Client
- Model
- t5565 + IWC + LA2306x
- Part number
- BXR248AT1
- Also known as
- HP t5565 + IWC + LA2306x 1 GHz ThinPro 1.36 kg Black U3500
Specifications
44 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 1 GHz |
| Processor family | VIA Nano |
| Processor model | U3500 |
| Processor front side bus | 800 MHz |
| L2 cache | 0.512 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 1 GB |
| Internal memory type | DDR3-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 1 GB |
| Storage media | Flash |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | VIA ChromotionHD 2.0 |
| Maximum graphics card memory | 128 MB |
Audio
| Specification | Value |
|---|---|
| Audio system | 24-bit stereo |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|

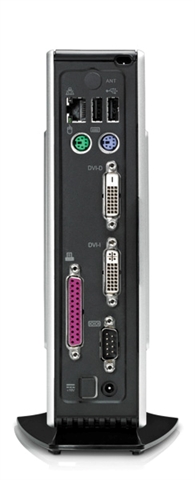

| VGA (D-Sub) ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 6 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DVI-I ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
| PS/2 ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display diagonal | 58.4 cm (23") |
| Display resolution | 1920 x 1080 pixels |
Software
| Specification | Value |
|---|---|
| Operating system installed | ThinPro |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Certificates
| Specification | Value |
|---|---|
| Country of origin | China |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 58.4 mm |
| Depth | 215.9 mm |
| Height | 209.5 mm |
| Width (without stand) | 58.4 mm |
| Depth (without stand) | 215.9 mm |
| Height (without stand) | 219.7 mm |
| Weight | 1.36 kg |
