t540 1.5 GHz ThinPro 1.4 kg Black R1305G
Model t540Part no. 526B9AA#ABHEAN 195122599515
49 specifications
- ProcessorAMD Ryzen Embedded
- Memory8 GB
- Storage32 GB
- OSThinPro
- Weight1.4 kg
- ColourBlack
Overview
- Processor
- AMD Ryzen Embedded
- Memory
- 8 GB
- Storage
- 32 GB
- OS
- ThinPro
- Weight
- 1.4 kg
- Colour
- Black
- Brand
- HP
- Category
- Thin Client
- Model
- t540
- Part numbers
- 526B9AA#ABH, 12H54EA#UUW, 1X7N1AA, 1X7P2AA, 12H31EA, 526H1AA +34 more
- EAN / UPC
- 195122599515, 195122600129, 195122600136, 195122600143 +56 more
- Also known as
- HP t540 1.5 GHz ThinPro 1.4 kg Black R1305G
Specifications
49 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 1.5 GHz |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen Embedded |
| Processor generation | AMD Ryzen Embedded R1000 Series |
| Processor model | R1305G |
| Processor cores | 2 |
| Processor threads | 4 |
| Processor boost frequency | 2.8 GHz |
| Processor cache | 4 MB |
| L2 cache | 1 MB |
| L3 cache | 4 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory clock speed | 2400 MHz |
| Memory slots | 1x SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 16 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 32 GB |
| Storage media | eMMC |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | AMD Radeon Vega 3 |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Realtek |
| WLAN controller model | Realtek RTL8852AE |

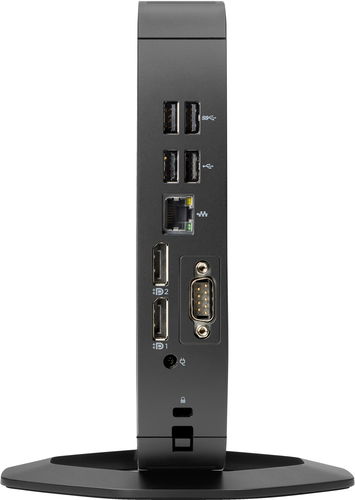

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB Type-C ports quantity | 1 |
| Combo headphone/mic port | Yes |
| DisplayPorts quantity | 2 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Display included | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | ThinPro |
Power
| Specification | Value |
|---|---|
| Power supply | 45 W |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 35 mm |
| Depth | 200 mm |
| Height | 200 mm |
| Weight | 1.4 kg |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 1400 mm |
| Package weight | 1.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included | Yes |
| Keyboard included | Yes |
