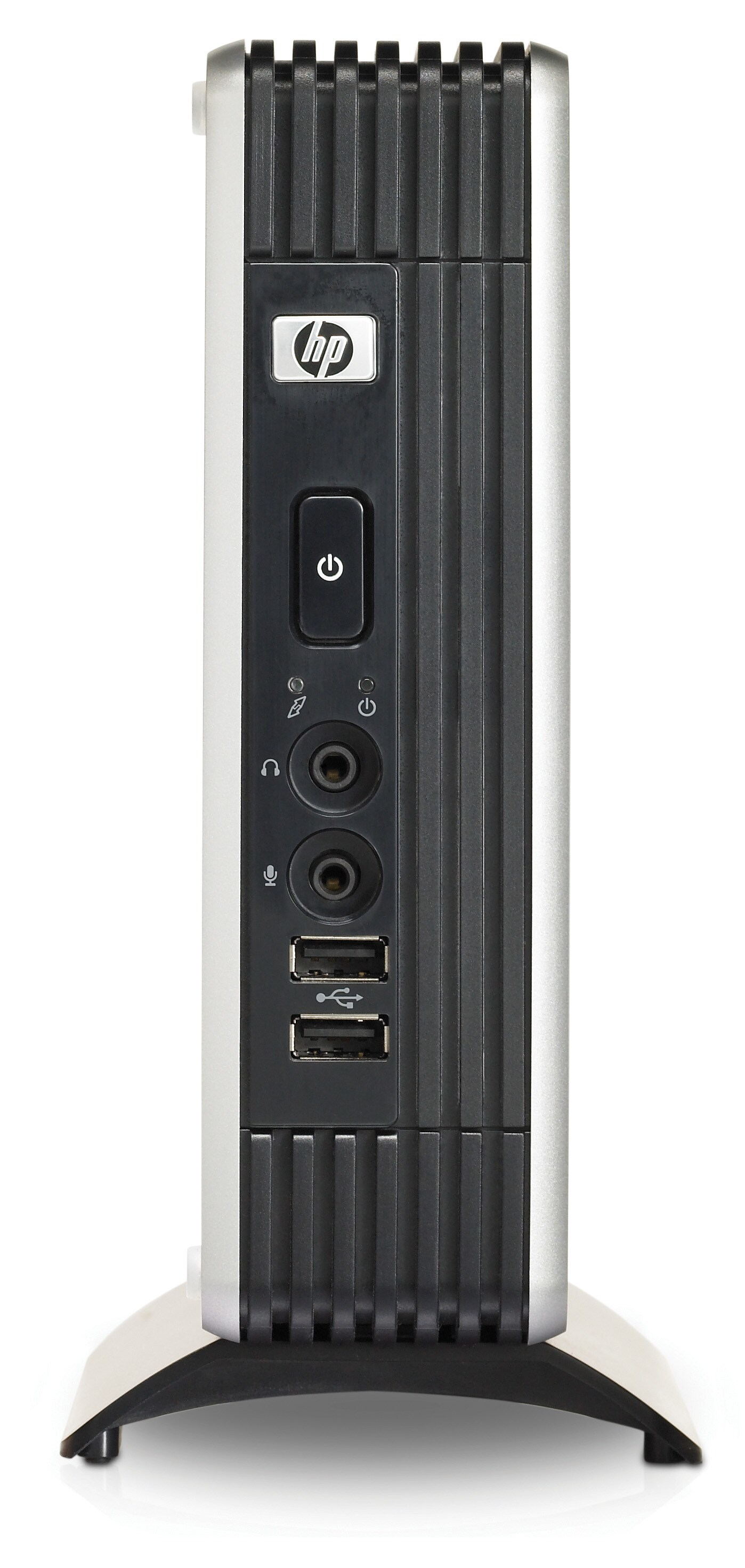

Compaq t5135 Thin Client VIA Eden 64M Flash Rom 128M DDR SDRAM HP ThinConnect

Model Compaq t5135 Thin Client VIA Eden 64M Flash Rom 128M DDR SDRAM HP ThinConnectPart no. RK271ATEAN 882780814387

37 specifications

ProcessorVia Eden
Memory0.125 GB
Storage0.064 GB
Weight1.6 kg
Processor frequency0.4 GHz
Maximum graphics card memory16 MB

See all specifications

Overview

Processor: Via Eden
Memory: 0.125 GB
Storage: 0.064 GB
Weight: 1.6 kg
Processor frequency: 0.4 GHz
Maximum graphics card memory: 16 MB

Brand: HP
Category: Thin Client
Model: Compaq t5135 Thin Client VIA Eden 64M Flash Rom 128M DDR SDRAM HP ThinConnect
Part number: RK271AT
EAN / UPC: 882780814387, 882780814318, 882780814325, 882780814332 +4 more
Also known as: HP Compaq t5135 Thin Client VIA Eden 64M Flash Rom 128M DDR SDRAM ThinConnect 0.4 GHz 1.6 kg

Specifications

37 specifications in 11 groups

Processor

Specification	Value
Processor frequency	0.4 GHz
Processor family	Via Eden

Memory

Specification	Value
Internal memory	0.125 GB

Storage

Specification	Value
Total storage capacity	0.064 GB

Graphics

Specification	Value
Maximum graphics card memory	16 MB

Audio

Specification	Value
Audio system	16-bit stereo

Network

Specification	Value
Supported protocols	RDP ICA

Software

Specification	Value
Bundled software	HP ThinState tools, HP ThinConnect, Altiris manageability agent, VNC shadow, Thinprint TCP/IP Client voor verbeterd lokaal printen, Citrix ICA 9.x, Citrix PN Agent, rdesktop RDP client (1.4.1)
Pre-installed software	ThinConnect

Operational conditions

Specification	Value
Operating temperature (T-T)	10 - 40 °C
Storage temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	20 - 80%

Certificates

Specification	Value
Country of origin	China

Weight & dimensions

Specification	Value
Weight	1.6 kg

Other features

Specification	Value
Compatible operating systems	Windows NT 4.0 Server, Windows NT 4.0 Terminal Server Edition, Windows 2000/2003 Server, Windows 2000/2003 Server Terminal services, Windows 2000 Advance Server, Windows 2000 Advance Server Terminal services, Citrix Presentation Server 4.0, Citrix MetaFrame Presentation Server 3.0, Citrix Metaframe
Dimensions (WxDxH)	186 x 52 x 205 mm
Ergonomics	Safety: UL 1950, CSA 950; TÜV-GS (EN60 950) approved, RF Interference: FCC Class B; CE Mark; EN55022B; VCCI German ZH1/618; EN29241-3, approved
Networking features	Ethernet, Fast Ethernet
Pointing device	HP PS/2 optical scroll mouse
Power requirements	100 - 240V, 50-60 Hz
Power supply type	Worldwide auto-sensing 100-240 VAC, 50-60 Hz
Relative humidity	10 - 95%
Size (imperial)	18.6 cm (7.31")
Supported network protocols	8 USB 2.0 ports (2 in front, 4 in back, 2 in secure top compartment to prevent theft), 1 serial, 1 parallel, 2 PS/2
Audio included	Output: Internal amplified speaker, full 16-bit stereo, 44 KHz sample rate; Input: Mic In/Headphone Out (ports in front)
Configuration management description	HP ThinState USB easy deployment Tools, Altiris Deployment Solution, FTP & DHCP image update HP ThinState USB easy deployment Tools, Altiris Deployment Solution, FTP & DHCP image update
I/O ports	6 x USB 2.0 1 x serial 1 x parallel 2 x PS/2 1 x RJ-45 1 x VGA 1 x line-in 1 x line-out
Keyboard type	HP USB standard keyboard
Multimedia	Mic in/Headphone out (ports in front); Internal amplified speaker, full 16-bit stereo, 44 KHz sample rate
ROM type	Flash RAM
Rear ports	4 USB 2.0; 1 serial; 1 parallel; 2 PS/2; 1 external monitor; 1 RJ-45
Rear ports note	4 USB 2.0; 1 serial; 1 parallel; 1 PS/2; 1 external monitor; 1 RJ-45
Standard memory capacity	128 MB
Standard memory note	16 MB of system RAM is reserved for video graphics usage
UNSPSC-code	43211506
Video card features	VIA S3 Graphics
Weight (imperial)	2.9 lb
