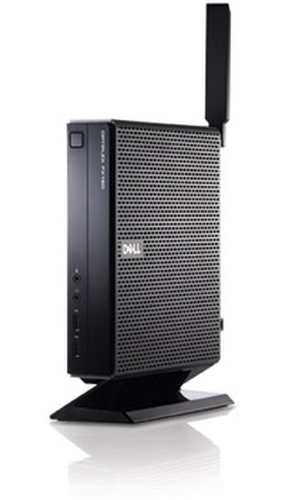

Dell OptiPlex FX170
Model OptiPlex FX170Part no. FX170-WES7
27 specifications
- ProcessorIntel Atom®
- Memory2 GB
- Storage4 GB
- OSWindows Embedded CE
- Weight528 g
- ColourBlack
Overview
- Processor
- Intel Atom®
- Memory
- 2 GB
- Storage
- 4 GB
- OS
- Windows Embedded CE
- Weight
- 528 g
- Colour
- Black
- Brand
- Dell
- Category
- Thin Client
- Model
- OptiPlex FX170
- Part numbers
- FX170-WES7, FX170-DTOS, FX170-WES09
- Also known as
- DELL OptiPlex FX170 1.6 GHz Windows Embedded CE 528 g Black N270
Specifications
27 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 1.6 GHz |
| Processor family | Intel Atom® |
| Processor model | N270 |
| L2 cache | 0.5 MB |
| Motherboard chipset | Intel® 945GSE Express |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Memory clock speed | 667 MHz |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 4 GB |
Audio
| Specification | Value |
|---|---|
| Number of built-in speakers | 1 |
Network
| Specification | Value |
|---|---|
| Wake-on-LAN ready | Yes |
| Supported protocols | RDP, ICA, PCoIP, X11 |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 4 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| PS/2 ports quantity | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Display included | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Embedded CE |
Power
| Specification | Value |
|---|---|
| Power supply | 11 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 528 g |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | Linux Devon IT DeTOS Dell Edition Windows Embedded Standard 2009 Windows Embedded Standard |
| Dimensions (WxDxH) | 36 x 156 x 121 mm |
| Networking features | Gigabit Ethernet |
| Operating system version | Standard 7 |
| Power LED | Yes |
