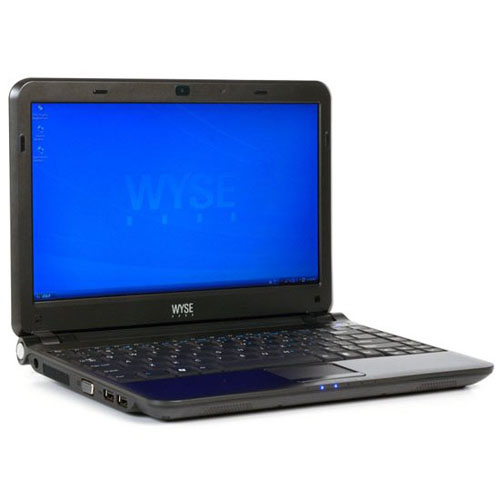

X90C7 1.33 GHz Windows Embedded Standard 2009 1.45 kg Black Z520
Model X90C7Part no. 909553-08L
57 specifications
- Display29.5 cm (11.6")
- Resolution1366 x 768 pixels
- ProcessorIntel Atom®
- Memory2 GB
- Storage4 GB
- Battery5200 mAh
Overview
- Display
- 29.5 cm (11.6")
- Resolution
- 1366 x 768 pixels
- Processor
- Intel Atom®
- Memory
- 2 GB
- Storage
- 4 GB
- Battery
- 5200 mAh
- Brand
- Dell Wyse
- Category
- Thin Client
- Model
- X90C7
- Part numbers
- 909553-08L, 909553-02L
- Also known as
- Dell Wyse X90C7 1.33 GHz Windows Embedded Standard 2009 1.45 kg Black Z520
Specifications
57 specifications in 16 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 1.33 GHz |
| Processor family | Intel Atom® |
| Processor model | Z520 |
| Processor cores | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR-SDRAM |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 4 GB |
| Storage media | Flash |
| Card reader integrated | Yes |
| Compatible memory cards | MMC, MS PRO, SD |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Cabling technology | 10/100Base-T(X) |
| Bluetooth | Yes |
| Bluetooth version | 2.1+EDR |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 3 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Line-out | Yes |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| LED indicators | Yes |
Display
| Specification | Value |
|---|---|
| Display included | Yes |
| Display type | LED |
| Display diagonal | 29.5 cm (11.6") |
| Display resolution | 1366 x 768 pixels |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Embedded Standard 2009 |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 15 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 40 °C |
| Operating temperature (T-T) | 50 - 104 °F |
| Operating relative humidity (H-H) | 20 - 80% |
Certificates
| Specification | Value |
|---|---|
| Certification | CE (EN 55022, EN 55024), FCC 15B)FCC (Part 15C), CE (EN 300 328, EN 301 489), 1999/5/ECRoHS, WEEE |
| Safety | UL/IEC 60950-1, TUV |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 290 mm |
| Depth | 209 mm |
| Height | 31.7 mm |
| Weight | 1.45 kg |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 5200 mAh |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Other features
| Specification | Value |
|---|---|
| Audio output | Yes |
| Battery life (max) | 8 h |
| Battery type | 6-cell Li-Ion |
| Compatible operating systems | Windows Embedded Standard OS |
| Dimensions (WxDxH) | 290 x 209 x 31.7 mm |
| Graphics card family | Intel |
| Networking features | Fast Ethernet, Wi-Fi, Bluetooth |
| Weight (imperial) | 1.45 kg (3.2 lbs) |
