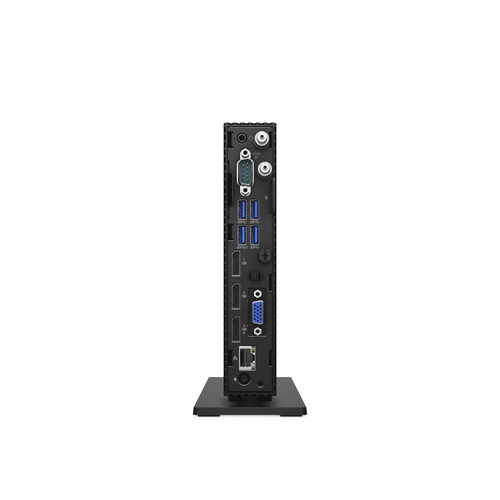

Wyse 5070
Model Wyse 5070Part no. TK3TTEAN 5397184144800
52 specifications
- ProcessorIntel® Pentium® Silver
- Memory8 GB
- Storage64 GB
- OSWindows 10 IoT
- Weight1.13 kg
- ColourBlack
Overview
- Processor
- Intel® Pentium® Silver
- Memory
- 8 GB
- Storage
- 64 GB
- OS
- Windows 10 IoT
- Weight
- 1.13 kg
- Colour
- Black
- Brand
- Dell Wyse
- Category
- Thin Client
- Model
- Wyse 5070
- Part numbers
- TK3TT, 33FC0
- EAN / UPC
- 5397184144800, 5397184144329
- Also known as
- Dell Wyse Wyse 5070 1.5 GHz Windows 10 IoT 1.13 kg Black J5005
Specifications
52 specifications in 15 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 1.5 GHz |
| Processor family | Intel® Pentium® Silver |
| Processor model | J5005 |
| Processor cores | 4 |
| Processor boost frequency | 2.8 GHz |
| L3 cache | 4 MB |
Memory
| Specification | Value |
|---|---|
| Internal memory | 8 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x SO-DIMM |
| Maximum internal memory | 8 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 64 GB |
| Storage media | SSD |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card model | Intel® UHD Graphics 605 |
Audio
| Specification | Value |
|---|---|
| Audio system | Realtek ALC3253 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| USB Type-C ports quantity | 1 |
| Headphone outputs | 1 |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| DisplayPorts quantity | 3 |
| Serial ports quantity | 1 |
| Line-out | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Display included | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 10 IoT |
| Operating system language | French |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Non-operating altitude | 0 - 10668 m |
| Operating altitude | 0 - 5000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 35.6 mm |
| Depth | 184 mm |
| Height | 184 mm |
| Weight | 1.13 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 473 mm |
| Package depth | 238 mm |
| Package height | 94 mm |
| Package weight | 1.76 kg |
Packaging content
| Specification | Value |
|---|---|
| Mouse included on selected markets only | Yes |
| Stand included | Yes |
| Cables included | AC |
| External power adapter | Yes |
