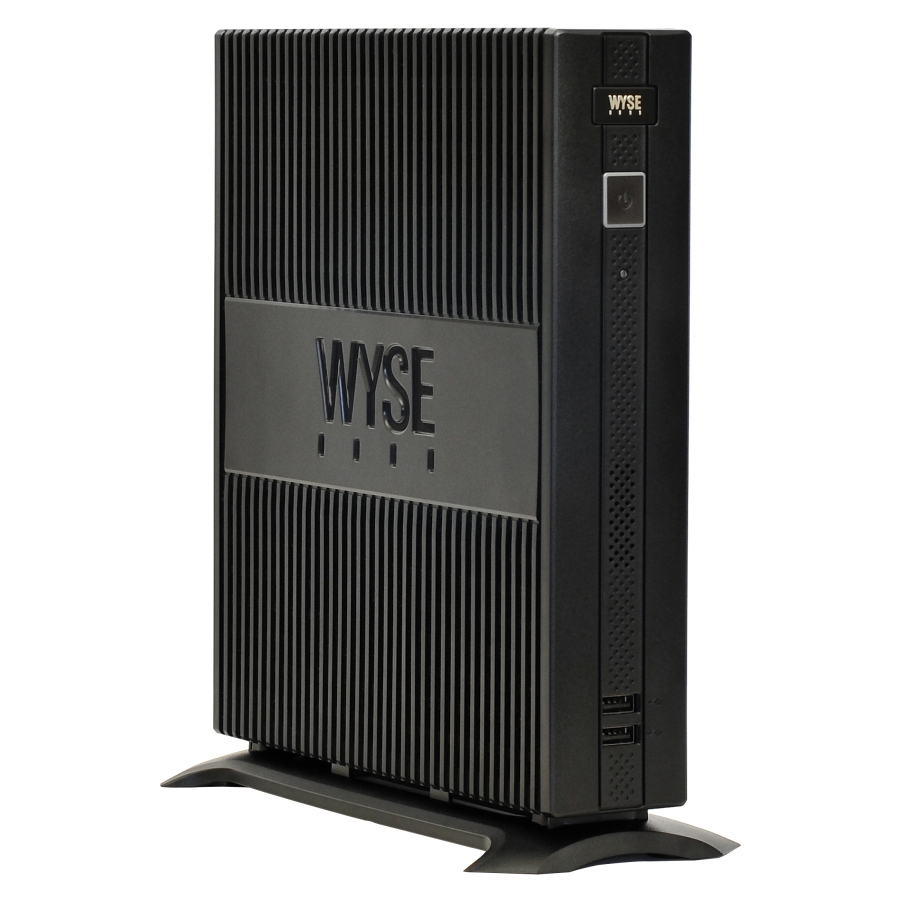

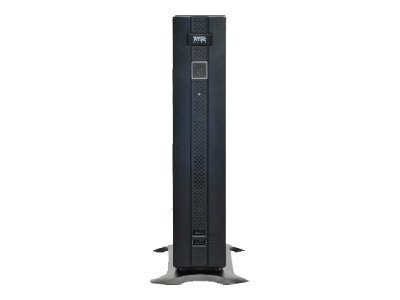

R90LW 1 GHz Windows Embedded Standard 2009 Black
Model R90LWPart no. 909543-54LEAN 662724204326
45 specifications
- ProcessorAMD Sempron
- Memory2 GB
- Storage5 GB
- OSWindows Embedded Standard 2009
- ColourBlack
- Processor frequency1 GHz
Overview
- Processor
- AMD Sempron
- Memory
- 2 GB
- Storage
- 5 GB
- OS
- Windows Embedded Standard 2009
- Colour
- Black
- Processor frequency
- 1 GHz
- Brand
- Dell Wyse
- Category
- Thin Client
- Model
- R90LW
- Part numbers
- 909543-54L, 909543-71L, 909543-74L, 909533-41L, 909541-31L, 909543-04L +32 more
- EAN / UPC
- 662724204326, 6627242043264, 662724225239, 708326850391 +17 more
- Also known as
- Dell Wyse R90LW 1 GHz Windows Embedded Standard 2009 Black
Specifications
45 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 1 GHz |
| Processor family | AMD Sempron |
| Motherboard chipset | AMD M690E |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Maximum internal memory | 2 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 5 GB |
| Storage media | Flash |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| On-board graphics card | Yes |
| Maximum resolution | 2560 x 1600 pixels |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |

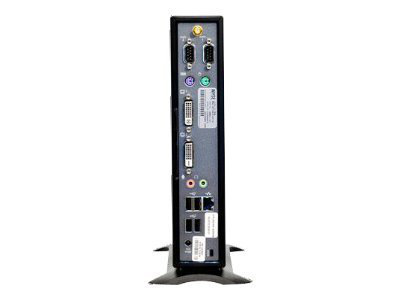

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 6 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| DVI-I ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Serial ports quantity | 2 |
| PS/2 ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| LED indicators | Power |
Display
| Specification | Value |
|---|---|
| Display included | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows Embedded Standard 2009 |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
Certificates
| Specification | Value |
|---|---|
| Certification | EKI-ITB 2000, ISO 9241-3/-8, cULus 60950, TÜV-GS, EN 60950, FCC Class B, CE, VCCI, C-Tick, WEEE |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 53 mm |
| Depth | 225 mm |
| Height | 250 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.95 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Other features
| Specification | Value |
|---|---|
| Graphics card family | AMD |
| Networking features | Gigabit Ethernet |
| Power supply type | AC |
