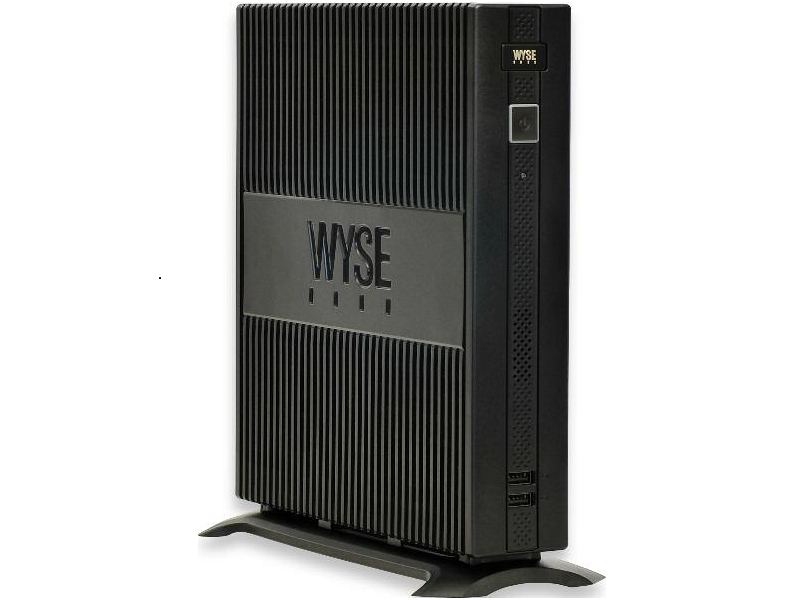

R90LE7 1.5 GHz Windows 7 Embedded Black
Model R90LE7Part no. 909544-52LEAN 662724229176
53 specifications
- ProcessorAMD Sempron
- Memory2 GB
- Storage4 GB
- OSWindows 7 Embedded
- ColourBlack
- Processor frequency1.5 GHz
Overview
- Processor
- AMD Sempron
- Memory
- 2 GB
- Storage
- 4 GB
- OS
- Windows 7 Embedded
- Colour
- Black
- Processor frequency
- 1.5 GHz
- Brand
- Dell Wyse
- Category
- Thin Client
- Model
- R90LE7
- Part number
- 909544-52L
- EAN / UPC
- 662724229176
- Also known as
- Dell Wyse R90LE7 1.5 GHz Windows 7 Embedded Black
Specifications
53 specifications in 18 groups
Processor
| Specification | Value |
|---|---|
| Processor frequency | 1.5 GHz |
| Processor family | AMD Sempron |
| Processor cores | 1 |
Memory
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Memory layout (slots x size) | 1 x 2 GB |
| Maximum internal memory | 2 GB |
Storage
| Specification | Value |
|---|---|
| Total storage capacity | 4 GB |
| Storage media | Flash |
| Card reader integrated | No |
Graphics
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1600 pixels |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Bluetooth | Yes |
| Bluetooth version | 2.0+EDR |

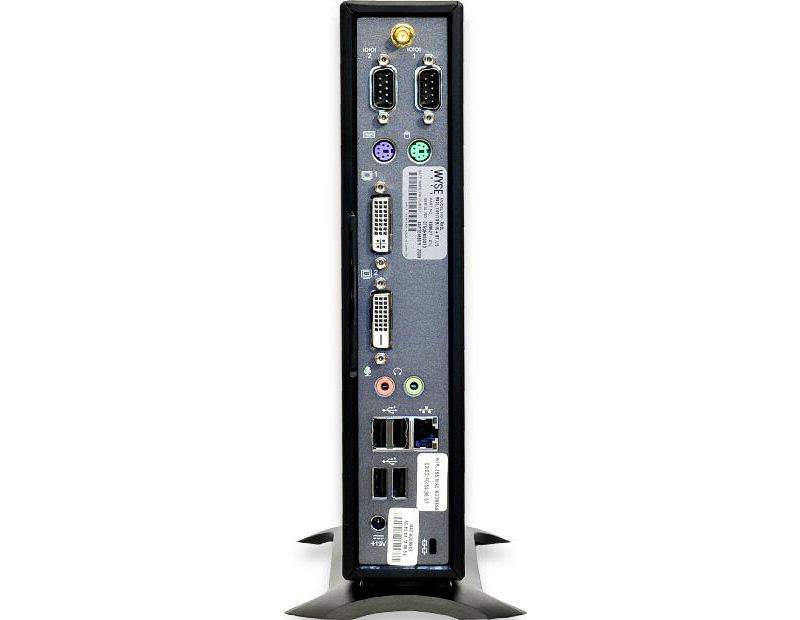

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB 2.0 ports quantity | 6 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| DVI-I ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Serial ports quantity | 2 |
| Line-out | Yes |
| PS/2 ports quantity | 2 |
Design
| Specification | Value |
|---|---|
| Rack mounting | No |
| Product colour | Black |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Display included | No |
Software
| Specification | Value |
|---|---|
| Operating system installed | Windows 7 Embedded |
Power
| Specification | Value |
|---|---|
| Power supply | 65 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (typical) | 12.7 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 40 °C |
| Operating temperature (T-T) | 50 - 104 °F |
| Operating relative humidity (H-H) | 20 - 80% |
Certificates
| Specification | Value |
|---|---|
| Certification | cULus 60950, TÜV-GS, EN 60950, FCC Class B, CE, VCCI, C-Tick, WEEE |
| Safety | EKI-ITB 2000, ISO 9241-3/-8 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 250 mm |
| Depth | 225 mm |
| Height | 53 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 2.95 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | No |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Other features
| Specification | Value |
|---|---|
| Audio output | Yes |
| Compatible operating systems | Linux Enterprise, Windows Embedded Standard 7, Windows Embedded Standard 2009, Windows XP Embedded SP3 |
| Dimensions (WxDxH) | 250 x 225 x 53 mm |
| Networking features | Gigabit Ethernet, WLAN |
| Power supply type | AC/DC |
