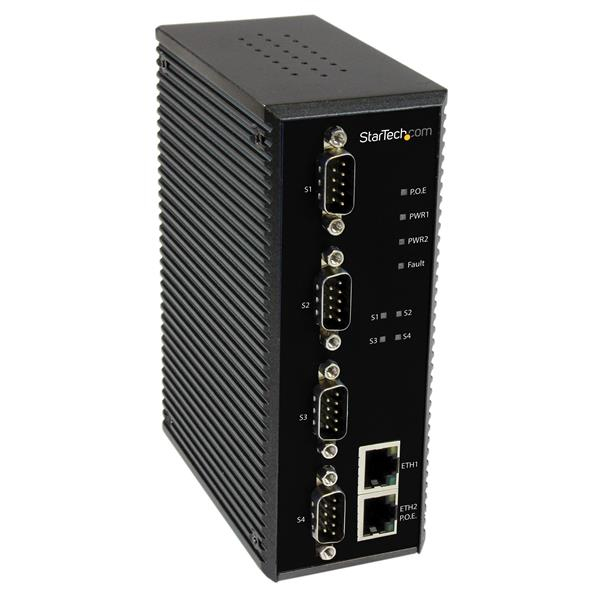

4 Port Industrial RS-232 / 422 / 485 Serial to IP Ethernet Device Server - PoE-Powered
2x 10/100Mbps Ports
Model NETRS42348PDEAN 7887117188271
36 specifications
- Weight700 g
- ColourBlack
- Serial ports quantity4
- Ethernet LAN (RJ-45) ports2
- LED indicatorsLink, PoE, Power
- Input voltage12 - 48 V
Overview
- Weight
- 700 g
- Colour
- Black
- Serial ports quantity
- 4
- Ethernet LAN (RJ-45) ports
- 2
- LED indicators
- Link, PoE, Power
- Input voltage
- 12 - 48 V
- Brand
- StarTech.com
- Category
- Serial Server
- Model
- NETRS42348PD
- Part number
- NETRS42348PD
- EAN / UPC
- 7887117188271, 065030854542, 5052184090587, 5054484600930 +4 more
- Also known as
- StarTech.com 4 Port Industrial RS-232 / 422 / 485 Serial to IP Ethernet Device Server - PoE-Powered - 2x 10/100Mbps Ports
Specifications
36 specifications in 11 groups
Technical details
| Specification | Value |
|---|---|
| Serial ports quantity | 4 |
| Auto MDI/MDI-X | Yes |
| Baud rate | 460.8 Kbit/s |
| Compliance certificates | RoHS |
| Data bits | 5, 6, 7, 8 |
| Data transfer rate | 0.46 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow Control type | DTR/DSR, RTS/CTS, XON/XOFF |
| Flow control support | Yes |
| Isolation | 1 kV |
| Mean time between failures (MTBF) | 569972 h |
| Networking standards | IEEE 802.3, IEEE 802.3af, IEEE 802.3u |
| Serial interface type | RS-232/422/485 |
| Stop bits | 1, 1.5, 2 |
| Certification | CE, FCC |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Cabling technology | 10/100Base-T(X) |
Indication
| Specification | Value |
|---|---|
| LED indicators | Link, PoE, Power |
| Power LED | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 - 48 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 700 g |
| Dimensions (WxDxH) | 210 x 224 x 144 mm |
| Package width | 186 mm |
| Package height | 92 mm |
| Package weight | 830 g |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basi |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016 |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
| Wall mounting kit | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP, SSL, PPPoE, DDNS |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSL/TLS |
