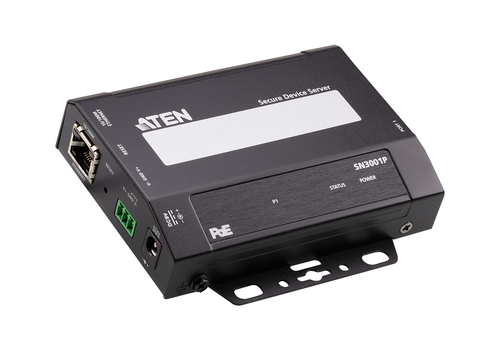

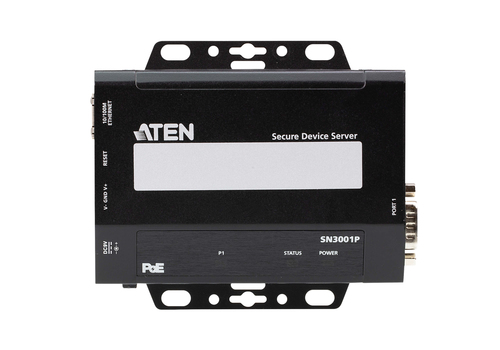

1-Port RS-232 Secure Device Server with PoE
Model SN3001PPart no. SN3001P-AXEAN 4710469341045
49 specifications
- Weight210 g
- ColourBlack
- Serial ports quantity1
- LED indicatorsLAN, Power, Status
- Power source typeDC, PoE
- Operating relative humidity (H-H)5 - 95%
Overview
- Weight
- 210 g
- Colour
- Black
- Serial ports quantity
- 1
- LED indicators
- LAN, Power, Status
- Power source type
- DC, PoE
- Operating relative humidity (H-H)
- 5 - 95%
- Brand
- ATEN
- Category
- Serial Server
- Model
- SN3001P
- Part number
- SN3001P-AX
- EAN / UPC
- 4710469341045
- Also known as
- ATEN 1-Port RS-232 Secure Device Server with PoE
Specifications
49 specifications in 10 groups
Technical details
| Specification | Value |
|---|---|
| Serial ports quantity | 1 |
| Baud rate | 921.6 Kbit/s |
| Compliance certificates | RoHS |
| Data bits | 5, 6, 7, 8 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow Control type | DTR/DSR, RTS/CTS, XON/XOFF |
| Isolation | 1.5 kV |
| Networking standards | IEEE 802.3af |
| Parity bit | Even, Mark, No, Space |
| RS-232 signals | CTS, DCD, DSR, DTR, GND, RTS, RXD, TXD |
| Serial interface type | RS-232 |
| Stop bits | 1, 1.5, 2 |
| Certification | EMC: EN 55032/35 EMI: CISPR 32, FCC Part 15B Class A EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV IEC 61000-4-5 Surge: Power: 2 kV (Power Adapter), 1kV (Terminal Block); Signal: 1 kV IEC 61000-4-6 CS: 150 kHz |

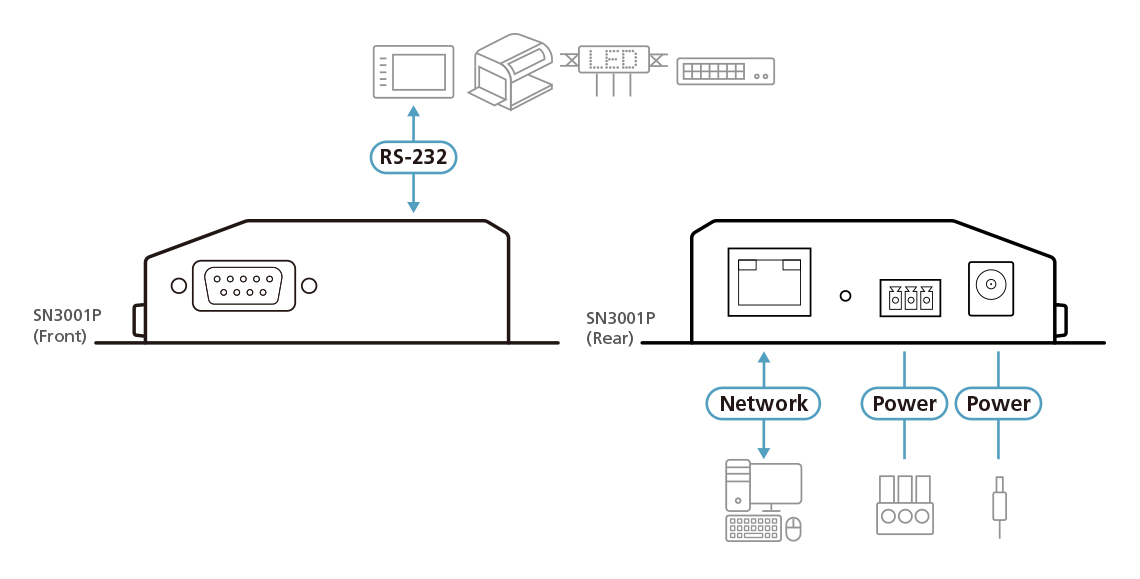

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Terminal block port | Yes |
| Cabling technology | 10/100Base-T(X) |
Indication
| Specification | Value |
|---|---|
| LED indicators | LAN, Power, Status |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Reset button | Yes |
| Safety | UL 60950-1, UL 62368-1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 1.22 W |
| Power consumption (typical) | 0.975 W |
| Output voltage | 9 - 48 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 210 g |
| Dimensions (WxDxH) | 117 x 98 x 26 mm |
| Package width | 59 mm |
| Package length | 23.9 cm |
| Package height | 160 mm |
| Package weight | 440 g |
Packaging content
| Specification | Value |
|---|---|
| DIN rail kit included | Yes |
| Terminal block included | Yes |
| Number of foot pads | 4 pc(s) |
| User guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | Taiwan |
| Master (outer) case gross weight | 4.97 kg |
| Master (outer) case volume | 27467.34 cm³ |
| Package volume | 2265.35 cm³ |
| Products per master (outer) case | 10 pc(s) |
| Master (outer) case length | 490 mm |
| Master (outer) case width | 315 mm |
| Master (outer) case height | 178 mm |
| Master (outer) case net weight | 3 kg |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 75 °C |
Security
| Specification | Value |
|---|---|
| Security algorithms | 802.1x RADIUS, 2048-bit RSA, TLS |
