1 Port Industrial RS-232 / 422 / 485 Serial to IP Ethernet Wireless Device Server with Redundant Power
Model NETRS232485WEAN 012304737834
37 specifications
- Weight346 g
- ColourBlack
- Serial ports quantity1
- LED indicatorsActivity, Link, Power, WLAN
- Input voltage12 - 48 V
- Antenna connector typeRP-SMA
Overview
- Weight
- 346 g
- Colour
- Black
- Serial ports quantity
- 1
- LED indicators
- Activity, Link, Power, WLAN
- Input voltage
- 12 - 48 V
- Antenna connector type
- RP-SMA
- Brand
- StarTech.com
- Category
- Serial Server
- Model
- NETRS232485W
- Part number
- NETRS232485W
- EAN / UPC
- 012304737834, 065030855129, 184795984704, 4923113171015
- Also known as
- StarTech.com 1 Port Industrial RS-232 / 422 / 485 Serial to IP Ethernet Wireless Device Server with Redundant Power
Specifications
37 specifications in 12 groups
Technical details
| Specification | Value |
|---|---|
| Serial ports quantity | 1 |
| Auto MDI/MDI-X | Yes |
| Baud rate | 230.4 Kbit/s |
| Compliance certificates | RoHS |
| Data bits | 5, 6, 7, 8 |
| Electrostatic Discharge (ESD) protection (air) | 8 kV |
| Electrostatic Discharge (ESD) protection (contact) | 4 kV |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow Control type | RTS/CTS, XON/XOFF |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u |
| Operating frequency | 2400 MHz |
| Serial interface type | RS-232/422/485 |
| Certification | CE, FCC |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
Indication
| Specification | Value |
|---|---|
| LED indicators | Activity, Link, Power, WLAN |
| Link/Act LED | Yes |
| Power LED | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Steel |
Power
| Specification | Value |
|---|---|
| Input voltage | 12 - 48 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 346 g |
| Dimensions (WxDxH) | 173 x 224 x 107 mm |
| Package width | 234 mm |
| Package height | 126 mm |
| Package weight | 450 g |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Win |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 x64, Windows Server 2008 R2, Windows Server 2012, Windows Server 2016 |
Antenna
| Specification | Value |
|---|---|
| Antenna connector type | RP-SMA |
| Antenna gain level (max) | 2 dBi |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 65 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Packaging content
| Specification | Value |
|---|---|

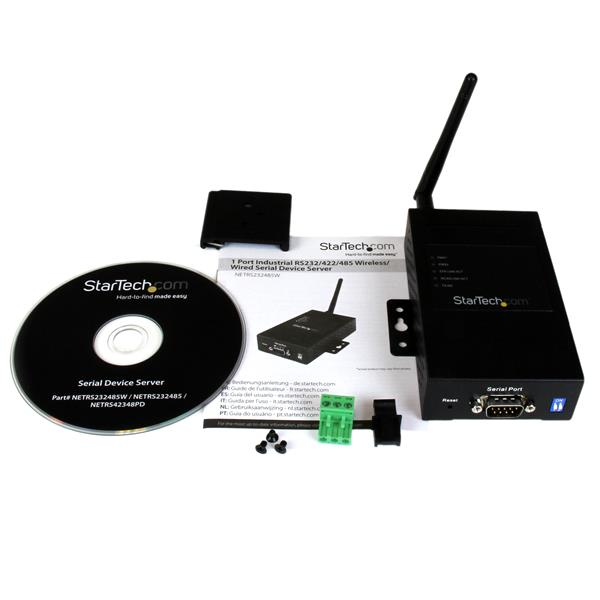

| User guide | Yes |
| Wall mounting kit | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | CSMA/CA ICMP, IP, TCP, UDP, DHCP, BOOTP, SSH, DNS, SNMP V1/V2c, HTTPS, SMTP, SSL, PPPoE, DDNS |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSL/TLS, TKIP, WEP, WPA |
