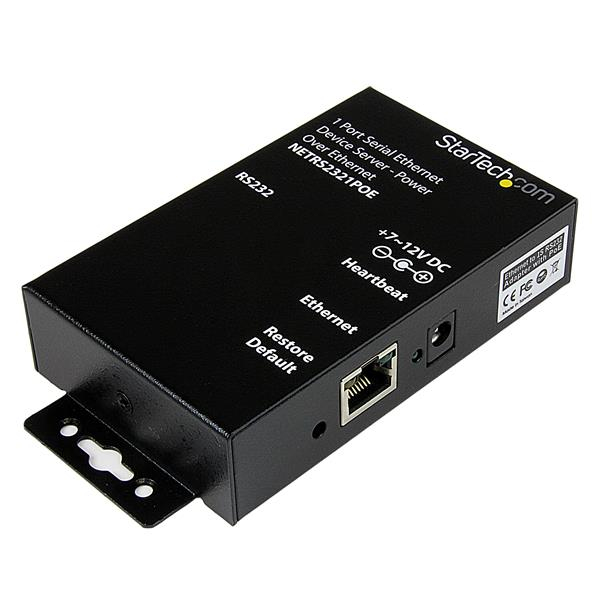

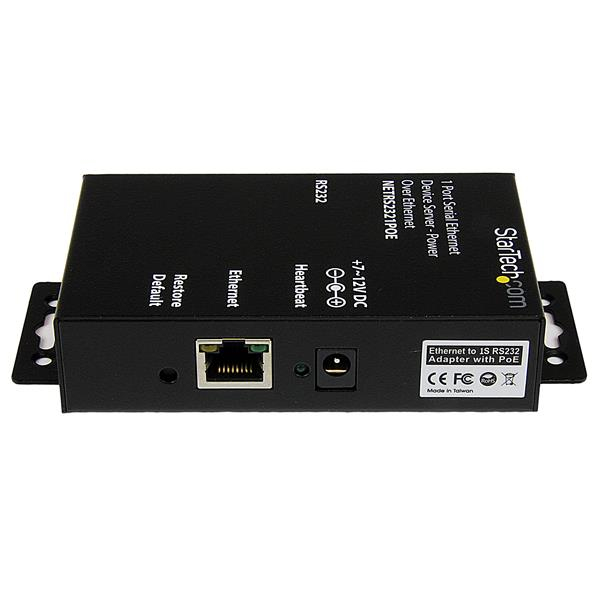

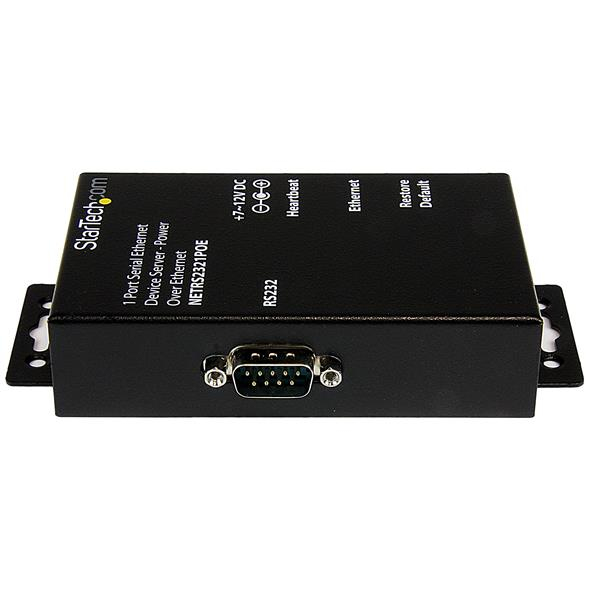

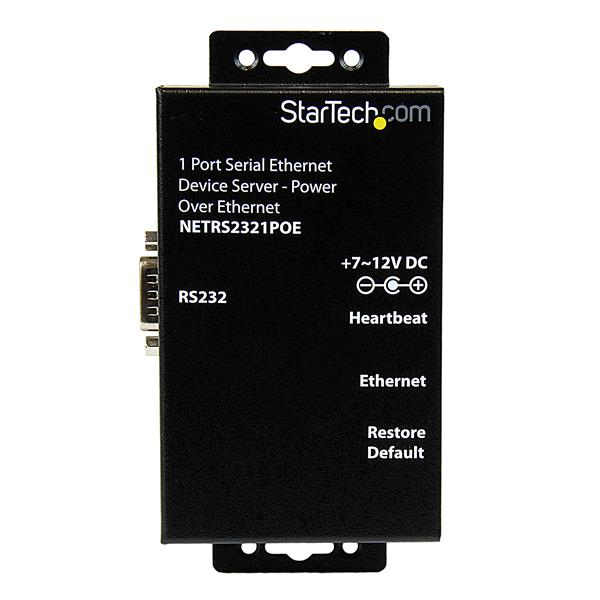

1 Port RS232 Serial Ethernet Device Server - PoE Power Over Ethernet
Model NETRS2321POEEAN 5704174248439
35 specifications
- Weight259 g
- Serial ports quantity1
- LED indicatorsActivity, Link
- Input voltage100 - 240 V
- Operating relative humidity (H-H)5 - 95%
Overview
- Weight
- 259 g
- Serial ports quantity
- 1
- LED indicators
- Activity, Link
- Input voltage
- 100 - 240 V
- Operating relative humidity (H-H)
- 5 - 95%
- Brand
- StarTech.com
- Category
- Serial Server
- Model
- NETRS2321POE
- Part number
- NETRS2321POE
- EAN / UPC
- 5704174248439, 065030831819, 065030834162, 151903664247 +3 more
- Also known as
- StarTech.com 1 Port RS232 Serial Ethernet Device Server - PoE Power Over Ethernet
Specifications
35 specifications in 10 groups
Technical details
| Specification | Value |
|---|---|
| Serial ports quantity | 1 |
| Baud rate | 115.2 Kbit/s |
| Compliance certificates | RoHS |
| Data bits | 6, 7, 8 |
| Data transfer rate | 0.1152 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Mean time between failures (MTBF) | 233403 h |
| Networking standards | IEEE 802.3af |
| Serial interface type | RS-232 |
| Stop bits | 1, 2 |
| Certification | CE, FCC, REACH, TAA |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
Indication
| Specification | Value |
|---|---|
| LED indicators | Activity, Link |
| Link/Act LED | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Output voltage | 12 V |
| Output current | 0.1 A |
| Compatible power plug types | EU, UK, US |
| Input current | 0.3 A |
| Power consumption | 100 mA |
| Power plug type | Type M |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 259 g |
| Dimensions (WxDxH) | 66.3 x 107 x 25 mm |
| Package width | 296 mm |
| Package length | 19.2 cm |
| Package height | 70 mm |
| Package weight | 963 g |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows Vista Business, Windows Vista Enterprise, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Ultimate, Windows XP Home, Windows XP Professional |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |

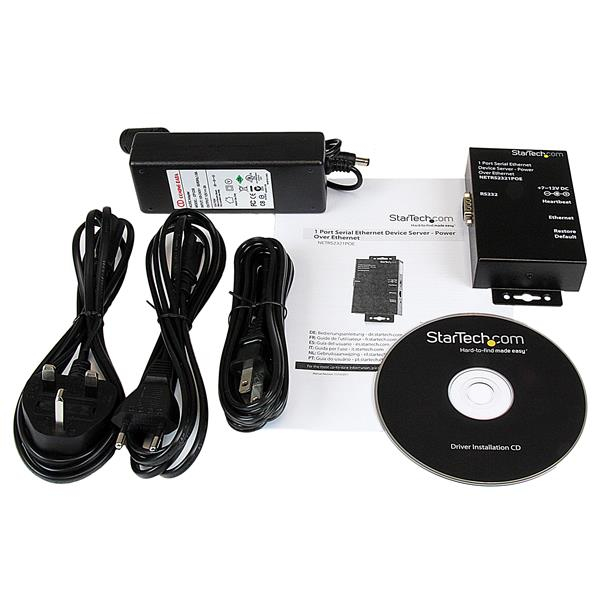

Packaging content
| Specification | Value |
|---|---|
| User guide | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | Windows Vista (32), XP (32), 2000 |
