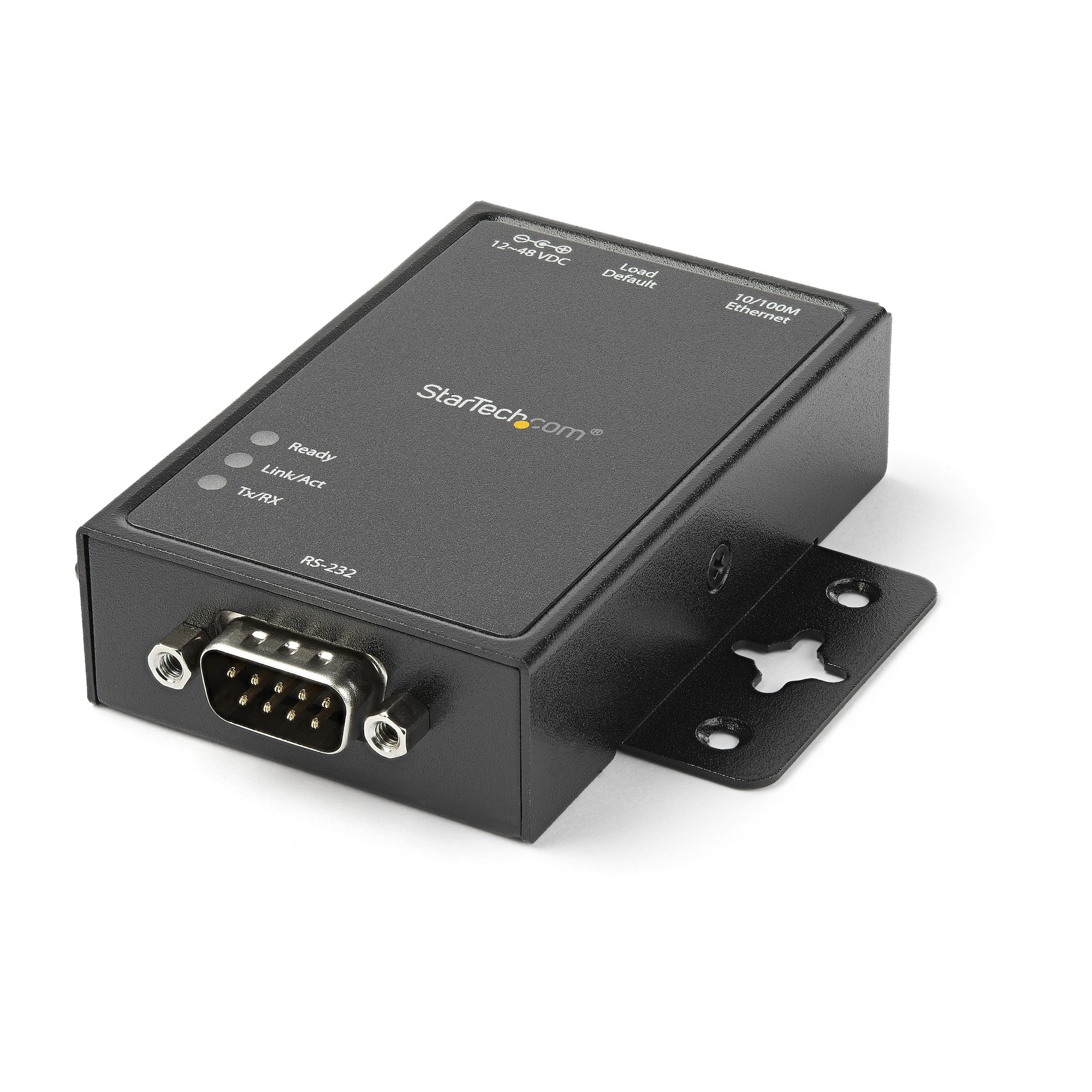

1-Port Serial-to-IP Ethernet Device Server - RS232 - DIN Rail and Surface Mountable - Aluminum
Model NETRS2321PEAN 5054629405819
44 specifications
- Weight92 g
- ColourBlack
- Serial ports quantity1
- LED indicatorsActivity, Link, Ready
- Input voltage100 - 240 V
- Operating relative humidity (H-H)0 - 90%
Overview
- Weight
- 92 g
- Colour
- Black
- Serial ports quantity
- 1
- LED indicators
- Activity, Link, Ready
- Input voltage
- 100 - 240 V
- Operating relative humidity (H-H)
- 0 - 90%
- Brand
- StarTech.com
- Category
- Serial Server
- Model
- NETRS2321P
- Part number
- NETRS2321P
- EAN / UPC
- 5054629405819, 065030851459, 115971589123, 132018511657 +3 more
- Also known as
- StarTech.com 1-Port Serial-to-IP Ethernet Device Server - RS232 - DIN Rail and Surface Mountable - Aluminum
Specifications
44 specifications in 11 groups
Technical details
| Specification | Value |
|---|---|
| Serial ports quantity | 1 |
| Baud rate | 460.8 Kbit/s |
| Compliance certificates | RoHS |
| Data bits | 5, 6, 7, 8 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow Control type | No, RTS/CTS |
| Flow control support | Yes |
| Networking standards | IEEE 802.3u |
| Parity bit | Even, No, Odd |
| RS-232 signals | Rx, Tx |
| Serial interface type | RS-232 |
| Stop bits | 1, 1.5, 2 |
| Certification | CE, FCC, TAA, REACH |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
Indication
| Specification | Value |
|---|---|
| LED indicators | Activity, Link, Ready |
| Link/Act LED | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Aluminium |
Power
| Specification | Value |
|---|---|
| Input voltage | 100 - 240 V |
| Output voltage | 12 V |
| Output current | 1.6 A |
| Compatible power plug types | AU, EU, UK, US |
| Power consumption | 360 mA |
| Power plug type | Type M |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 92 g |
| Dimensions (WxDxH) | 53 x 86 x 23 mm |
| Package width | 146 mm |
| Package depth | 176 mm |
| Package length | 17.6 cm |
| Package height | 62 mm |
| Package weight | 416 g |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windo |
| Server operating systems supported | Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019 |
Logistics data
| Specification | Value |
|---|---|
| Products per master (outer) case | 25 pc(s) |
| Master (outer) case length | 483 mm |
| Master (outer) case width | 397 mm |
| Master (outer) case height | 307 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |

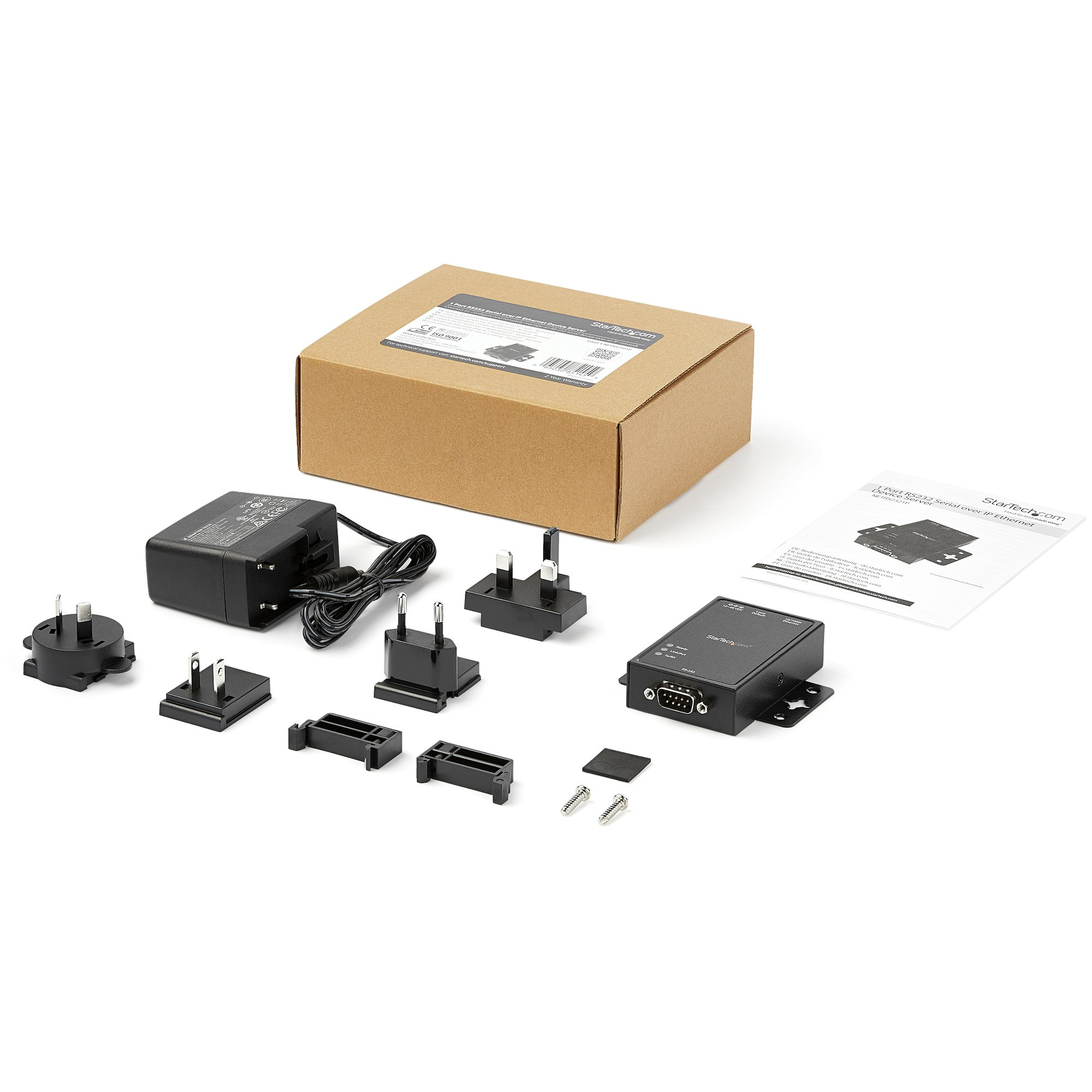

Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| User guide | Yes |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | DHCP, TCP/IP, UDP, HTTP, ICMP, ARP, Telnet |
