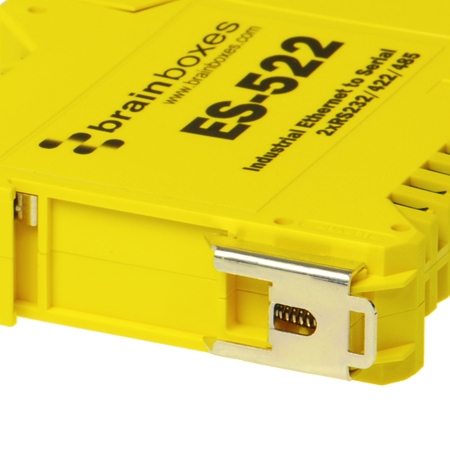

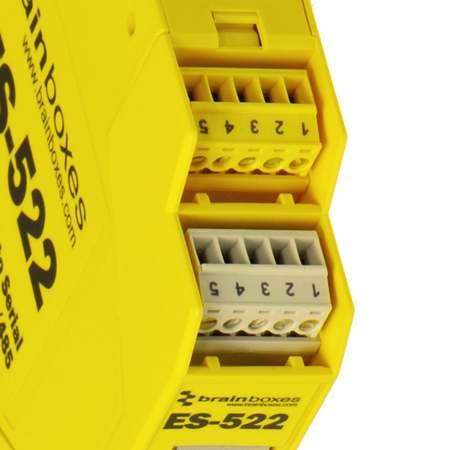

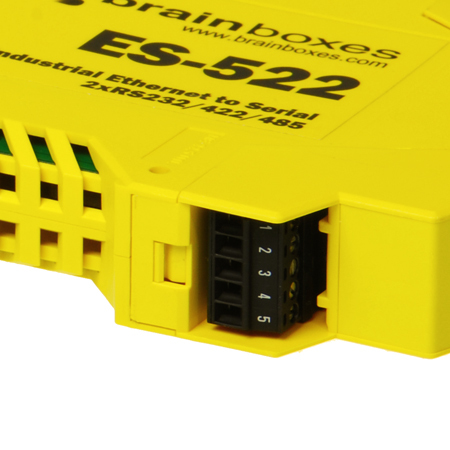

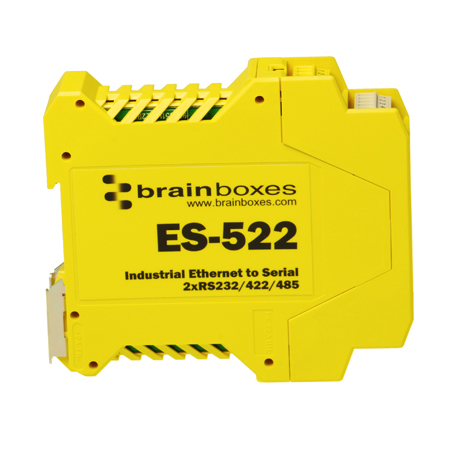

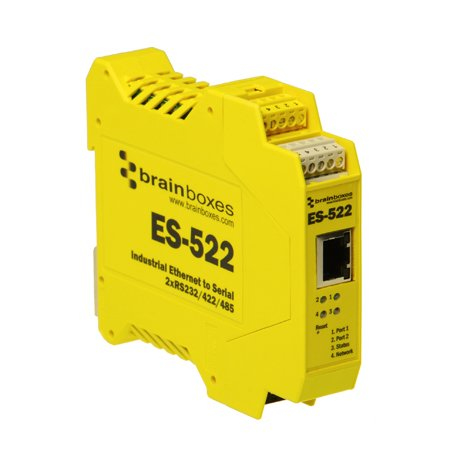

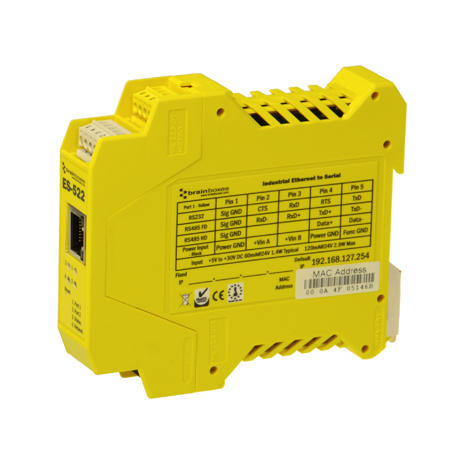

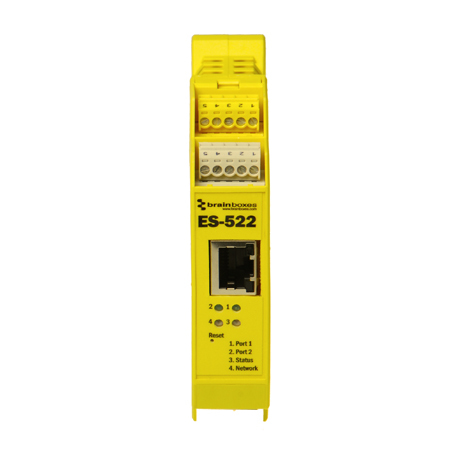

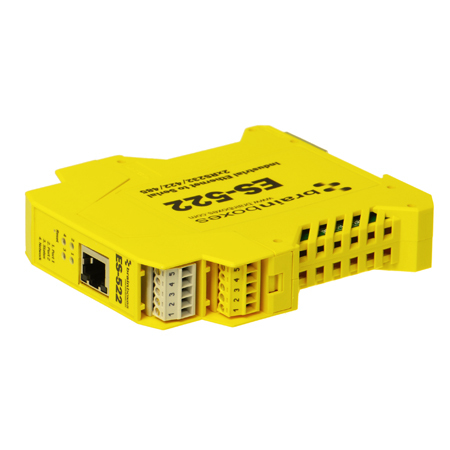

ES-522 serial server RS-232/422/485
Model ES-522Part no. 4Z10A39515EAN 887770889796
20 specifications
- Weight120 g
- Serial ports quantity2
- Ethernet LAN (RJ-45) ports1
- LED indicatorsYes
- Input voltage5 - 30 V
- Operating relative humidity (H-H)5 - 95%
Overview
- Weight
- 120 g
- Serial ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
- LED indicators
- Yes
- Input voltage
- 5 - 30 V
- Operating relative humidity (H-H)
- 5 - 95%
- Brand
- Lenovo
- Category
- Serial Server
- Model
- ES-522
- Part number
- 4Z10A39515
- EAN / UPC
- 887770889796
- Also known as
- Lenovo ES-522 serial server RS-232/422/485
Specifications
20 specifications in 7 groups
Technical details
| Specification | Value |
|---|---|
| Serial ports quantity | 2 |
| Baud rate | 1000 Kbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
| Serial interface type | RS-232/422/485 |
| Certification | RoHS, WEEE, FCC, UL, METL, TAA, AEO |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100/1000Base-T(X) |
Indication
| Specification | Value |
|---|---|
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Input voltage | 5 - 30 V |
| Power consumption | 60 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 120 g |
| Dimensions (WxDxH) | 96.3 x 101 x 25 mm |
| Package width | 22.6 mm |
| Package length | 11.4 cm |
| Package height | 99 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, HTTP, RFC2217 |
