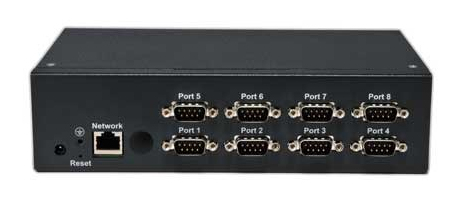

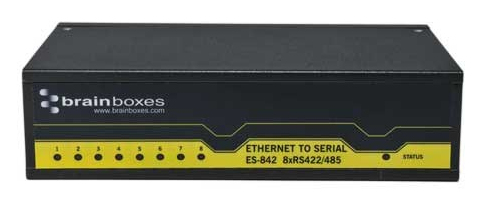

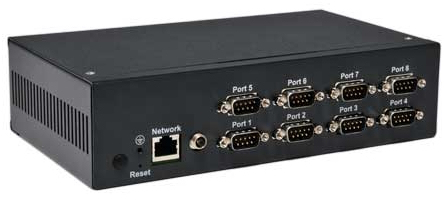

Ethernet 8 Port RS422/485
Model ES-842EAN 837324002690
31 specifications
- Weight1.17 kg
- Serial ports quantity8
- Ethernet LAN (RJ-45) ports1
- LED indicatorsYes
- Power source typeDC
- Width135 mm
Overview
- Weight
- 1.17 kg
- Serial ports quantity
- 8
- Ethernet LAN (RJ-45) ports
- 1
- LED indicators
- Yes
- Power source type
- DC
- Width
- 135 mm
- Brand
- Brainboxes
- Category
- Serial Server
- Model
- ES-842
- Part number
- ES-842
- EAN / UPC
- 837324002690, 8373240026904, 8716065295061
- Also known as
- Brainboxes Ethernet 8 Port RS422/485
Specifications
31 specifications in 11 groups
Technical details
| Specification | Value |
|---|---|
| Serial ports quantity | 8 |
| Baud rate | 1000 Kbit/s |
| Data transfer rate | 100 Mbit/s |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow Control type | RTS/CTS, XON/XOFF |
| Flow control support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Serial interface type | RS-422/485 |
| Stop bits | 1, 1.5, 2 |
| Certification | AEO WEEE RoHS EMC: CE TAA |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
Indication
| Specification | Value |
|---|---|
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 2.86 W |
| Input voltage | 5 - 30 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 135 mm |
| Depth | 300 mm |
| Height | 80 mm |
| Weight | 1.17 kg |

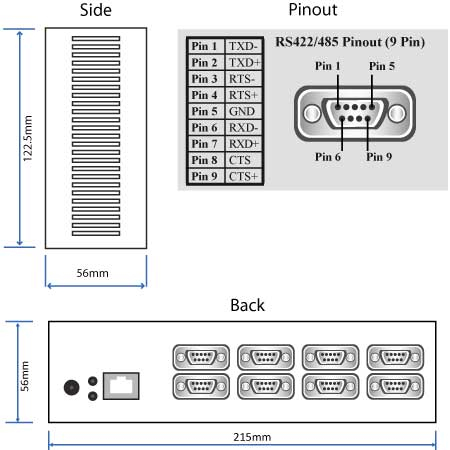

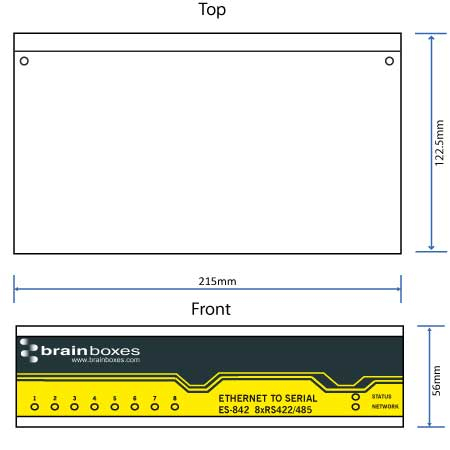

| Dimensions (WxDxH) | 215 x 122.5 x 56 mm |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows Vista, Windows 7, Windows 8, Windows 10 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64 |
Design
| Specification | Value |
|---|---|
| International Protection (IP) code | IP30 |
Logistics data
| Specification | Value |
|---|---|
| Export Control Classification Number (ECCN) | 5A991.b |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, HTTP, RFC2217 |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7 / Server 2008 /Vista /XP 32 bit & 64 bit Windows 2000 OS’s & Linux |
