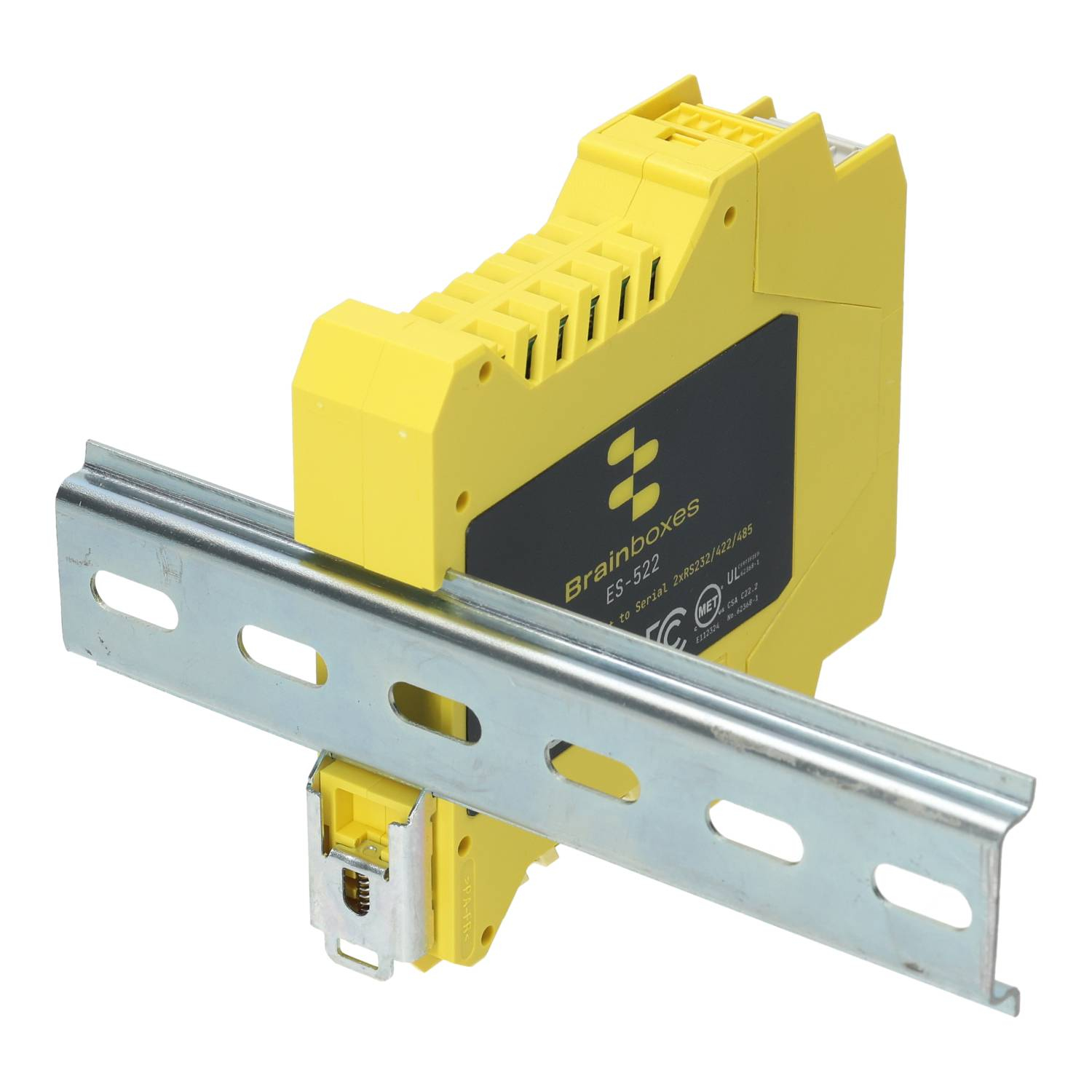

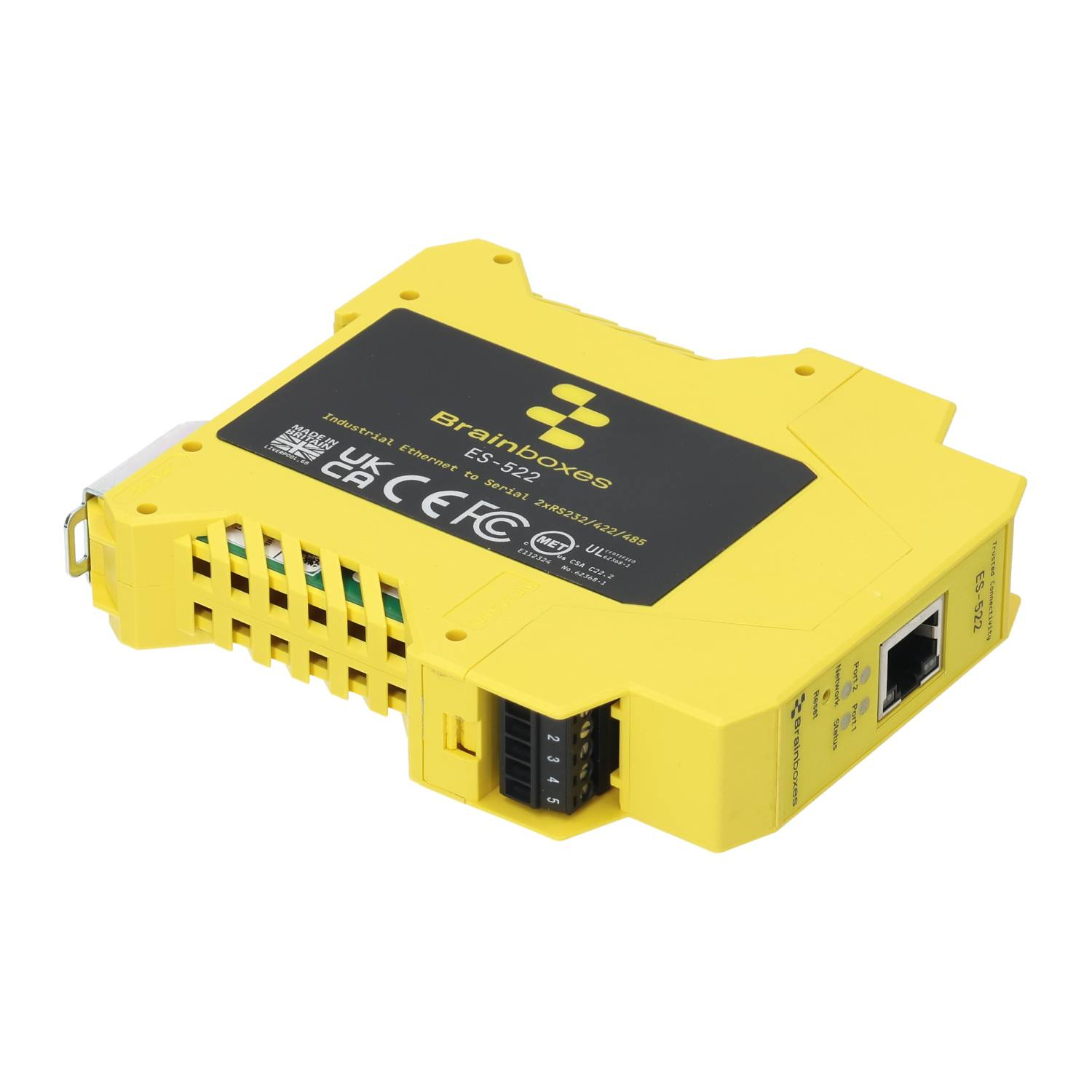

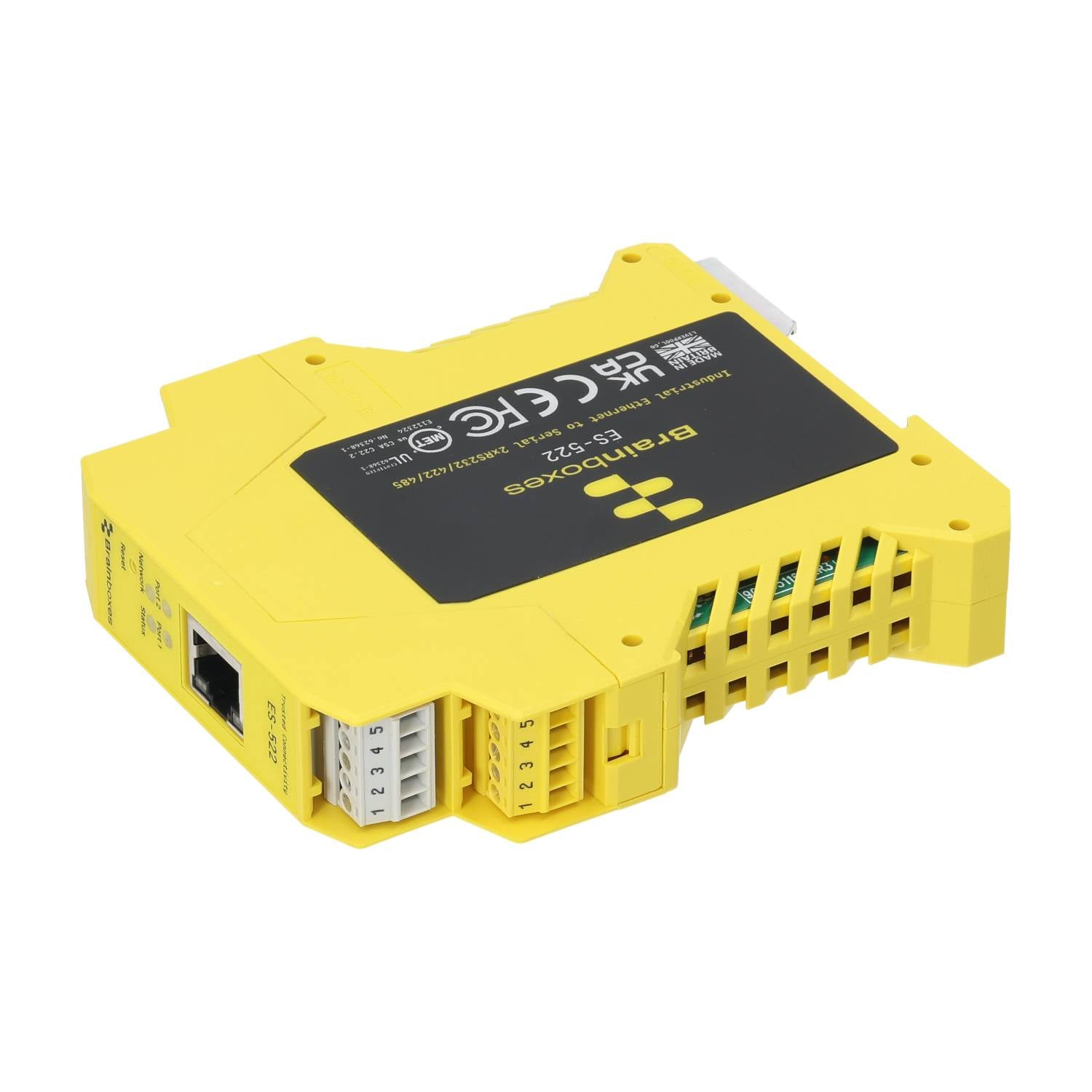

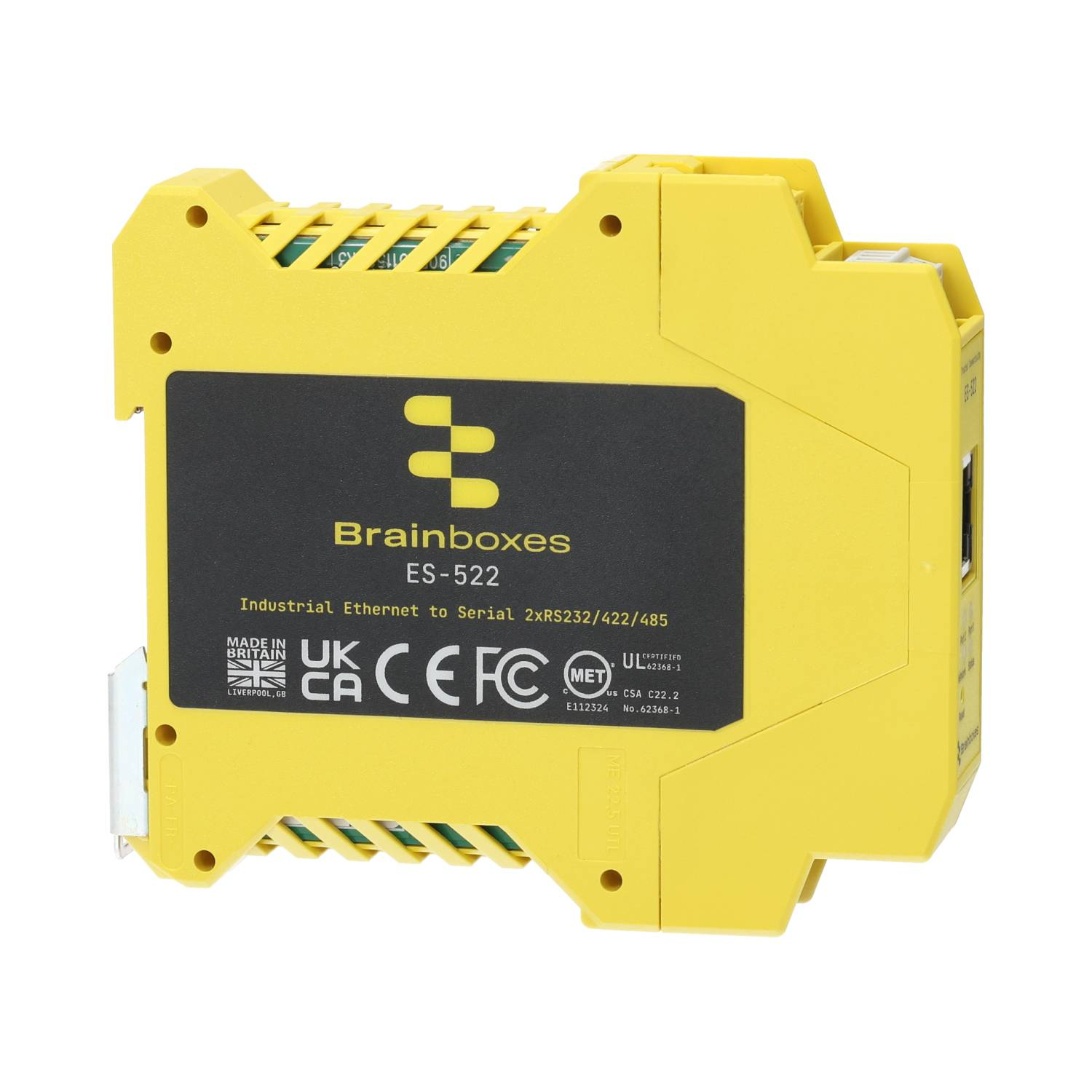

ES-522 Industrial Ethernet to Serial 2xRS232/422/485
Model ES-522 Industrial Ethernet to Serial 2xRS232/422/485Part no. ES-522EAN 132017848631
29 specifications
- Weight113 g
- ColourYellow
- Serial ports quantity2
- Ethernet LANYes
- Power consumption (max)2.9 W
- Width105 mm
Overview
- Weight
- 113 g
- Colour
- Yellow
- Serial ports quantity
- 2
- Ethernet LAN
- Yes
- Power consumption (max)
- 2.9 W
- Width
- 105 mm
- Brand
- Brainboxes
- Category
- Serial Server
- Model
- ES-522 Industrial Ethernet to Serial 2xRS232/422/485
- Part number
- ES-522
- EAN / UPC
- 132017848631, 837324002614, 8373240026140, 8716065295382
- Also known as
- Brainboxes ES-522 Industrial Ethernet to Serial 2xRS232/422/485
Specifications
29 specifications in 9 groups
Technical details
| Specification | Value |
|---|---|
| Serial ports quantity | 2 |
| Compliance certificates | CE, Federal Communications Commission (FCC), KCC, UKCA, UL |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
| Serial interface type | RS-232, RS-422/485 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Cabling technology | 10/100BaseT(X) |
Design
| Specification | Value |
|---|---|
| Product colour | Yellow |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 2.9 W |
| Power consumption (typical) | 1.4 W |
| Input voltage | 5 - 30 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 115 mm |
| Height | 23 mm |
| Weight | 113 g |
| Package width | 135 mm |
| Package depth | 160 mm |
| Package height | 49 mm |
| Package weight | 206 g |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows XP, Windows Vista x64, Windows Vista, Windows 7 x64, Windows 7, Windows 8, Windows 8 x64, Windows 10 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
| Export Control Classification Number (ECCN) | 5A991.b |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -30 - 80 °C |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | Windows XP/Vista/Server 2007/Server 2008/7/8 Linux |
