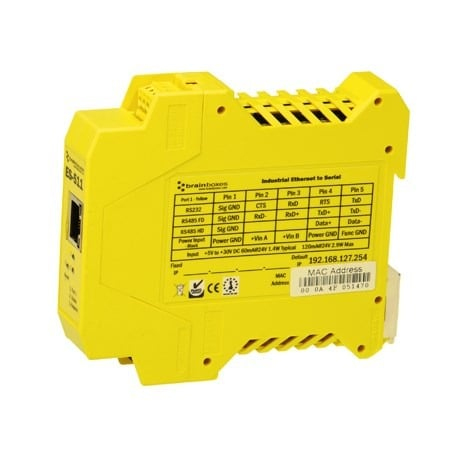

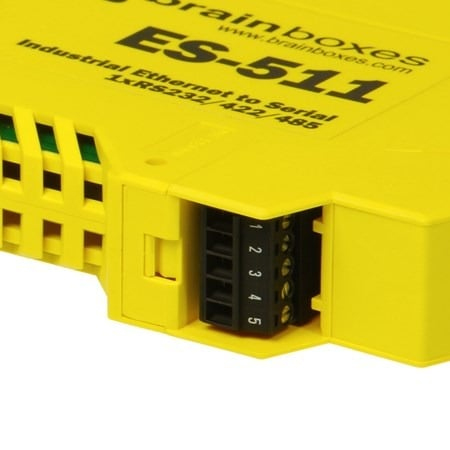

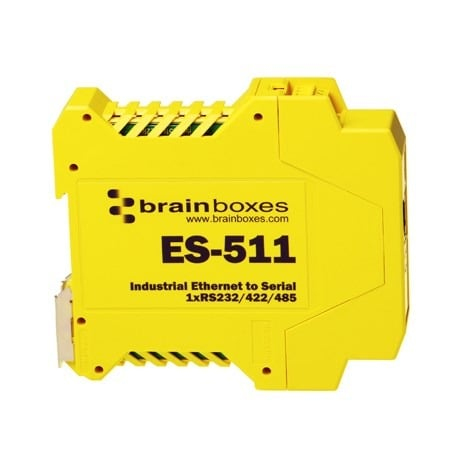

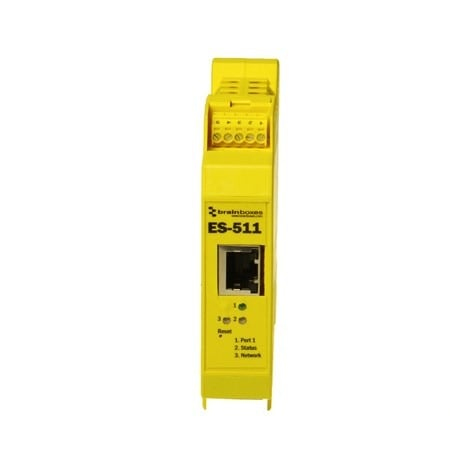

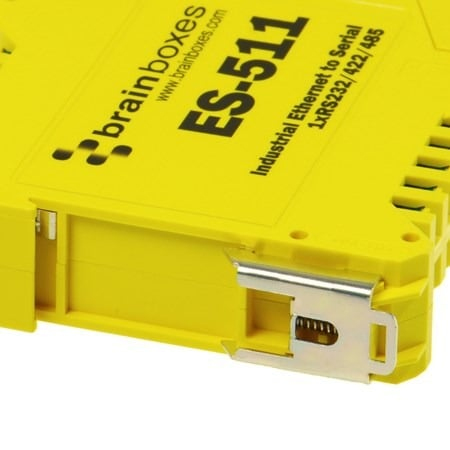

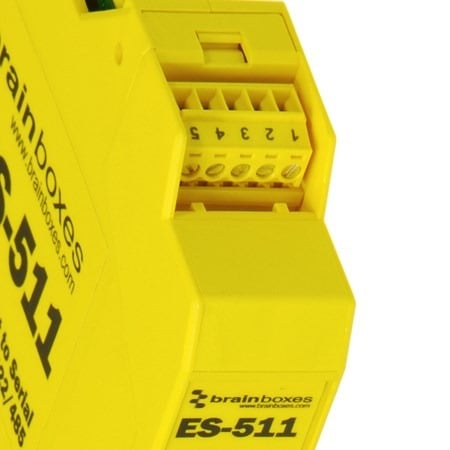

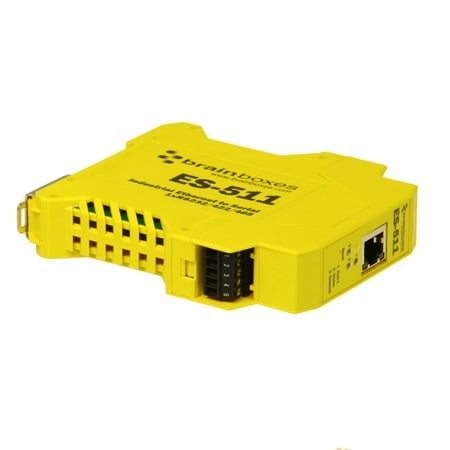

ES-511 Industrial Ethernet to Serial 1xRS232/422/485
Model ES-511 Industrial Ethernet to Serial 1xRS232/422/485Part no. ES-511EAN 186860082933
39 specifications
- Weight103 g
- ColourYellow
- Serial ports quantity1
- LED indicatorsYes
- Power consumption (max)2.9 W
- Width105 mm
Overview
- Weight
- 103 g
- Colour
- Yellow
- Serial ports quantity
- 1
- LED indicators
- Yes
- Power consumption (max)
- 2.9 W
- Width
- 105 mm
- Brand
- Brainboxes
- Category
- Serial Server
- Model
- ES-511 Industrial Ethernet to Serial 1xRS232/422/485
- Part number
- ES-511
- EAN / UPC
- 186860082933, 837324002607, 8373240026072, 8716065295375
- Also known as
- Brainboxes ES-511 Industrial Ethernet to Serial 1xRS232/422/485
Specifications
39 specifications in 10 groups
Technical details
| Specification | Value |
|---|---|
| Serial ports quantity | 1 |
| Baud rate | 1000 Kbit/s |
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA, UL |
| Data bits | 5, 6, 7, 8 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow Control type | XON/XOFF, RTS/CTS |
| Flow control support | Yes |
| Parity bit | Even, Odd, Mark, Space |
| Serial interface type | RS-232/422/485 |
| Stop bits | 1, 1.5, 2 |
| Certification | RoHS, WEEE, FCC, UL, METL, TAA, AEO |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Cabling technology | 10/100Base-T(X) |
Indication
| Specification | Value |
|---|---|
| LED indicators | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Yellow |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 2.9 W |
| Power consumption (typical) | 1.4 W |
| Input voltage | 5 - 30 V |
| Power consumption | 60 mA |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 115 mm |
| Height | 23 mm |
| Weight | 103 g |
| Dimensions (WxDxH) | 96.3 x 101 x 25 mm |
| Package width | 135 mm |
| Package depth | 160 mm |
| Package length | 11.4 cm |
| Package height | 49 mm |
| Package weight | 196 g |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows XP, Windows Vista x64, Windows Vista, Windows 8, Windows 8 x64, Windows 7, Windows 7 x64, Windows 10 |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
| Export Control Classification Number (ECCN) | 5A991.b |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 80 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, HTTP, RFC2217 |
