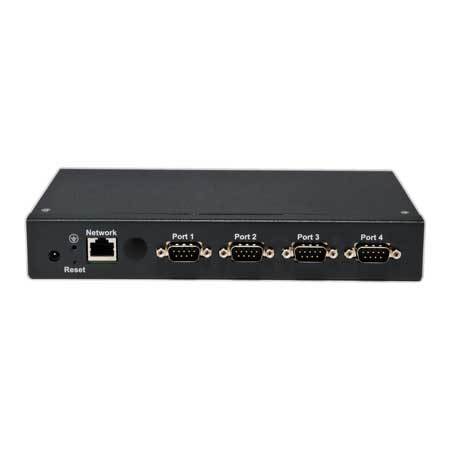

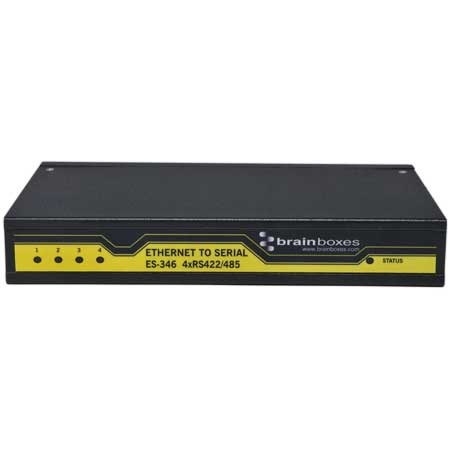

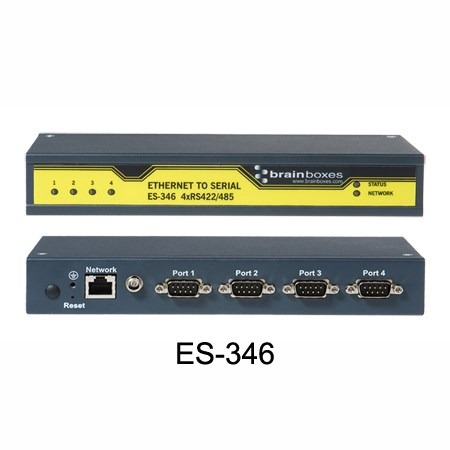

ES-346 4 Port RS422/485 Ethernet to Serial Adapter
Model ES-346 4 Port RS422/485 Ethernet to Serial AdapterPart no. ES-346EAN 837324002676
40 specifications
- Weight700 g
- ColourBlack
- Serial ports quantity4
- USB 2.0 ports quantity0
- LED indicatorsYes
- Power consumption (typical)1.45 W
Overview
- Weight
- 700 g
- Colour
- Black
- Serial ports quantity
- 4
- USB 2.0 ports quantity
- 0
- LED indicators
- Yes
- Power consumption (typical)
- 1.45 W
- Brand
- Brainboxes
- Category
- Serial Server
- Model
- ES-346 4 Port RS422/485 Ethernet to Serial Adapter
- Part number
- ES-346
- EAN / UPC
- 837324002676, 8373240026768, 8716065295054
- Also known as
- Brainboxes ES-346 4 Port RS422/485 Ethernet to Serial Adapter
Specifications
40 specifications in 11 groups
Technical details
| Specification | Value |
|---|---|
| Serial ports quantity | 4 |
| Baud rate | 1000 Kbit/s |
| Compliance certificates | CE, Federal Communications Commission (FCC), UKCA, UL |
| Data bits | 6, 7, 8, 5 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow Control type | RTS/CTS, XON/XOFF |
| Flow control support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Parity bit | Odd, Even, Mark, No, Space |

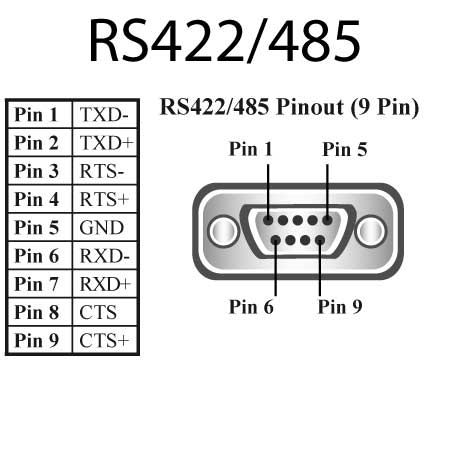

| Serial interface type | RS-422/485 |
| Stop bits | 1, 1.5, 2 |
| Certification | AEO WEEE RoHS EMC: CE TAA |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Cabling technology | 10/100Base-T(X) |
Indication
| Specification | Value |
|---|---|
| LED indicators | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Safety | IP-30 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.45 W |
| Input voltage | 5 - 30 V |

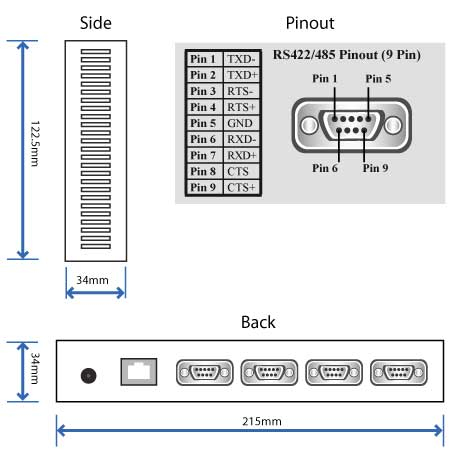

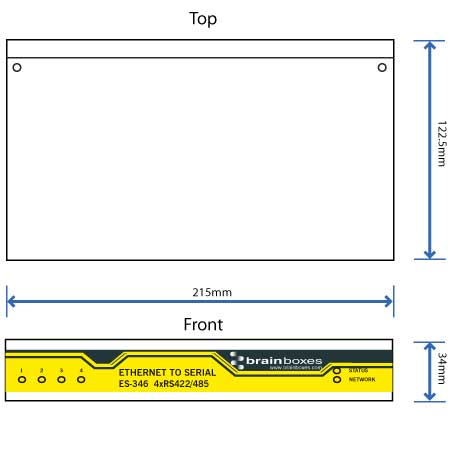

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 123 mm |
| Depth | 215 mm |
| Height | 34 mm |
| Weight | 700 g |
| Dimensions (WxDxH) | 215 x 122.5 x 34 mm |
| Package width | 135 mm |
| Package depth | 300 mm |
| Package height | 80 mm |
| Package weight | 997 g |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
| Export Control Classification Number (ECCN) | 5A991.b |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 85 °C |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, HTTP, RFC2217 |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7 / Server 2008 /Vista /XP 32 bit & 64 bit Windows 2000 OS’s & Linux |
