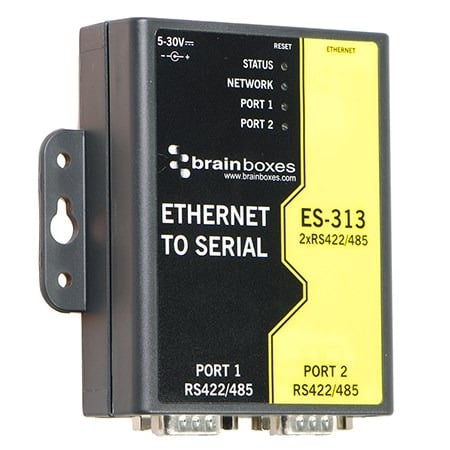

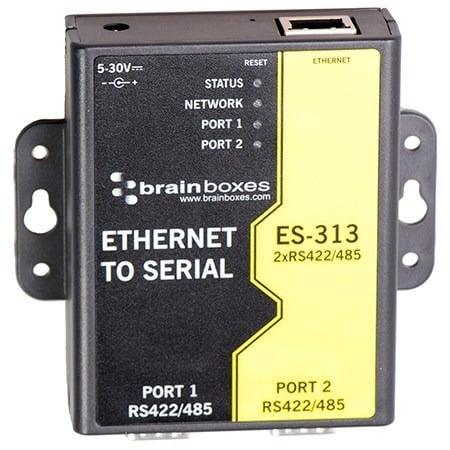

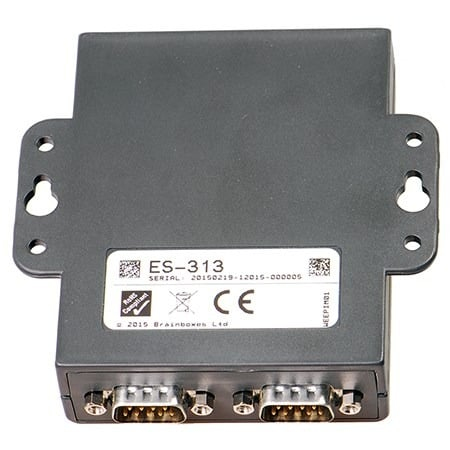

ES-313 2 Port RS422/485 Ethernet to Serial Adapter
Model ES-313 2 Port RS422/485 Ethernet to Serial AdapterPart no. ES-313EAN 7426101634648
25 specifications
- Weight129 g
- ColourBlack, Yellow
- Serial ports quantity2
- Ethernet LAN (RJ-45) ports1
- Power consumption (max)2.6 W
- Width105 mm
Overview
- Weight
- 129 g
- Colour
- Black, Yellow
- Serial ports quantity
- 2
- Ethernet LAN (RJ-45) ports
- 1
- Power consumption (max)
- 2.6 W
- Width
- 105 mm
- Brand
- Brainboxes
- Category
- Serial Server
- Model
- ES-313 2 Port RS422/485 Ethernet to Serial Adapter
- Part number
- ES-313
- EAN / UPC
- 7426101634648, 837324002294, 5053606852707, 8373240022944 +1 more
- Also known as
- Brainboxes ES-313 2 Port RS422/485 Ethernet to Serial Adapter
Specifications
25 specifications in 10 groups
Technical details
| Specification | Value |
|---|---|
| Serial ports quantity | 2 |
| Compliance certificates | CE, Federal Communications Commission (FCC), UL, UKCA |
| Flow control support | Yes |
| Serial interface type | RS-422/485 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Yellow |
Power
| Specification | Value |
|---|---|
| Power consumption (max) | 2.6 W |
| Power consumption (typical) | 1.06 W |
| Input voltage | 5 - 30 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 106 mm |
| Height | 28 mm |
| Weight | 129 g |
| Dimensions (WxDxH) | 101 x 100 x 26 mm |
| Package width | 135 mm |
| Package depth | 200 mm |
| Package height | 80 mm |
| Package weight | 467 g |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7 x64, Windows 7, Windows XP, Windows Vista x64, Windows Vista |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
| Export Control Classification Number (ECCN) | 5A991.b |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 60 °C |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | TCP/IP |
Other features
| Specification | Value |
|---|---|
| Compatible operating systems | Windows XP 32 bit & 64 bit Windows Vista 32 bit & 64 bit Windows 2000 Windows Server 2003 32 bit & 64 bit Windows Server 2008 32 bit & 64 bit Windows 7 32 bit & 64 bit |
