ES-279 8 Port RS232 Ethernet to Serial Adapter
Model ES-279 8 Port RS232 Ethernet to Serial AdapterPart no. ES-279EAN 8716065295023
30 specifications
- Weight824 g
- Serial ports quantity8
- Ethernet LAN (RJ-45) ports1
- LED indicatorsYes
- Power consumption (typical)1.93 W
- Width132 mm
Overview
- Weight
- 824 g
- Serial ports quantity
- 8
- Ethernet LAN (RJ-45) ports
- 1
- LED indicators
- Yes
- Power consumption (typical)
- 1.93 W
- Width
- 132 mm
- Brand
- Brainboxes
- Category
- Serial Server
- Model
- ES-279 8 Port RS232 Ethernet to Serial Adapter
- Part number
- ES-279
- EAN / UPC
- 8716065295023, 115971197762, 131291514423, 132017848860 +5 more
- Also known as
- Brainboxes ES-279 8 Port RS232 Ethernet to Serial Adapter
Specifications
30 specifications in 10 groups
Technical details
| Specification | Value |
|---|---|
| Serial ports quantity | 8 |
| Baud rate | 1000000 Kbit/s |
| Compliance certificates | CE, Federal Communications Commission (FCC), KCC, UKCA, UL |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow control support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u |

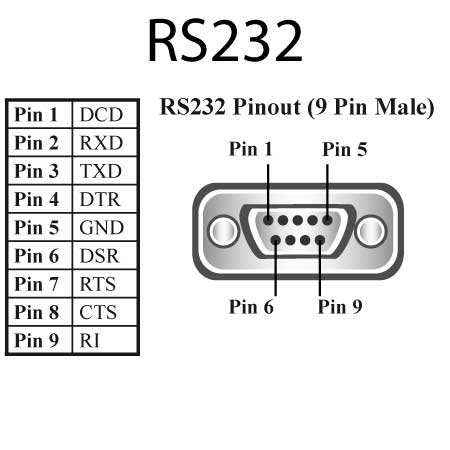

| RS-232 signals | CTS, DSR, DTR, RTS |
| Serial interface type | RS-232 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
| Cabling technology | 10/100Base-T(X) |
Indication
| Specification | Value |
|---|---|
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 1.93 W |
| Input voltage | 5 - 30 V |

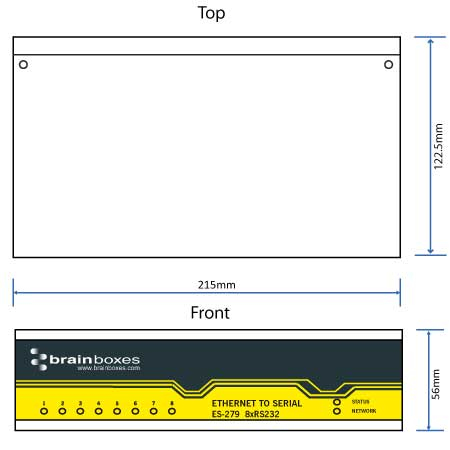

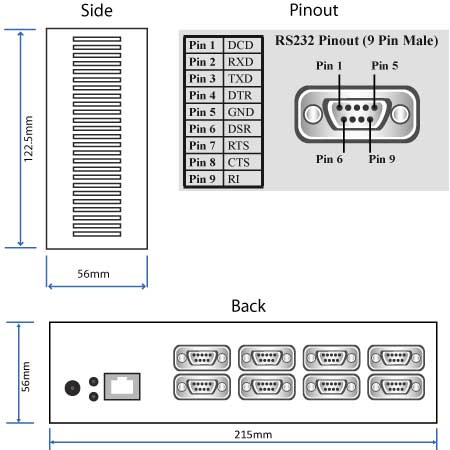

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 132 mm |
| Depth | 215 mm |
| Height | 56 mm |
| Weight | 824 g |
| Dimensions (WxDxH) | 122.5 x 215 x 56 mm |
| Package width | 135 mm |
| Package depth | 300 mm |
| Package height | 80 mm |
| Package weight | 1.2 kg |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 7, Windows 8, Windows 8 x64, Windows 7 x64, Windows 10, Windows XP, Windows Vista, Windows Vista x64 |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
| Export Control Classification Number (ECCN) | 5A991.b |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | TCP/IP |
Design
| Specification | Value |
|---|---|
| Safety | IP-30 |
