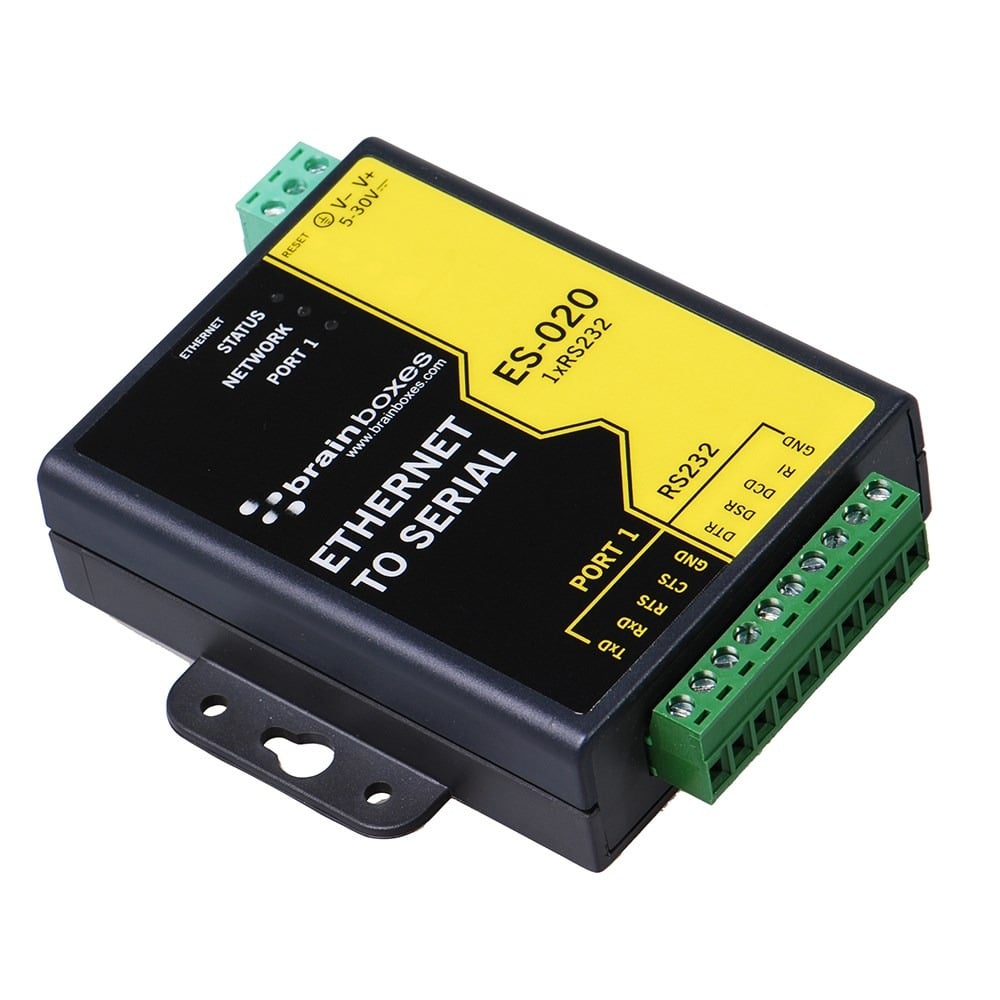

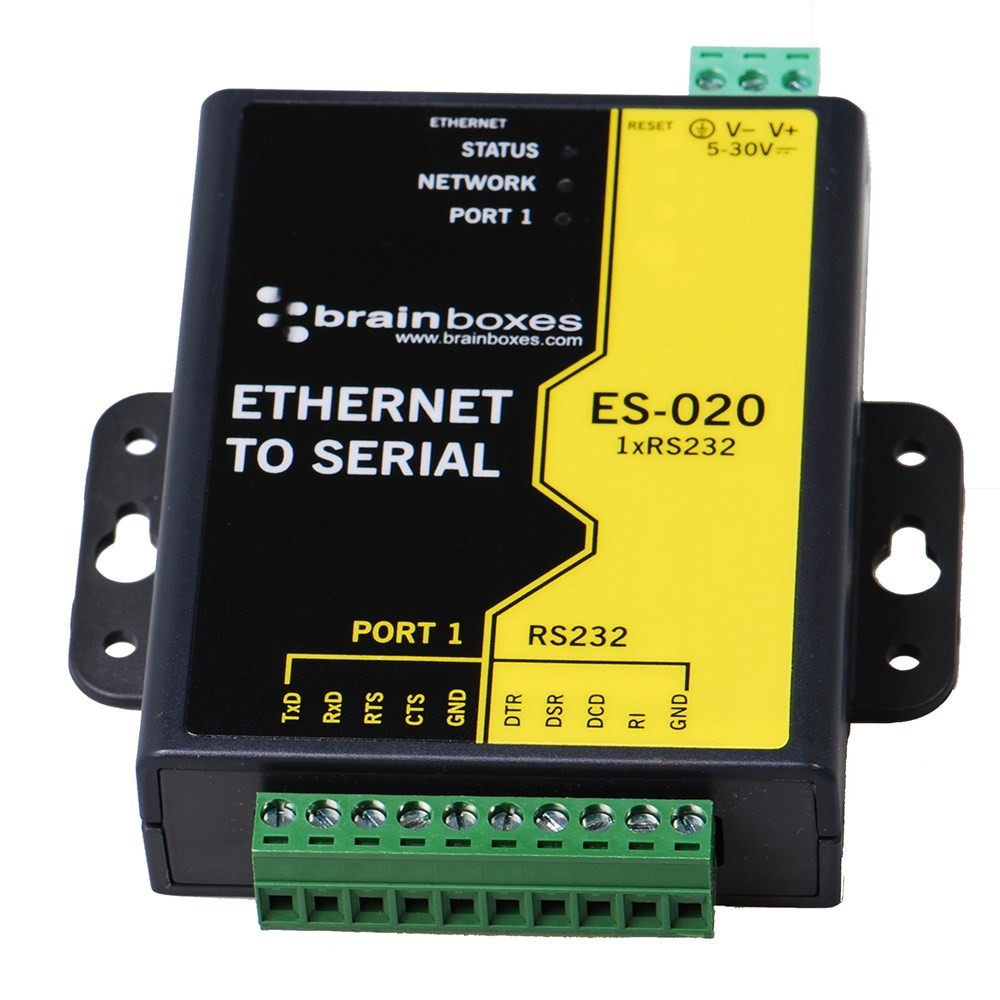

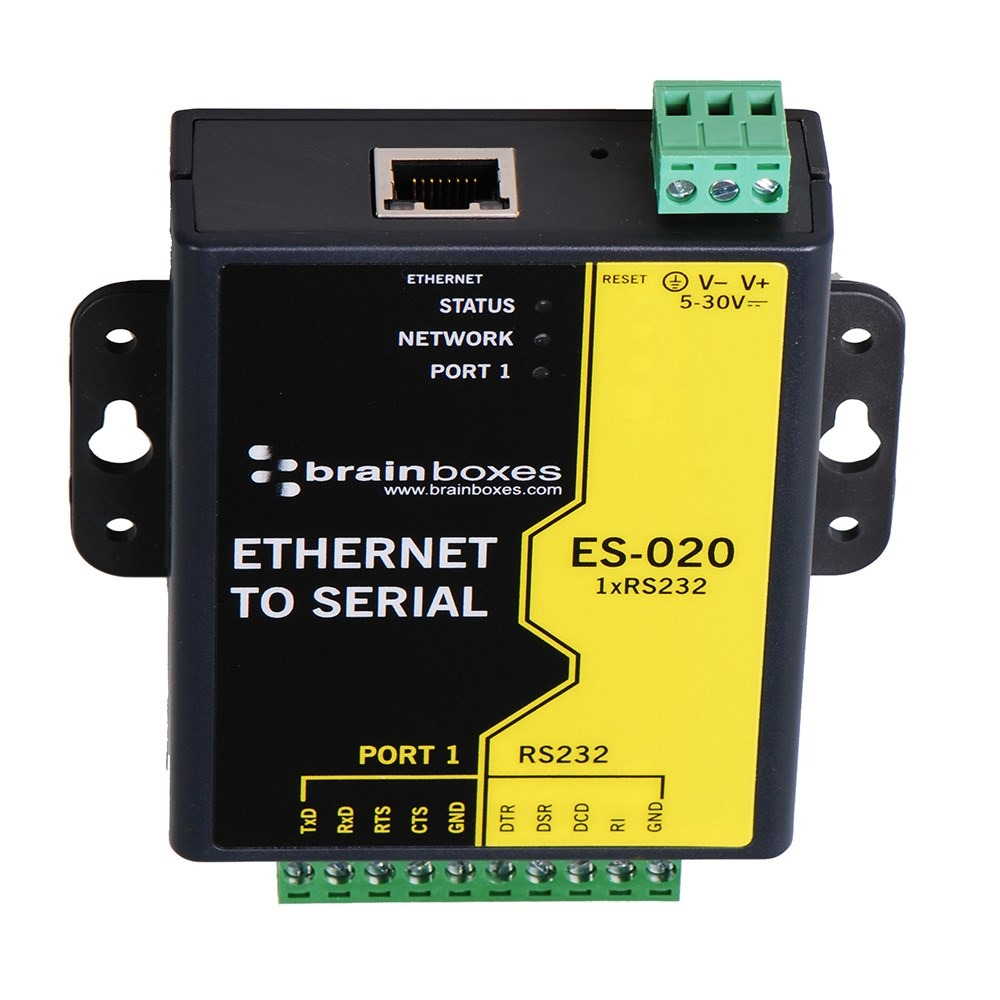

ES-020 Ethernet 1 Port RS232 10xScrew Terminals
Model ES-020 Ethernet 1 Port RS232 10xScrew TerminalsPart no. ES-020EAN 837324002591
38 specifications
- Weight225 g
- ColourBlack, Yellow
- Serial ports quantity1
- Terminal block portYes
- Power source typeDC
- Width135 mm
Overview
- Weight
- 225 g
- Colour
- Black, Yellow
- Serial ports quantity
- 1
- Terminal block port
- Yes
- Power source type
- DC
- Width
- 135 mm
- Brand
- Brainboxes
- Category
- Serial Server
- Model
- ES-020 Ethernet 1 Port RS232 10xScrew Terminals
- Part number
- ES-020
- EAN / UPC
- 837324002591, 5054629794838, 8373240025914, 8716065295399
- Also known as
- Brainboxes ES-020 Ethernet 1 Port RS232 10xScrew Terminals
Specifications
38 specifications in 10 groups
Technical details
| Specification | Value |
|---|---|
| Serial ports quantity | 1 |
| Auto MDI/MDI-X | Yes |
| Baud rate | 1000 Kbit/s |
| Compliance certificates | RoHS, CE, Federal Communications Commission (FCC), UKCA, UL |
| Data bits | 5, 6, 7, 8 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow Control type | DTR/DSR, RTS/CTS, XON/XOFF |
| Flow control support | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3u |
| Serial interface type | RS-232 |
| Stop bits | 1, 2 |
| Certification | CE |
Ports & interfaces
| Specification | Value |
|---|---|
| Terminal block port | Yes |
| Cabling technology | 10/100Base-T(X) |
Indication
| Specification | Value |
|---|---|
| LED indicators | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black, Yellow |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Input voltage | 5 - 30 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 135 mm |
| Depth | 160 mm |
| Height | 49 mm |
| Weight | 225 g |
| Package width | 135 mm |
| Package depth | 160 mm |
| Package length | 11.6 cm |
| Package height | 49 mm |
| Package weight | 225 g |
Software
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Busines |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2008, Windows Server 2008 x64 |
Logistics data
| Specification | Value |
|---|---|
| Country of origin | United Kingdom |
| Export Control Classification Number (ECCN) | 5A991.b |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -10 - 60 °C |
| Storage temperature (T-T) | -20 - 85 °C |
Protocols
| Specification | Value |
|---|---|
| Supported network protocols | ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, HTTP, RFC2217 |
