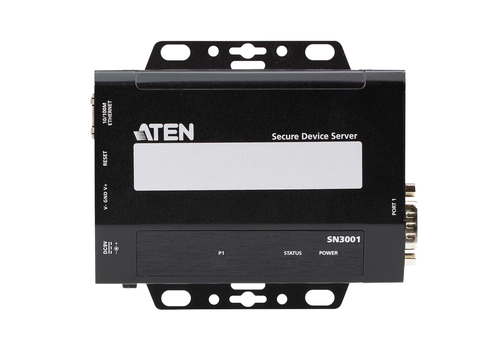

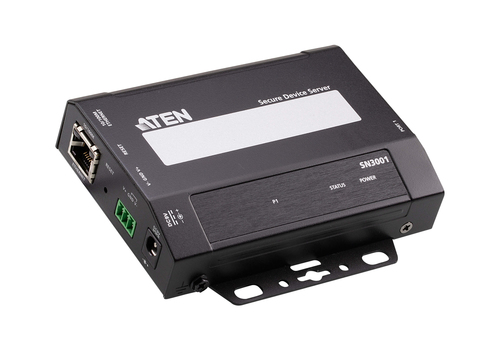

SN3001-AX-U serial server RS-232
Model SN3001-AX-U
28 specifications
- Weight200 g
- ColourBlack
- Serial ports quantity1
- LED indicatorsLAN, Power, Status
- Power source typeDC, PoE
- Operating relative humidity (H-H)5 - 95%
Overview
- Weight
- 200 g
- Colour
- Black
- Serial ports quantity
- 1
- LED indicators
- LAN, Power, Status
- Power source type
- DC, PoE
- Operating relative humidity (H-H)
- 5 - 95%
- Brand
- ATEN
- Category
- Serial Server
- Model
- SN3001-AX-U
- Part number
- SN3001-AX-U
- Also known as
- ATEN SN3001-AX-U serial server RS-232
Specifications
28 specifications in 8 groups
Technical details
| Specification | Value |
|---|---|
| Serial ports quantity | 1 |
| Baud rate | 921.6 Kbit/s |
| Compliance certificates | RoHS |
| Data bits | 5, 6, 7, 8 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Flow Control type | DTR/DSR, RTS/CTS, XON/XOFF |
| Isolation | 1.5 kV |
| Parity bit | Even, Mark, No, Odd, Space |
| RS-232 signals | CTS, DCD, DSR, DTR, GND, RTS, RXD, TXD |

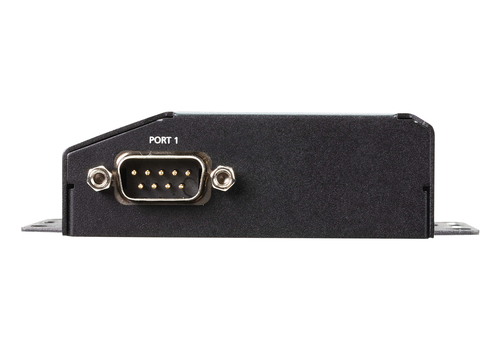

| Serial interface type | RS-232 |
| Stop bits | 1, 1.5, 2 |
| Certification | EMC: EN 55032/35 EMI: CISPR 32, FCC 15B A EMS: IEC 61000-4-2 IEC 61000-4-3 IEC 61000-4-4 IEC 61000-4-5 IEC 61000-4-6 IEC 61000-4-8 IEC 61000-4-11 |

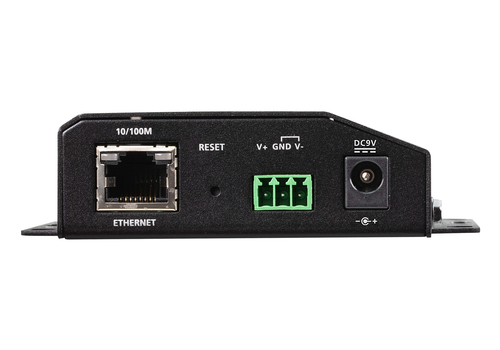

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Cabling technology | 10/100Base-T(X) |
Indication
| Specification | Value |
|---|---|
| LED indicators | LAN, Power, Status |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
| Safety | UL 60950-1, UL 62368-1 |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Input voltage | 9/48 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 200 g |
| Dimensions (WxDxH) | 98 x 117 x 26 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 75 °C |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| User guide | Yes |
