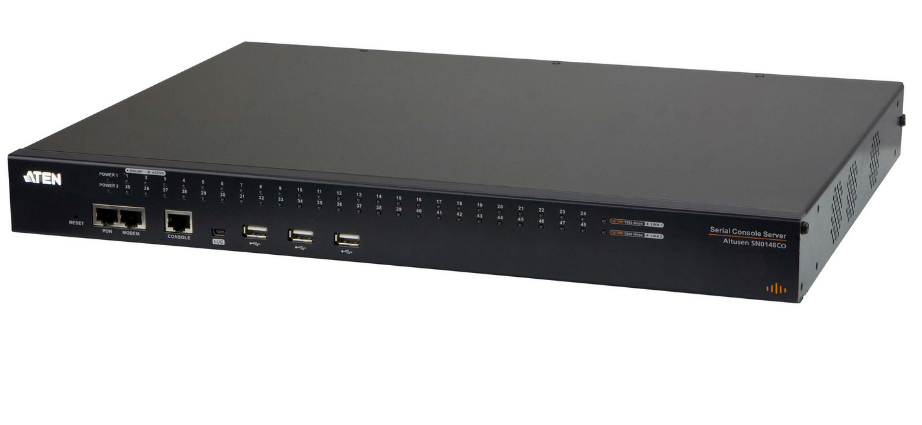

SN0148COD serial server
Model SN0148CODEAN 672792009693
21 specifications
- Weight4.92 kg
- ColourBlack
- Serial ports quantity48
- USB 2.0 ports quantity4
- LED indicatorsYes
- Power source typeAC
Overview
- Weight
- 4.92 kg
- Colour
- Black
- Serial ports quantity
- 48
- USB 2.0 ports quantity
- 4
- LED indicators
- Yes
- Power source type
- AC
- Brand
- ATEN
- Category
- Serial Server
- Model
- SN0148COD
- Part number
- SN0148COD
- EAN / UPC
- 672792009693
- Also known as
- ATEN SN0148COD serial server
Specifications
21 specifications in 9 groups
Technical details
| Specification | Value |
|---|---|
| Serial ports quantity | 48 |
| Compliance certificates | RoHS |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
Ports & interfaces
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| Cabling technology | 10/100/1000Base-T(X) |
Indication
| Specification | Value |
|---|---|
| LED indicators | Yes |
Design
| Specification | Value |
|---|---|
| Product colour | Black |
| Housing material | Metal |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Input voltage | 100 - 240 V |
| Input frequency | 50/60 Hz |
| Input current | 1.8 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.92 kg |
| Dimensions (WxDxH) | 438.4 x 327.7 x 44 mm |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 80% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
Packaging content
| Specification | Value |
|---|---|
| Wall mounting kit | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | 802.1x RADIUS, SSH, SSL/TLS |
