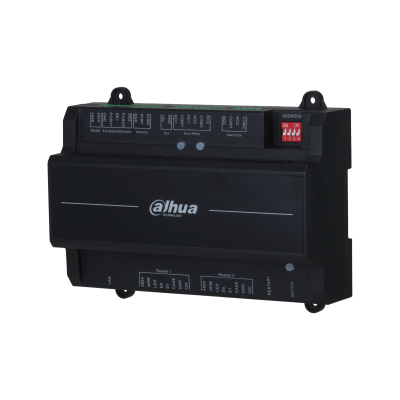

DHI-ASC2202B-S security door controller Bare 2 door(s) RJ-45 / RS-485
Model DHI-ASC2202B-SPart no. ASC2202B-SEAN 6939554993398
27 specifications
- ConnectivityRJ-45 / RS-485
- Weight400 g
- Case designBare
- Ethernet LANYes
- Operating voltage12 V
- Ethernet LAN (RJ-45) ports1
Overview
- Connectivity
- RJ-45 / RS-485
- Weight
- 400 g
- Case design
- Bare
- Ethernet LAN
- Yes
- Operating voltage
- 12 V
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Dahua Technology
- Category
- Security Door Controller
- Model
- DHI-ASC2202B-S
- Part number
- ASC2202B-S
- EAN / UPC
- 6939554993398
- Also known as
- Dahua Technology DHI-ASC2202B-S security door controller Bare 2 door(s) RJ-45 / RS-485
Specifications
27 specifications in 7 groups
Technical details
| Specification | Value |
|---|---|
| Case design | Bare |
| Maximum number of doors | 2 door(s) |
| Built-in UPS | No |
| Interface | RJ-45 / RS-485 |
| Exit button supported | Yes |
| Number of users | 100000 user(s) |
Performance
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wiegand interface | Yes |
| Number of Wiegand readers supported | 2 |
| Alarm input channels | 2 |
| Certification | CE/FCC/UL |
Power
| Specification | Value |
|---|---|
| Operating voltage | 12 V |
| Operating current | 1 A |
| Power consumption (typical) | 24 W |
| DC voltage range | 12 V |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 3 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 106 mm |
| Height | 50 mm |
| Weight | 400 g |
| Width | 155 mm |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 141 mm |
| Package height | 87 mm |
| Package width | 190 mm |
