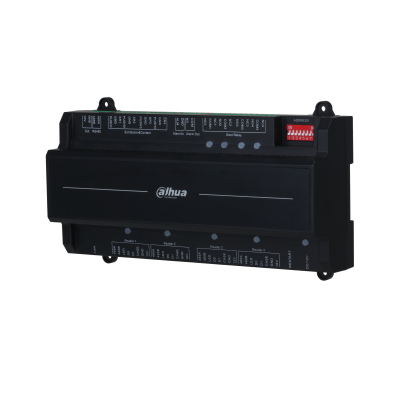

ASC2204B-S security door controller Bare 4 door(s) RS-485
Model ASC2204B-SPart no. DHI-ASC2204B-SEAN 6939554993411
26 specifications
- ConnectivityRS-485
- Case designBare
- Wiegand interfaceYes
- Operating voltage12 V
- RS-485 ports5
- Operating temperature (T-T)-30 - 60 °C
Overview
- Connectivity
- RS-485
- Case design
- Bare
- Wiegand interface
- Yes
- Operating voltage
- 12 V
- RS-485 ports
- 5
- Operating temperature (T-T)
- -30 - 60 °C
- Brand
- Dahua Technology
- Category
- Security Door Controller
- Model
- ASC2204B-S
- Part number
- DHI-ASC2204B-S
- EAN / UPC
- 6939554993411
- Also known as
- Dahua Technology ASC2204B-S security door controller Bare 4 door(s) RS-485
Specifications
26 specifications in 7 groups
Technical details
| Specification | Value |
|---|---|
| Case design | Bare |
| Maximum number of doors | 4 door(s) |
| Built-in UPS | No |
| Interface | RS-485 |
| Exit button supported | Yes |
| Number of users | 100000 user(s) |
| Supported network protocols | IPv4; TCP; UDP |
Performance
| Specification | Value |
|---|---|
| Wiegand interface | Yes |
| Number of Wiegand readers supported | 4 |
| Alarm input channels | 1 |
| Active tampering alarm | Yes |
| Certification | CE/FCC/UL |
Power
| Specification | Value |
|---|---|
| Operating voltage | 12 V |
| Operating current | 1.4 A |
| Power consumption (typical) | 41.6 W |
| Power consumption (no load) | 0.8 W |
Ports & interfaces
| Specification | Value |
|---|---|
| RS-485 ports | 5 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Depth | 50 mm |
| Height | 106 mm |
| Width | 210 mm |
Packaging data
| Specification | Value |
|---|---|
| Package depth | 87 mm |
| Package height | 166 mm |
| Package weight | 600 g |
| Package width | 255 mm |
