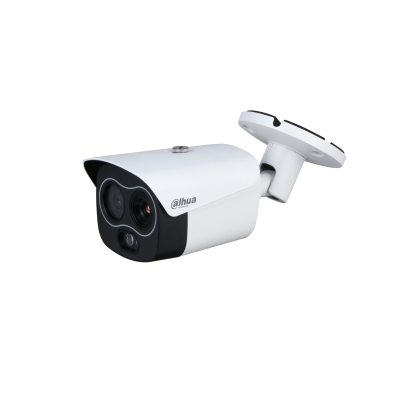

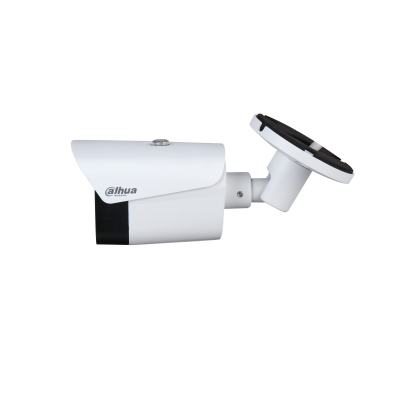

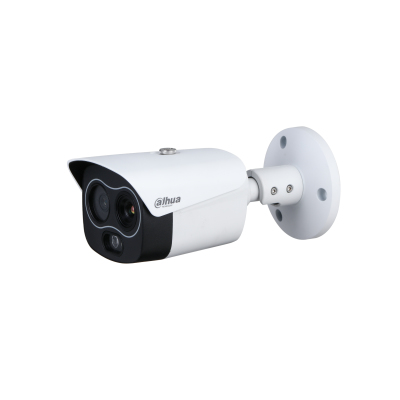

Dahua Technology Pro TPC-BF1241 Bullet IP security camera Indoor & outdoor
Dahua Technology

Pro TPC-BF1241 Bullet IP security camera Indoor & outdoor

2336 x 1752 pixels Wall

Model TPC-BF1241Part no. TPC-BF1241-D3F4

76 specifications
  • ConnectivityWired & Wireless
  • TypeIP security camera
  • Weight900 g
  • ColourWhite
  • Form factorBullet
  • Minimum illumination0 lx
See all specifications

Overview

Connectivity
Wired & Wireless
Type
IP security camera
Weight
900 g
Colour
White
Form factor
Bullet
Minimum illumination
0 lx
Brand
Dahua Technology
Model
TPC-BF1241
Part number
TPC-BF1241-D3F4
Also known as
Dahua Technology Pro TPC-BF1241 Bullet IP security camera Indoor & outdoor 2336 x 1752 pixels Wall

Specifications

76 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired & Wireless
Maximum operating distance150 m
Day/night modeYes
Alarm input/outputYes
CertificationCE, FCC

Design

Form factorBullet
Mounting typeWall
Product colourWhite
International Protection (IP) codeIP67

Camera

Minimum illumination0 lx
Lens viewing angle, horizontal71.2°
Lens viewing angle, vertical52°
Lens viewing angle, diagonal92.6°
White balanceAuto, Indoor, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/30000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")

Lens system

Zoom capabilityYes
Digital zoom16x
Maximum aperture number1.6
Closest focusing distance1 m
Fixed focal length4 mm
Infrared spectral band8 - 14 µm

Night vision

Night visionYes
Night vision distance30 m

Video

Maximum resolution2336 x 1752 pixels
Total megapixels4 MP
Frame rate60 fps
Noise reductionYes
Noise reduction technology3D noise reduction
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)55 dB

Network

Ethernet LANYes
Wi-FiYes
BluetoothNo
Supported network protocolsHTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP
Wi-Fi standards802.11a, 802.11b, 802.11g
Wi-Fi data rate (max)150 Mbit/s
Number of users10 user(s)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB

Ports & interfaces

RS-485 ports1

Security

Password protectionYes
Password protection typeUser
HTTPS encryptionYes
IP address filteringYes
Security algorithms802.1x RADIUS, HTTPS

Management features

Web-based managementYes

Power

Power source typeDC, PoE
Power consumption (typical)8 W
Power consumption (max)14 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 70 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width205.5 mm
Depth90.4 mm
Height90.1 mm
Weight900 g

Packaging data

Package width279 mm
Package depth187 mm
Package height138 mm
Package weight1.3 kg

Packaging content

Number of cameras1
