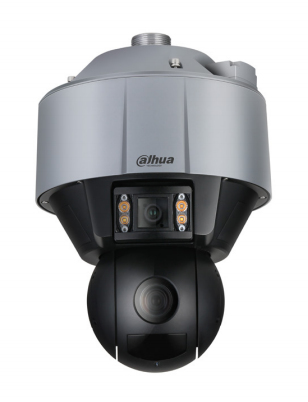

Dahua Technology WizMind SDT5X405-4F-WA security camera Turret IP security camera Indoor & outdoor
Dahua Technology

WizMind SDT5X405-4F-WA security camera Turret IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling/wall

Model SDT5X405-4F-WA

74 specifications
  • Memory4096 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight9 kg
  • ColourBlack, Grey
  • Form factorTurret
See all specifications

Overview

Memory
4096 MB
Connectivity
Wired
Type
IP security camera
Weight
9 kg
Colour
Black, Grey
Form factor
Turret
Brand
Dahua Technology
Model
SDT5X405-4F-WA
Part number
SDT5X405-4F-WA
Also known as
Dahua Technology WizMind SDT5X405-4F-WA security camera Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

74 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4-2014

Design

Form factorTurret
Mounting typeCeiling/wall
Product colourBlack, Grey
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0001 lx
Lens viewing angle, horizontal45°
Lens viewing angle, vertical26°
Lens viewing angle, diagonal51°
Tilt angle range-10 - 90°
Pan range0 - 250°
White balanceAuto, Indoor, Lamp, Manual, Natural, Outdoor, Sodium lamp
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/100000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Number of effective pixels (H x V)2688 x 1520 pixels

Lens system

Zoom capabilityYes
Optical zoom5x
Digital zoom16x
Focal length range10 - 50 mm
FocusMotorized/Manual
Maximum aperture number1.5

Night vision

Night visionYes
LED typeIR

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions1920 x 1080 (HD 1080), 2560 x 1440, 2688 x 1520
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction, Ultra 2D noise reduction
Image stabilizerYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate2816 - 13056
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; SNMPv1/v2c/ v3(MIB-2); RTCP
Number of users20 user(s)

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
Internal memory4096 MB
ROM capacity8000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Motion sensorYes

Management features

Management softwareSmartPSS/DSS/NVR

Power

Power source typeDC, PoE
Power consumption (typical)12 W
Power consumption (max)40 W
DC output voltage36
DC output current2.23 A

Operational conditions

Operating temperature (T-T)-40 - 70 °C

Weight & dimensions

Width277 mm
Depth277 mm
Height385 mm
Weight9 kg

Packaging data

Package weight13.8 kg

Packaging content

Number of cameras1
