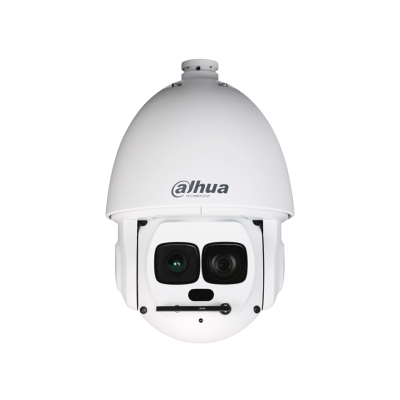

Dahua Technology WizMind SD6AL445XA-HNR security camera Turret IP security camera Indoor & outdoor
Dahua Technology

WizMind SD6AL445XA-HNR security camera Turret IP security camera Indoor & outdoor

2560 x 1440 pixels Ceiling

Model SD6AL445XA-HNREAN 6939554978333

78 specifications
  • Memory1000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight6.8 kg
  • Form factorTurret
  • Minimum illumination0.0005 lx
See all specifications

Overview

Memory
1000 MB
Connectivity
Wired
Type
IP security camera
Weight
6.8 kg
Form factor
Turret
Minimum illumination
0.0005 lx
Brand
Dahua Technology
Model
SD6AL445XA-HNR
Part number
SD6AL445XA-HNR
EAN / UPC
6939554978333
Also known as
Dahua Technology WizMind SD6AL445XA-HNR security camera Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling

Specifications

78 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes5 Pattern
Day/night modeYes
Alarm input/outputYes
CertificationCE: EN62368-1; EN55032; EN61000-3-2; EN61000-3-3; EN55024; EN55035; EN50130-4 FCC: 47 CFR FCC Part15, SubpartB, ClassA; ANSI C63.4: 2014

Design

Form factorTurret
Mounting typeCeiling
Housing materialMetal
International Protection (IP) codeIP67

Camera

Minimum illumination0.0005 lx
Tilt angle range-20 - 90°
Tilt manual speed0.1 - 120 °/sec
Tilt preset speed200 °/sec
Pan range0 - 360°
Pan manual speed0.1 - 200 °/sec
Pan preset speed240 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter speed1/1 s–1/30000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom45x
Digital zoom16x
Detect distance3554 m
Observe distance1421.6 m
Recognize distance710.8 m
Focal length range3.95–177.7
Auto focusYes
FocusManual
Identify distance355.4 m
Maximum aperture number4.9
Minimum aperture number1.6
Closest focusing distance0.01 m

Night vision

Night visionYes
Night vision distance550 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video compression formatsH.264+, H.264B, H.264H, H.264M, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440
Frame rate30 fps
Noise reductionYes
Noise reduction technology2D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 Kbps–20480 Kbps
Highlight Compensation (HLC)Yes

Audio

Voice codecsG.711, G.711Mu, G.722.1, G.723, G.726, G.729

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory1000 MB
ROM capacity4000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1

Security

Intelligent Video Surveillance (IVS) system featuresFace detection

Power

Power source typeDC, PoE
Power consumption (typical)20 W
Power consumption (max)36 W
DC output voltage36
DC output current2.23 A

Operational conditions

Operating temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Height382 mm
Diameter24 cm
Weight6.8 kg

Packaging data

Package weight9.2 kg

Packaging content

Number of cameras1
