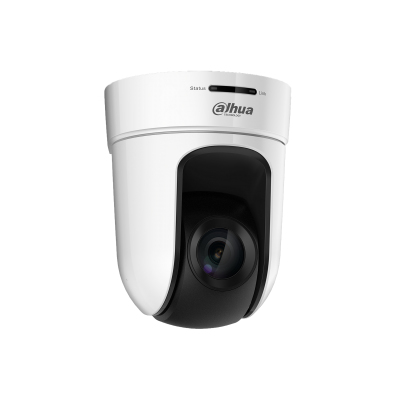

Dahua Technology SD56230V-HNI security camera Dome IP security camera
Dahua Technology

SD56230V-HNI security camera Dome IP security camera

1920 x 1080 pixels Ceiling

Model SD56230V-HNI

71 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight2.1 kg
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.005 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
2.1 kg
Colour
White
Form factor
Dome
Minimum illumination
0.005 lx
Brand
Dahua Technology
Model
SD56230V-HNI
Part number
SD56230V-HNI
Also known as
Dahua Technology SD56230V-HNI security camera Dome IP security camera 1920 x 1080 pixels Ceiling

Specifications

71 specifications in 15 groups

Performance

TypeIP security camera
Connectivity technologyWired
PTZ modes5 Pattern, 8 Tour, Auto scan, Auto pan
PTZ protocolsDH-SD, Pelco-P/D
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
CertificationCE FCC UL

Design

Form factorDome
Mounting typeCeiling
Product colourWhite

Camera

Minimum illumination0.005 lx
Tilt angle range-35 - 90°
Tilt speed120 °/sec
Pan range0 - 360°
Pan preset speed240 °/sec
Pan speed200 °/sec
Auto flipYes
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/1s~1/30,000

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom30x
Digital zoom16x
Focal length range4.5 - 135 mm
Auto focusYes
FocusManual
Maximum aperture number4.4
Minimum aperture number1.6
Closest focusing distance0.1 m

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported video modes720p, 1080p
Frame rate50 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction, Ultra 2D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.265/H.264: 256K ~ 8192Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Audio formats supportedAAC, G.711, G.722.1, G.726
Signal-to-Noise Ratio (SNR)55 dB

Network

Ethernet LANYes
Wi-FiYes
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Number of users20 user(s)
Streaming methodMulticast, Unicast

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1

Management features

Web-based managementYes
Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (typical)14 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-20 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height216 mm
Diameter16.4 cm
Weight2.1 kg

Packaging content

Number of cameras1
