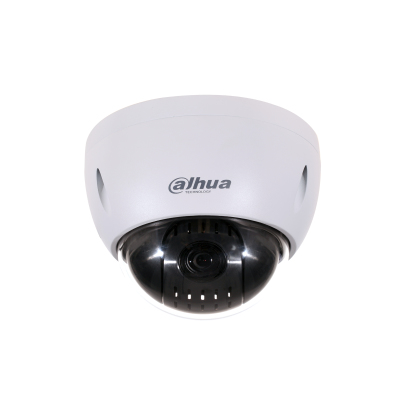

Dahua Technology HDCVI PTZ SD42215-HC-LA security camera Dome CCTV security camera Indoor & outdoor
Dahua Technology

HDCVI PTZ SD42215-HC-LA security camera Dome CCTV security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model SD42215-HC-LA

75 specifications
  • Memory256 MB
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight1.8 kg
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
256 MB
Connectivity
Wired
Type
CCTV security camera
Weight
1.8 kg
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
SD42215-HC-LA
Part number
SD42215-HC-LA
Also known as
Dahua Technology HDCVI PTZ SD42215-HC-LA security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

75 specifications in 17 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ protocolsPelco-P/D, DH-SD
Tour recordingYes
Day/night modeYes
Alarm input/outputYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
International Protection (IP) codeIP66
IK codeIK10
Fog proofYes

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0005 lx
Tilt angle range-2 - 90°
Tilt speed200 °/sec
Pan range0 - 360°
Pan preset speed300 °/sec
Pan speed300 °/sec
Auto flipYes
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Panoramic camera

White balance (panoramic camera)Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp

Lens system

Zoom capabilityYes
Optical zoom15x
Digital zoom16x
Detect distance1034 m
Observe distance409 m
Recognize distance205 m
Focal length range5 - 75 mm
Auto focusYes
FocusMotorized/Manual
Identify distance103 m
Maximum aperture number1.6
Minimum aperture number2.8
Closest focusing distance1 m

Night vision

Night visionNo

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Supported graphics resolutions704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate60 fps
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Image stabilizerYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio codecsG.711a; G.711Mu

Storage

Internal memory256 MB
ROM capacity16 MB

Ports & interfaces

RS-485 ports1
BNC output ports1

Security

Motion sensorYes

Power

Power source typeDC
Power consumption (typical)9.6 W
Power consumption (max)12 W
DC output voltage12
DC output current5 A

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Height155 mm
Diameter17 cm
Weight1.8 kg

Packaging data

Package weight3.3 kg

Packaging content

Number of cameras1
