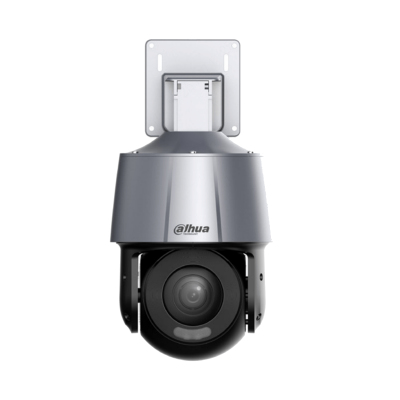

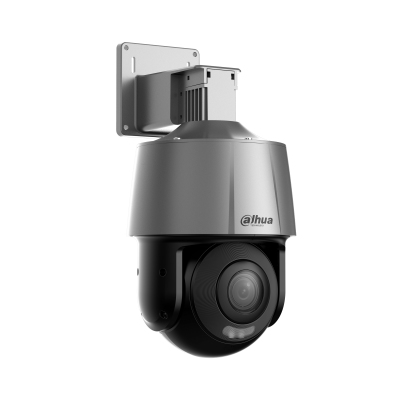

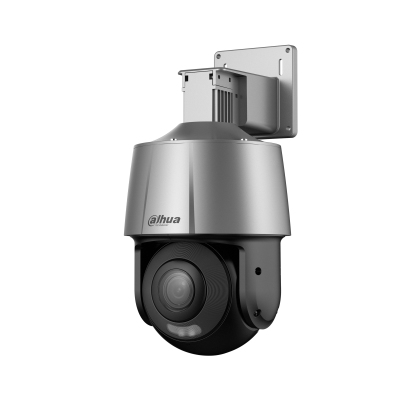

Dahua Technology SD3A400-GNP-B-PV Spherical IP security camera Indoor & outdoor
Dahua Technology

SD3A400-GNP-B-PV Spherical IP security camera Indoor & outdoor

2560 x 1440 pixels Ceiling/wall

Model SD3A400-GNP-B-PVPart no. DH-SD3A400-GNP-B-PVEAN 6923169700328

71 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight1 kg
  • ColourBlack, Grey
  • Form factorSpherical
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
1 kg
Colour
Black, Grey
Form factor
Spherical
Camera pan control
Yes
Brand
Dahua Technology
Model
SD3A400-GNP-B-PV
Part number
DH-SD3A400-GNP-B-PV
EAN / UPC
6923169700328
Also known as
Dahua Technology SD3A400-GNP-B-PV Spherical IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/wall

Specifications

71 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes

Design

Form factorSpherical
Mounting typeCeiling/wall
Product colourBlack, Grey
International Protection (IP) codeIP66

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.002 lx
Lens viewing angle, horizontal76.9°
Lens viewing angle, vertical41.8°
Lens viewing angle, diagonal92°
Tilt angle range-15 - 90°
Tilt speed43 °/sec
Pan range0 - 355°
Pan speed81 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Detect distance79.9 m
Observe distance31.9 m
Recognize distance15.7 m
Identify distance7.4 m
Maximum aperture number1
Fixed focal length4 mm

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video compression formatsH.264+, H.264B, H.264H, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 288, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Highlight Compensation (HLC)Yes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Bit rate range32 - 8192 Kbit/s

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP v1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB
ROM capacity256 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Video motion detectionYes

Management features

Web browserYes

Power

Power source typeDC, PoC
DC output voltage12
DC output current1.5 A

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)0 - 95 °C

Weight & dimensions

Width124.1 mm
Depth271.7 mm
Height142.5 mm
Weight1 kg

Packaging data

Package weight1.46 kg

Packaging content

Number of cameras1
ManualYes
