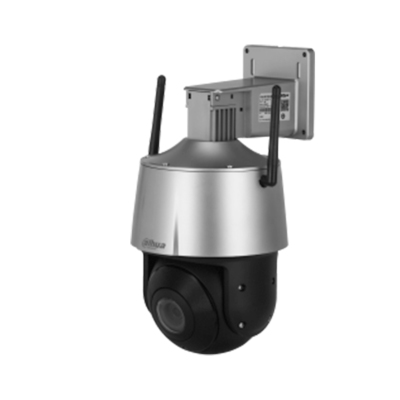

Dahua Technology SD3A200-GNP-W-PV security camera Spherical IP security camera Indoor & outdoor
Dahua Technology

SD3A200-GNP-W-PV security camera Spherical IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model SD3A200-GNP-W-PV

71 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight1 kg
  • ColourBlack, Grey
  • Form factorSpherical
  • Minimum illumination0.002 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
1 kg
Colour
Black, Grey
Form factor
Spherical
Minimum illumination
0.002 lx
Brand
Dahua Technology
Model
SD3A200-GNP-W-PV
Part number
SD3A200-GNP-W-PV
Also known as
Dahua Technology SD3A200-GNP-W-PV security camera Spherical IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

71 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014

Design

Form factorSpherical
Mounting typeCeiling/wall
Product colourBlack, Grey
International Protection (IP) codeIP66

Camera

Minimum illumination0.002 lx
Lens viewing angle, horizontal86.8°
Lens viewing angle, vertical45.9°
Lens viewing angle, diagonal102.4°
Tilt angle range-15 - 90°
Tilt manual speed0.1 - 56 °/sec
Tilt preset speed43 °/sec
Pan range0 - 355°
Pan manual speed0.1 - 880 °/sec
Pan preset speed81 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Street lamp
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")

Lens system

Number of lenses1
Detect distance55 m
Observe distance22 m
Recognize distance10.6 m
Focal length range4 mm
Identify distance4.6 m
Minimum aperture number1.6

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264+, H.264B, H.264H, H.264M, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate30 fps
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels

Network

Ethernet LANYes
Wi-FiYes
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; 802.1x; QoS; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; SNMP v1/v2c/v3 (MIB-2); RTCP; RTMP
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Flash memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Active tampering alarmYes
Video motion detectionYes

Management features

Web browserYes

Power

Power source typeDC, PoC
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width142.3 mm
Depth236.3 mm
Height139.6 mm
Weight1 kg

Packaging data

Package weight1.46 kg

Packaging content

Number of cameras1
ManualYes
