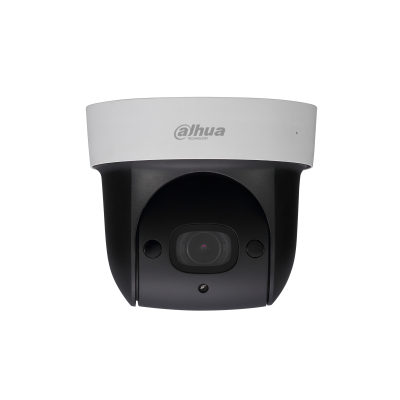

Dahua Technology SD29204T-GN-W security camera Dome IP security camera
Dahua Technology

SD29204T-GN-W security camera Dome IP security camera

1920 x 1080 pixels Ceiling

Model SD29204T-GN-WEAN 6939554942693

77 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight950 g
  • ColourBlack
  • Form factorDome
  • Minimum illumination0.05 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
950 g
Colour
Black
Form factor
Dome
Minimum illumination
0.05 lx
Brand
Dahua Technology
Model
SD29204T-GN-W
Part number
SD29204T-GN-W
EAN / UPC
6939554942693
Also known as
Dahua Technology SD29204T-GN-W security camera Dome IP security camera 1920 x 1080 pixels Ceiling

Specifications

77 specifications in 17 groups

Performance

TypeIP security camera
Connectivity technologyWired
PTZ modes5 Pattern, 8 Tour, Auto scan, Auto pan
PTZ protocolsDH-SD
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE FCC UL

Design

Form factorDome
Mounting typeCeiling
Product colourBlack
Fog proofYes

Camera

Minimum illumination0.05 lx
Tilt angle range0 - 90°
Tilt speed60 °/sec
Pan range0 - 360°
Pan preset speed100 °/sec
Pan speed100 °/sec
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/1s~1/30,000

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom4x
Digital zoom16x
Focal length range2.7 - 11 mm
Auto focusYes
FocusManual
Maximum aperture number1.6
Closest focusing distance0.1 m

Night vision

Night visionYes
Night vision distance30 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, M-JPEG
Supported video modes720p, 1080p
Frame rate25 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction, Ultra 2D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264+/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Audio formats supportedG.711, PCM
Signal-to-Noise Ratio (SNR)50 dB
Built-in microphoneYes

Network

Ethernet LANYes
Wi-FiYes
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

ROM capacity128 MB

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Intrusion, Missing object, Tripwire

Management features

Web-based managementYes
Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC
Power consumption (typical)10 W
Power consumption (max)13 W
DC output voltage12
DC output current1.5 A

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 90%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height117.9 mm
Diameter13.3 cm
Weight950 g

Packaging content

Number of cameras1
