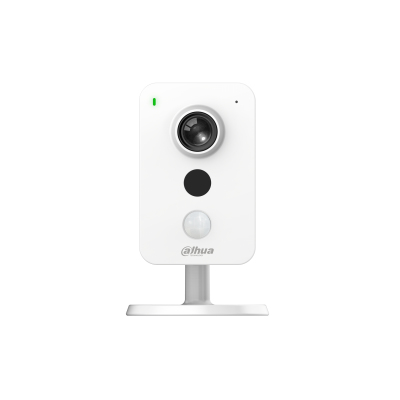

Entry K22A IP security camera Indoor
1920 x 1080 pixels Desk
Model K22APart no. IPC-K22A
73 specifications
- Memory128 MB
- ConnectivityWired
- TypeIP security camera
- Weight170 g
- ColourWhite
- Mounting typeDesk
Overview
- Memory
- 128 MB
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 170 g
- Colour
- White
- Mounting type
- Desk
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- K22A
- Part number
- IPC-K22A
- Also known as
- Dahua Technology Entry K22A IP security camera Indoor 1920 x 1080 pixels Desk
Specifications
73 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Certification | CE-LVD: EN62368-1, CE-EMC, 2014/30/EU, FCC: 47 CFR FCC Part 15, Subpart B |
Design
| Specification | Value |
|---|---|
| Mounting type | Desk |
| Product colour | White |
| Housing material | Plastic |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Field of view (FOV) angle | 102° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| White balance | Auto, Custom modes, Natural, Outdoor |
| Camera shutter speed | 1/3 - 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Detect distance | 38.6 m |
| Observe distance | 15.4 m |
| Recognize distance | 7.7 m |
| Lens diameter | 2.8 mm |
| Fixed focus | Yes |
| Identify distance | 3.9 m |
| Maximum aperture number | 2 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 10 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264, H.265, M-JPEG |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | AAC, G.711 |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Supported network protocols | HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, IPv4/v6, QoS, NTP |
| Number of users | 20 user(s) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| Maximum memory card size | 256 GB |
| Internal memory | 128 MB |
| ROM capacity | 128 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Mirror | Yes |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Web browser | Yes |
| Management software | DMSS |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 2.9 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 45 °C |
| Storage temperature (T-T) | -40 - 60 °C |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90.5 mm |
| Depth | 78.5 mm |
| Height | 127.8 mm |
| Weight | 170 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 270 g |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
