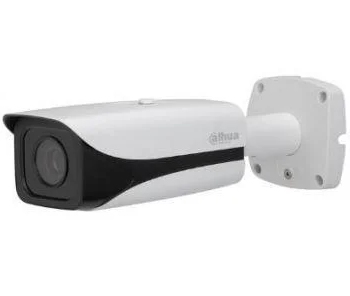

ITC237-PW1B-IRZ security camera Bullet IP security camera Indoor & outdoor
1920 x 1080 pixels Ceiling/wall
Model ITC237-PW1B-IRZEAN 6939554939945
72 specifications
- ConnectivityWired
- TypeIP security camera
- Weight1.12 kg
- ColourBlack, White
- Form factorBullet
- Minimum illumination0.005 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 1.12 kg
- Colour
- Black, White
- Form factor
- Bullet
- Minimum illumination
- 0.005 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- ITC237-PW1B-IRZ
- Part number
- ITC237-PW1B-IRZ
- EAN / UPC
- 6939554939945
- Also known as
- Dahua Technology ITC237-PW1B-IRZ security camera Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall
Specifications
72 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Alarm input/output | Yes |
| Remote viewing | Yes |
| Certification | CE, FCC |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/wall |
| Product colour | Black, White |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Weatherproof | Yes |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.005 lx |
| Lens viewing angle, horizontal | 101° |
| Lens viewing angle, vertical | 53° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Focal length range | 2.7 - 12 mm |
| Auto focus | Yes |
| Maximum aperture number | 1.6 |
| Closest focusing distance | 3 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 8 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.264, H.265 |
| Supported graphics resolutions | 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Bit rate | 32 - 16384 Kbps |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) | Yes |
| Text caption overlay | Yes |
| Time stamp overlay | Yes |
Audio
| Specification | Value |
|---|---|
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3af |
| Supported network protocols | IPv4/IPv6, HTTP, TCP/IP, UDP, NTP, DHCP, DNS |
| Number of users | 20 user(s) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 64 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 12 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 273.3 mm |
| Depth | 94.8 mm |
| Height | 94.8 mm |
| Weight | 1.12 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
