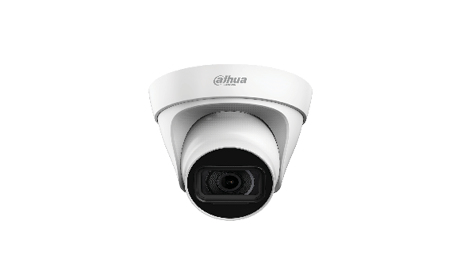

Dahua Technology Ez-Ip IPC-T1B20-L security camera Dome IP security camera Indoor & outdoor
Dahua Technology

Ez-Ip IPC-T1B20-L security camera Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model IPC-T1B20-L

81 specifications
  • Memory64 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight240 g
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
64 MB
Connectivity
Wired
Type
IP security camera
Weight
240 g
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
IPC-T1B20-L
Part number
IPC-T1B20-L
Also known as
Dahua Technology Ez-Ip IPC-T1B20-L security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

81 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Day/night modeYes
CertificationCE: (EN 60950:2000) FCC: FCC Part 15 Subpart B

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal115°
Lens viewing angle, vertical60°
Tilt angle range0 - 90°
Pan range0 - 360°
White balanceAuto, Lamp, Manual, Natural, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Zoom capabilityYes
Digital zoom16x
Maximum aperture number2
Closest focusing distance0.5 m
Fixed focal length2.8 mm

Night vision

Night visionYes
Night vision distance30 m
LED typeIR

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate32K ~ 8192K
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsHTTP; TCP; ARP; RTSP; RTP; RTCP; UDP; DHCP; DNS; IPV4; NTP; Multicas; ICMP; TLS
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Flash memory16 MB
Internal memory64 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Motion sensorYes
Privacy protectionYes

Management features

Web browserYes
Management softwareSmart PSS, DSS, DMSS

Power

Power source typeDC, PoE
Power consumption (max)4.2 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-30 - 60 °C

Weight & dimensions

Height85.5 mm
Diameter10.9 cm
Weight240 g

Packaging data

Package weight360 g

Packaging content

Number of cameras1
