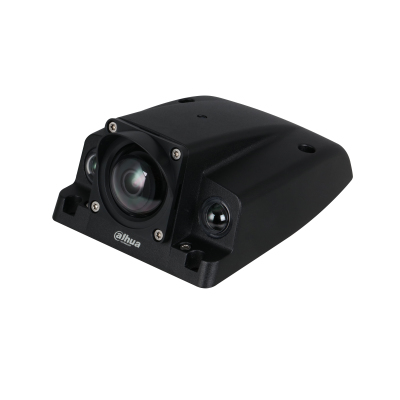

Dahua Technology Mobile Camera IPC-MBW4231-AS/M12 security camera Bullet IP security camera Indoor & outdoor
Dahua Technology

Mobile Camera IPC-MBW4231-AS/M12 security camera Bullet IP security camera Indoor & outdoor

1920 x 1080 pixels

Model IPC-MBW4231-AS/M12

71 specifications
  • Memory32 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight590 g
  • ColourBlack
  • Form factorBullet
See all specifications

Overview

Memory
32 MB
Connectivity
Wired
Type
IP security camera
Weight
590 g
Colour
Black
Form factor
Bullet
Brand
Dahua Technology
Model
IPC-MBW4231-AS/M12
Part number
IPC-MBW4231-AS/M12
Also known as
Dahua Technology Mobile Camera IPC-MBW4231-AS/M12 security camera Bullet IP security camera Indoor & outdoor 1920 x 1080 pixels

Specifications

71 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B E-mark(ECE-Regulation No.10) EN50155(Environment)

Design

Form factorBullet
Product colourBlack
Housing materialMetal
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0 lx
Lens viewing angle, horizontal110°
Lens viewing angle, vertical58°
Lens viewing angle, diagonal131°
White balanceAuto, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Focal length range28 mm
Detect distance (wide)2.8 m
Identify distance (wide)9 m
Observe distance (wide)44 m
Recognize distance (wide)17 m

Night vision

Night visionYes
Night vision distance50 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution1920 x 1080 pixels
Video formats supportedH.264, H.265, H.265+
Video streamingYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate24~10240Kbps, 14~9984Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3af
Supported network protocolsHTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory32 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

MirrorYes

Power

Power source typeDC, PoE
Power consumption (max)6.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 70 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width112.9 mm
Height69.4 mm
Length140.6 mm
Weight590 g

Packaging data

Package weight800 g

Packaging content

Number of cameras1

Other features

Browser supportedIE: IE8, IE9, IE11 Chrome Firefox
