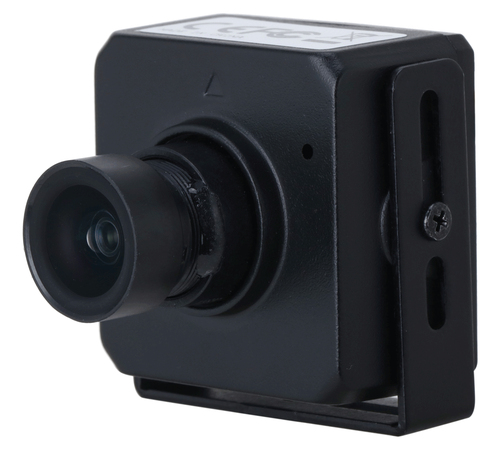

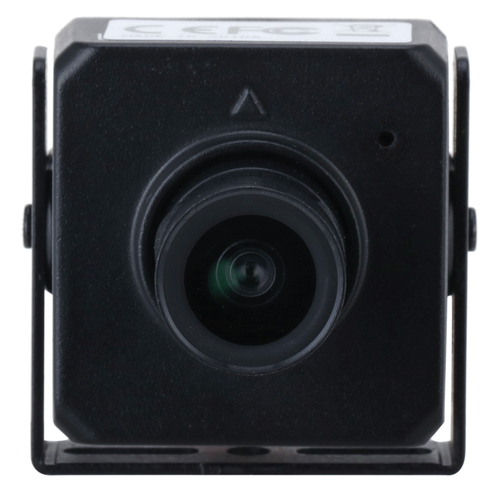

Dahua Technology Pinhole IPC-HUM4431S-L5 security camera Cube IP security camera Indoor
Dahua Technology

Pinhole IPC-HUM4431S-L5 security camera Cube IP security camera Indoor

2688 x 1520 pixels Ceiling/Desk

Model IPC-HUM4431S-L5EAN 6923172536532

76 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight81 g
  • ColourBlack
  • Form factorCube
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
81 g
Colour
Black
Form factor
Cube
Brand
Dahua Technology
Model
IPC-HUM4431S-L5
Part numbers
IPC-HUM4431S-L5, IPC-HUM4431S-L5-0280B
EAN / UPC
6923172536532
Also known as
Dahua Technology Pinhole IPC-HUM4431S-L5 security camera Cube IP security camera Indoor 2688 x 1520 pixels Ceiling/Desk

Specifications

76 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE-LVD:EN62368-1; CE-EMC:Electromagnetic Compatibility Directive 2014/30/EU; 2.8 mm/3.6 mm: FCC:47 CFR FCC Part 15, Subpart B

Design

Form factorCube
Mounting typeCeiling/Desk
Product colourBlack
Housing materialMetal

Camera

Minimum illumination0.001 lx
Angle of rotation270°
Lens viewing angle, horizontal129°
Lens viewing angle, vertical69°
Lens viewing angle, diagonal154°
White balanceAuto, Custom modes, Manual, Natural, Outdoor, Street lamp
Camera shutter speed1/3 - 1/100000 s
Number of Privacy masking areas4

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Detect distance50.6 m
Observe distance20.2 m
Recognize distance10.1 m
Focal length range2 - 2.8 - 3.6 - 8 mm
Fixed focusYes
Identify distance5.1 m
Maximum aperture number1.6
Closest focusing distance0.8 m

Night vision

Night visionYes

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.264B, H.265, H.265+, M-JPEG
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate3 kbps–6144 kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Signal-to-Noise Ratio (SNR)56 dB
Built-in microphoneYes
Voice codecsG.711Mu, G.711a, G.726, PCM
Audio detectionYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour

Storage

ROM capacity128 MB
RAM capacity128 MB

Ports & interfaces

InterfaceRJ-45

Security

Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmartPSS Lite; DSS; DMSS

Power

Power source typeDC
Power consumption (typical)1.4 W
Power consumption (max)1.8 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Storage temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width31 mm
Depth31 mm
Height37.1 mm
Weight81 g

Packaging data

Package weight138 g

Packaging content

Number of cameras1

Technical details

Audio input1x RCA

Other features

Audio output1x RCA
Data transfer rate100 Mbit/s
